P
RODUCT
B
RIEF
Interworking Controller Next Generation
The IWORX-P, a further member of Infineon鈥檚
interworking family, is a flexible communication
network controller. It functions as an interwork-
ing element enabling the transport of the ATM
traffic over PDH based networks. It is found in 3 G
mobile infrastructure as well as in WAN Routers
or multiservice applications. The IWORX-P sup-
ports all features of Infineon鈥檚 established IWE-8
but integrates IMA, Microcontroller (e.g. for OAM
functionality) and RAM additionally. It is support-
ing the adaptation of voice and video traffic via
AAL 1 in line card applications with speeds of up
to 16 Mbit/s. Shared location of 2 G and 3 G
mobile networks for easy network migration path
is enabled via AAL1 and CES. Being a system on
a chip with integrated memory and controlled via
high-level command interface (API), the IWORX-P
is the optimized solution in terms of ease of use,
space & power economy.
Applications
鈻?/div>
3 G base transceiver stations
(Node B) and radio network
controller (RNC)
鈻?/div>
Multiservice Linecards
鈻?/div>
Multimedia Gateways
鈻?/div>
DSLAM/DLC Uplink Cards
鈻?/div>
WAN Routers
Features
ATM Adaptation Layer Functions
鈻?/div>
AAL1 mode (ITU-T I.363-1)
- Channelized and unchannelized
Circuit Emulation Service (CES)
(ATMF AF-VTOA 0078.000)
- Support of Channel Associated
Signaling (CAS)
- Support of up to 256 AAL1 ATM
connections
- Built in SRTS and ACM clock
recovery methods
ATM Layer Functions
鈻?/div>
ATM OAM Fault Management
according to ITU-T I.610 (99)
- Alarm Indication Signal (AIS)
- Remote Defect Indication (RDI)
- Continuity Check (CC)
鈻?/div>
Address Reduction & Header
Translation
Transmission Convergence
Sublayer Functions
鈻?/div>
ATM TC sublayer (ITU-T G.804)
鈻?/div>
ATM cell mapping on fractional
E1/T1/J1 (AF-PHY-0130.00)
鈻?/div>
IMA (ATMF AF-PHY 0086.000/
AF-PHY 0086.001)
鈻?/div>
4 IMA groups for up to 8 links
鈻?/div>
25 ms differential link delay
com-pensation for IMA on chip
General Features
鈻?/div>
Up to 16 Mbit/s datarate
throughput
鈻?/div>
Easy device configuration via
Message Based Interface
鈻?/div>
On chip memory and CPU for
device configuration and
operation
鈻?/div>
System recovery support via
read-back of configuration and
connection data
鈻?/div>
Power consumtion less than 2 W
鈻?/div>
Power supply 3.3 V I/Os,
1.8 V core
鈻?/div>
Temperature range
-40擄C to +85擄C
鈻?/div>
Package P-BGA-388
w w w . i n f i n e o n . c o m / i w o r x

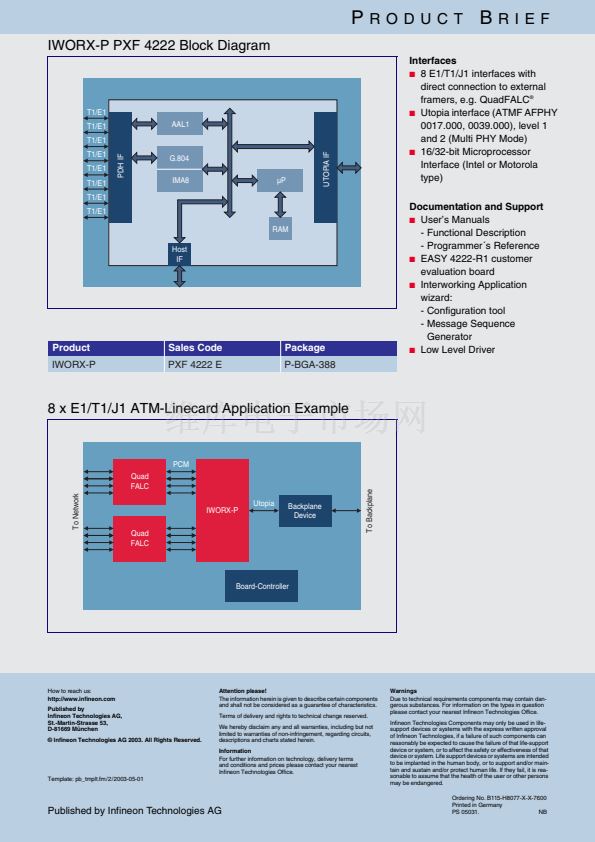

IWORX-P
ATM Interworking Controller
PXF 4222
N e v e r
s t o p
t h i n k i n g .
