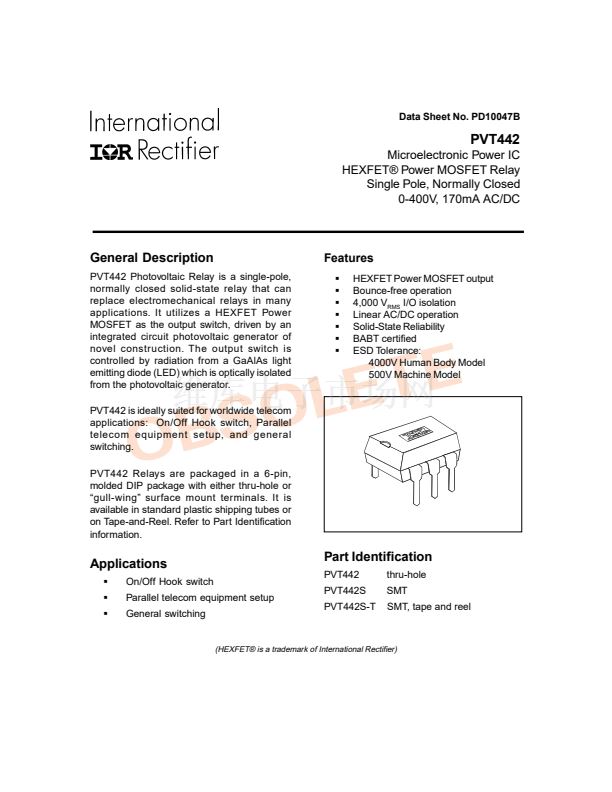

Data Sheet No. PD10047B

PVT442

Microelectronic Power IC

HEXFET廬 Power MOSFET Relay

Single Pole, Normally Closed

0-400V, 170mA AC/DC

General Description

PVT442 Photovoltaic Relay is a single-pole,

normally closed solid-state relay that can

replace electromechanical relays in many

applications. It utilizes a HEXFET Power

MOSFET as the output switch, driven by an

integrated circuit photovoltaic generator of

novel construction. The output switch is

controlled by radiation from a GaAlAs light

emitting diode (LED) which is optically isolated

from the photovoltaic generator.

PVT442 is ideally suited for worldwide telecom

applications: On/Off Hook switch, Parallel

telecom equipment setup, and general

switching.

Features

摟

HEXFET Power MOSFET output

Bounce-free operation

4,000 V

RMS

I/O isolation

Linear AC/DC operation

Solid-State Reliability

BABT certified

ESD Tolerance:

4000V Human Body Model

500V Machine Model

PVT442 Relays are packaged in a 6-pin,

molded DIP package with either thru-hole or

鈥済ull-wing鈥?surface mount terminals. It is

available in standard plastic shipping tubes or

on Tape-and-Reel. Refer to Part Identification

information.

Part Identification

PVT442

PVT442S

PVT442S-T

thru-hole

SMT

Applications

摟

On/Off Hook switch

Parallel telecom equipment setup

General switching

SMT, tape and reel

(HEXFET廬 is a trademark of International Rectifier)

現有數量
0現貨
價格
停產
系列
PVT, HEXFET?
包裝
卷帶（TR）
產品狀態
停產
安裝類型
表面貼裝型
電路
SPST-NC（1 Form B）
輸出類型
AC，DC
電壓 - 輸入
1.2VDC
電壓 - 負載
0 V ~ 400 V
負載電流
170 mA
導通電阻（最大值）
16 Ohms
端接樣式
鷗翼
封裝/外殼
6-SMD（0.300"，7.62mm）
供應商器件封裝
6-SMT
