4M x 32 FLASH MODULE
PUMA 84F128006 - 90/12/15
11403 West Bernado Court, Suite 100, San Diego, CA 92127.
Tel No: (619) 674 2233, Fax No: (619) 674 2230
Issue 1.0 : May 1999
Features
鈥?Access times of 90/120/150 ns.
鈥?Very High Density Package
鈥?JEDEC 84 'J' leaded plastic Surface Mount
Package.
鈥?Single 5.0 V鹵10% Power supply.
鈥?User Configurable as 8/16/32 bit wide output.
鈥?Operating Power
(32-BIT)1.375 W (max)
Low Power Standby CMOS 66 mW (max)
鈥?Flexible Sector (64K Byte) Architecture.
鈥?Embedded Algorithms.
鈥?Multiple ground pins for maximum noise
immunity.
Pin Definition
NC
RESET
D16
A18
A17
CS4
CS3
CS2
CS1
NC
VCC
CS8
CS7
CS6
CS5
OE
WE
A16
A15
A14
D15
Description
The PUMA F128006 is a 128Mbit FLASH (5V)
Module organised as 4M x 32 in a JEDEC 84 pin
surface mount J-leaded PLCC, available with ac-
cess times of 90, 120, and 150ns. The output width
is user configurable as 8, 16 or 32 bits using eight
Chip Selects (CS1~8).
The PUMA 84F128006 offers a dramatic
saving advantage over eight standard
FLASH devices. 5V Program / Erase
technology is utilised to simplify the in
programming procedure.
space
2Mx8
Flash
circuit
Block Diagram
A0 ~A20
WE
OE
RESET
2M x 8
FLASH
11 10 9
8
7
6
5
4
3
2
1 84 83 82 81 80 79 78 77 76 75
74
73
72
71
70
69
68
D0 ~ 7
CS1
2M x 8
FLASH
D0 ~ 7
CS5
2M x 8
FLASH
D8 ~ 15
CS2
2M x 8
FLASH
D8 ~ 15
CS6
2M x 8
FLASH
D16 ~ 23
CS3
2M x 8
FLASH
D16 ~ 23
CS7
2M x 8
FLASH
D24 ~ 31
CS4
2M x 8
FLASH
D24 ~ 31
CS8
NC
NC
D17
D18
D19
GND
D20
D21
D22
D23
VCC
D24
D25
D26
D27
GND
D28
D29
D30
NC
NC
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53
PUMA 84F128006
VIEW
FROM
ABOVE
67
66
65
64
63
62
61
60
59
58
57
56
55
54
NC
NC
D14
D13
D12
GND
D11
D10
D9
D8
VCC
D7
D6
D5
D4
GND
D3
D2
D1
NC
NC
Pin Functions
Address Inputs
Data Input/Output
Chip Select
Write Enable
Output Enable
Reset
No Connect
Power (+5V)
Ground
A0 ~ A20
D0 ~ D31
CS1 ~ 8
WE
OE
RESET
NC
V
CC
GND

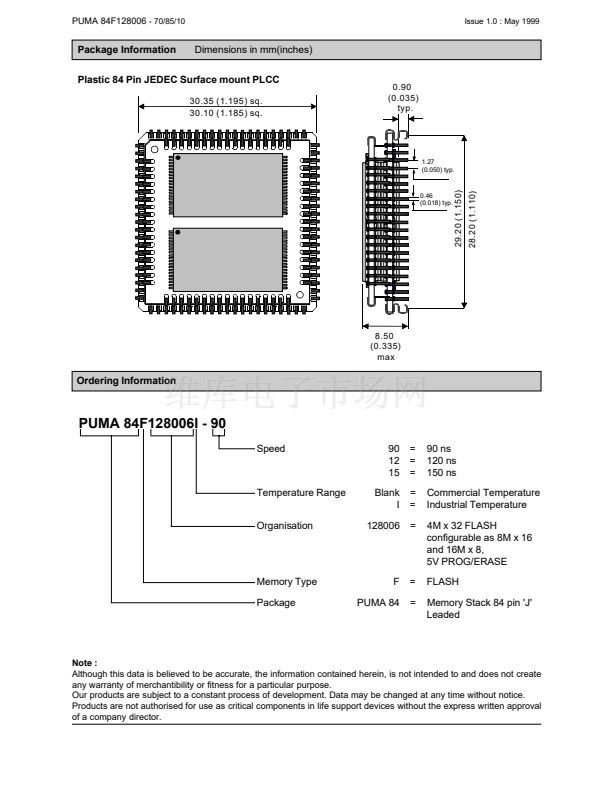

Package Details
Plastic 84 J-Leaded JEDEC PLCC
NC
A19
D31
A6
A5
A4
A3
A2
A1
A0
VCC
A13
A12
A11
A10
A9
A8
A7
D0
A20
NC
1
2
