2M x 32 FLASH MODULE

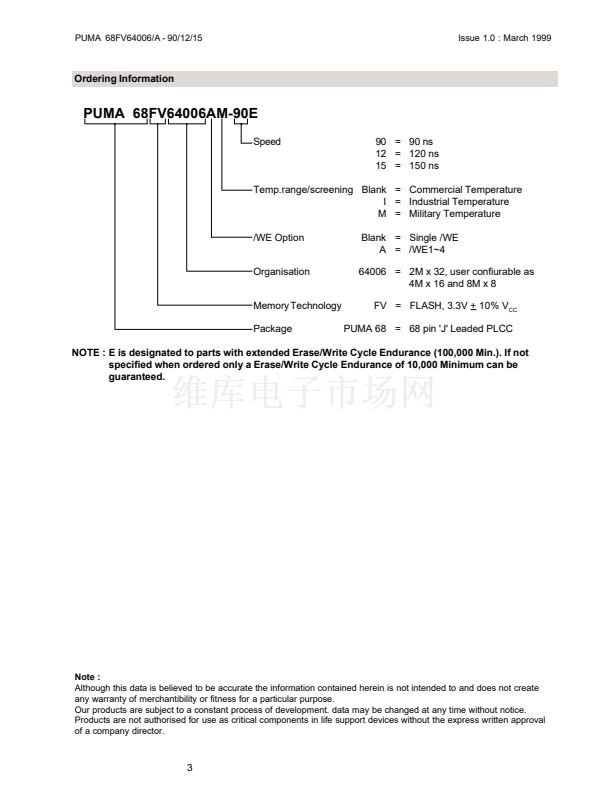

PUMA 68FV64006/A - 90/12/15
Elm Road, West Chirton, NORTH SHIELDS, Tyne & Wear
NE29 8SE, England Tel. +44 (0191) 2930500 Fax. +44 (0191) 2590997
Issue 2.0 : February 2000
Description
The PUMA 68FV64006 is a high density 64 MBit
CMOS 3.3V ONLY FLASH memory module in a
JEDEC 68 pin surface mount PLCC, with read access
times of 90, 120 and 150ns. The plastic device is
screened in to ensure high reliability.
The device is capable of 10,000 Write/Erase cycles
and has 10 year data retention.
Features
64 Megabit FLASH module.
3.3V + 10% Supply Voltage
Fast Access Times of 90/120/150 ns.
Output Configurable as 32 / 16 / 8 bit wide.
Industrial, Military Temperature Grade.
Erase/Write Cycle Endurance 100,000 (Min.) -
E variant.
鈥?10 year data retention.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Block Diagram
PUMA 68FV64006
Block Diagram
PUMA 68FV64006A
A0~A20
/RESET
A0~A20
/RESET
/OE
/WE
/OE
/WE4
/WE3
/WE2
/WE1
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
2M x 8
FLASH
/CS1
/CS2
/CS3
/CS4
D0~7
D8~15
D16~23
D24~31
/CS1
/CS2
/CS3
/CS4
D0~7
D8~15
D16~23
D24~31

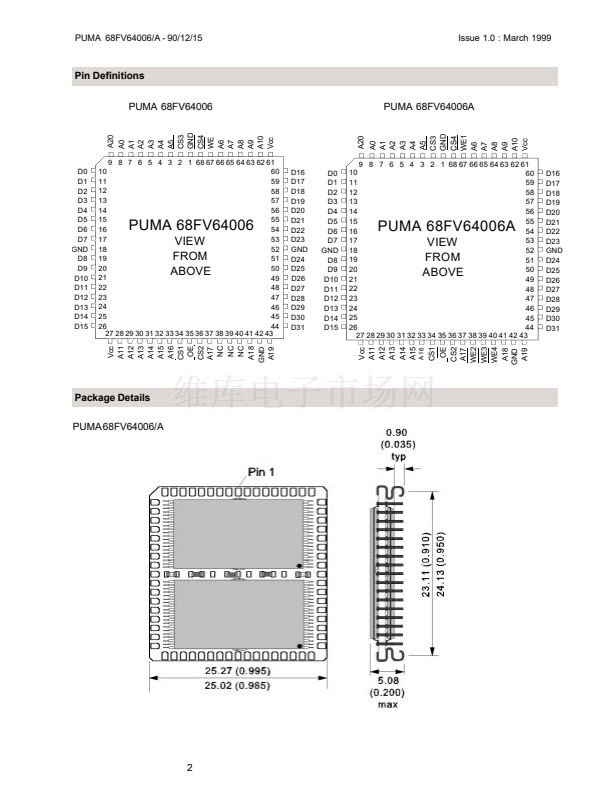

Pin Functions
A0~A20
D0~D31
/WE1~4
Vcc
Address Input
Data Inputs/Outputs
Write Enable
Power (+5V)
/RESET
/CS1~4
/OE
GND
Not connected
Chip Selects
Output Enable
Ground
