PT2560-002 Datasheet

  • PT2560-002

  • Infrared Remote Control Transmitter

  • 18頁

  • PTC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Princeton Technology Corp.
Infrared Remote Control Transmitter
Description
Tel: 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw

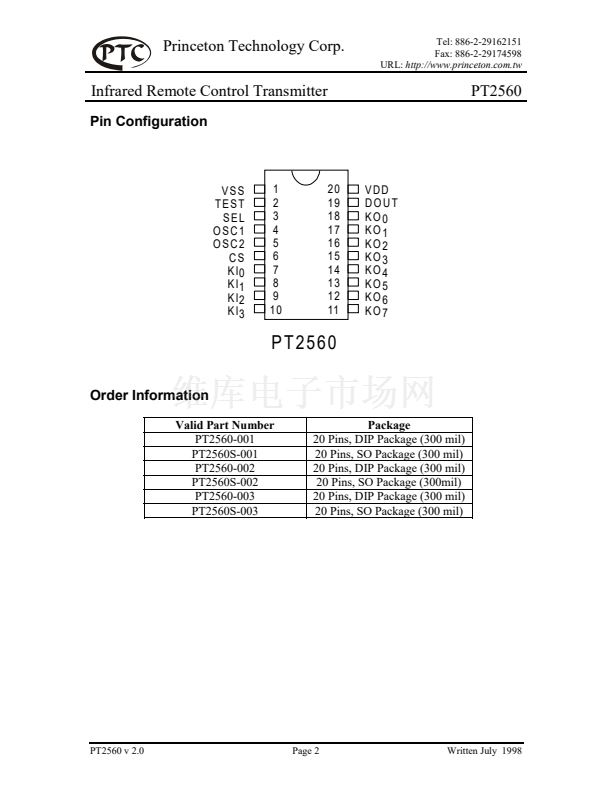

PT2560
PT2560 is an infrared remote control transmitter utilizing CMOS technology housed in a
20-pin DIP or SO package. A 4 x 8 key matrix and extension bit inputs allow the

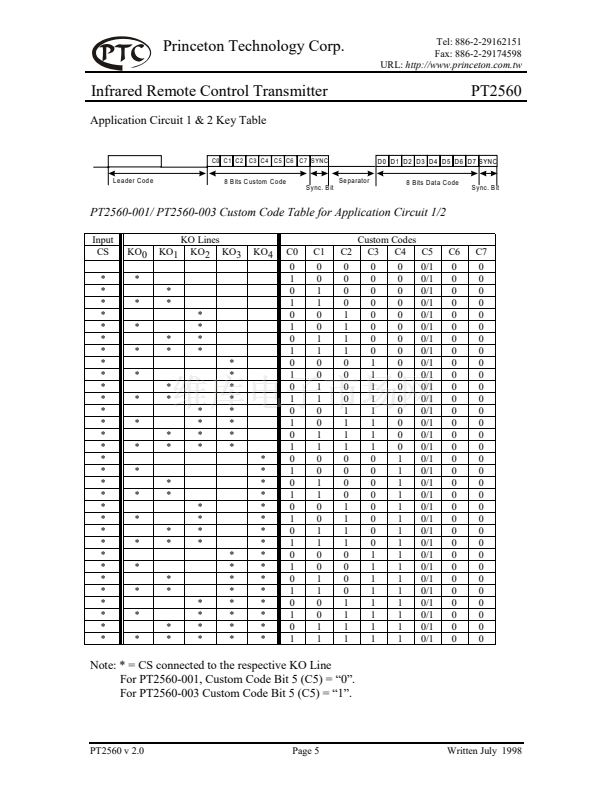

transmission of up to 256 instructions. The transmission code consists of 16 bits code (8
bits custom code and 8 bits data code) and a leader code. PT2560 is functionally
compatible with M50560. However, there is a slight difference in their application

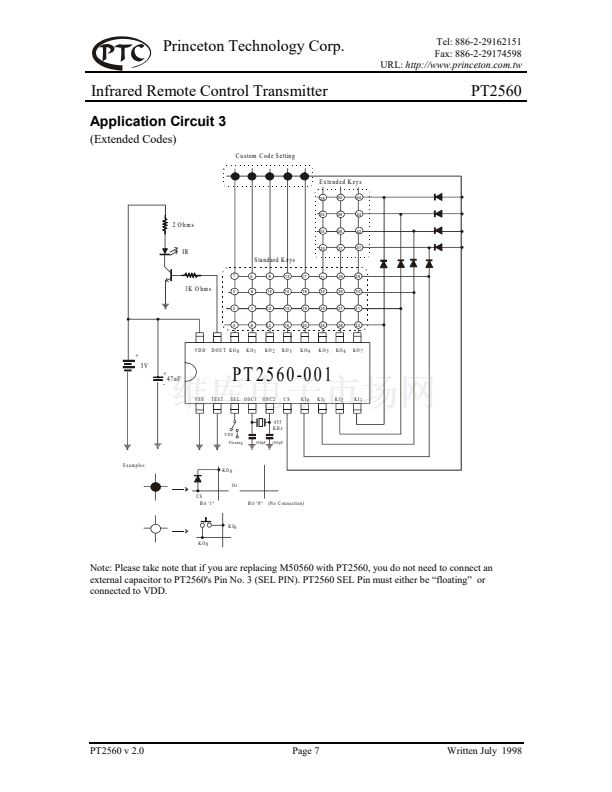

circuits. If you are to replace M50560 with PT2560, you do not need to connect an
external capacitor to Pin No.3 (SEL Pin).

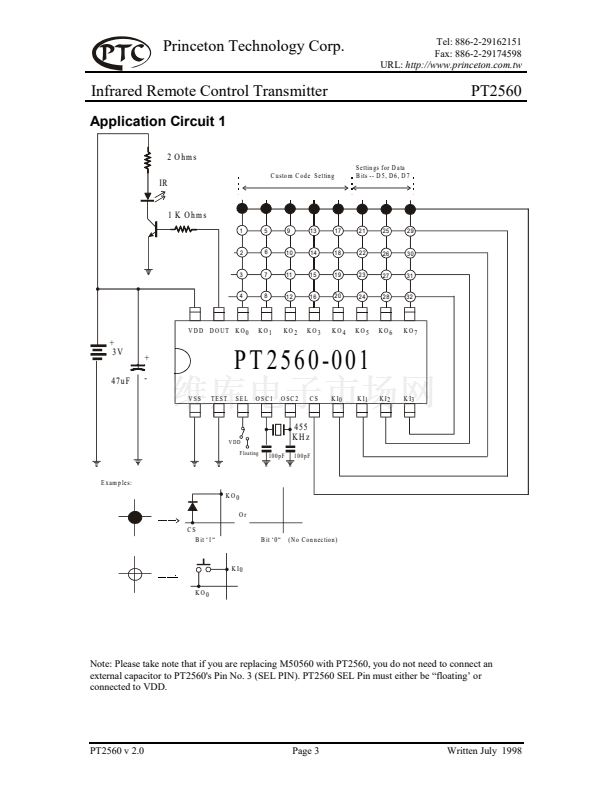

Pin assignments and application circuit of PT2560 are optimized for easy PCB layout
and cost saving advantage for remote control applications.
Features
!
!
!
!
CMOS Technology
Low Power Consumption: 2.0 ~ 4.0 V
Least External Components
LED Power Dissipation is less during the transmission of instructions
Applications
!
!
!
!
Audio Equipment
Television
Video Cassette Recorder
Air Conditioner
PT2560 v 2.0
Page 1
Written July 1998
