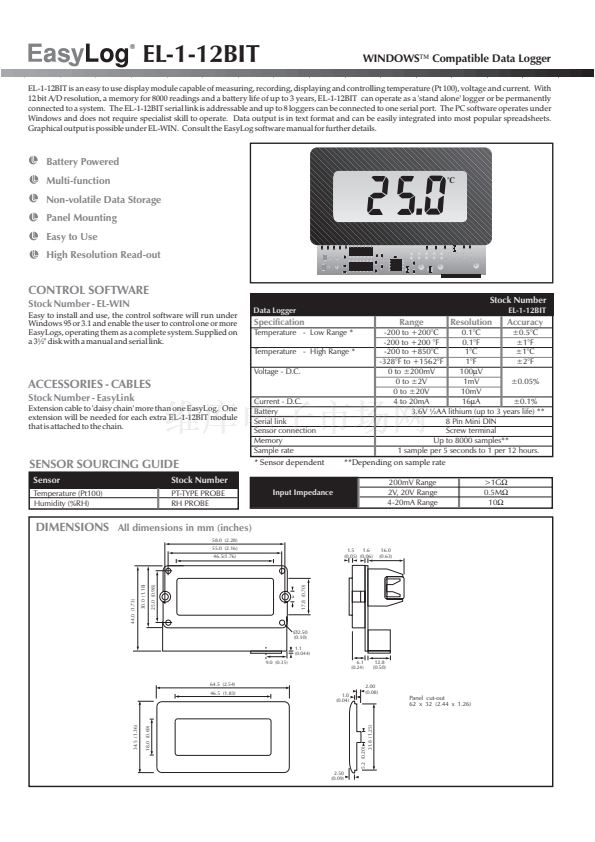

Compatible Data Logger
EL-1-12BIT is an easy to use display module capable of measuring, recording, displaying and controlling temperature (Pt 100), voltage and current. With
12 bit A/D resolution, a memory for 8000 readings and a battery life of up to 3 years, EL-1-12BIT can operate as a 'stand alone' logger or be permanently
connected to a system. The EL-1-12BIT serial link is addressable and up to 8 loggers can be connected to one serial port. The PC software operates under
Windows and does not require specialist skill to operate. Data output is in text format and can be easily integrated into most popular spreadsheets.
Graphical output is possible under EL-WIN. Consult the EasyLog software manual for further details.
Battery Powered
Multi-function
Non-volatile Data Storage
Panel Mounting
Easy to Use
High Resolution Read-out
擄
C
CONTROL SOFTWARE
Stock Number - EL-WIN
Easy to install and use, the control software will run under
Windows 95 or 3.1 and enable the user to control one or more
EasyLogs, operating them as a complete system. Supplied on
a 3錕?frac12;" disk with a manual and serial link.
Data Logger
Stock Number
-200 to +200擄C
0.1擄C
鹵0.5擄C
-200 to +200 擄F
0.1擄F
鹵1擄F
-200 to +850擄C
1擄C
鹵1擄C
-328擄F to +1562擄F
1擄F
鹵2擄F
0 to 鹵200mV
100
碌
V
0 to 鹵2V
1mV
鹵0.05%
0 to 鹵20V
10mV
4 to 20mA
16
碌
A
鹵0.1%
3.6V 錕?frac12;AA lithium (up to 3 years life) **
8 Pin Mini DIN
Screw terminal
Up to 8000 samples**
1 sample per 5 seconds to 1 per 12 hours.
Specification
Temperature - Low Range *
Temperature - High Range *
Voltage - D.C.
Current - D.C.
Battery
Serial link
Sensor connection
Memory
Sample rate
* Sensor dependent
Input Impedance
Range
Resolution
Accuracy
EL-1-12BIT
ACCESSORIES - CABLES
Stock Number - EasyLink
Extension cable to 'daisy chain' more than one EasyLog. One
extension will be needed for each extra EL-1-12BIT module
that is attached to the chain.
SENSOR SOURCING GUIDE
Sensor
Temperature (Pt100)
Humidity (%RH)
**Depending on sample rate
200mV Range
2V, 20V Range
4-20mA Range
>1G
鈩?/div>
0.5M
鈩?/div>
10
鈩?/div>
Stock Number
PT-TYPE PROBE
RH PROBE
DIMENSIONS
All dimensions in mm (inches)
58.0 (2.28)
55.0 (2.16)
46.5(1.76)
1.5
1.6
(0.05) (0.06)
16.0
(0.63)
30.0 (1.18)
25.0 (0.98)
44.0 (1.73)
a
脴2.50
(0.10)
1.1
(0.044)
17.8 (0.70)
9.0 (0.35)
6.1
(0.24)
12.8
(0.50)
2.00
(0.08)
64.5 (2.54)
46.5 (1.83)
1.0
(0.04)
Panel cut-out
62 x 32 (2.44 x 1.26)
2.50
(0.09)
5.2 (0.20)
31.8 (1.25)
34.5 (1.36)
18.0 (0.69)
