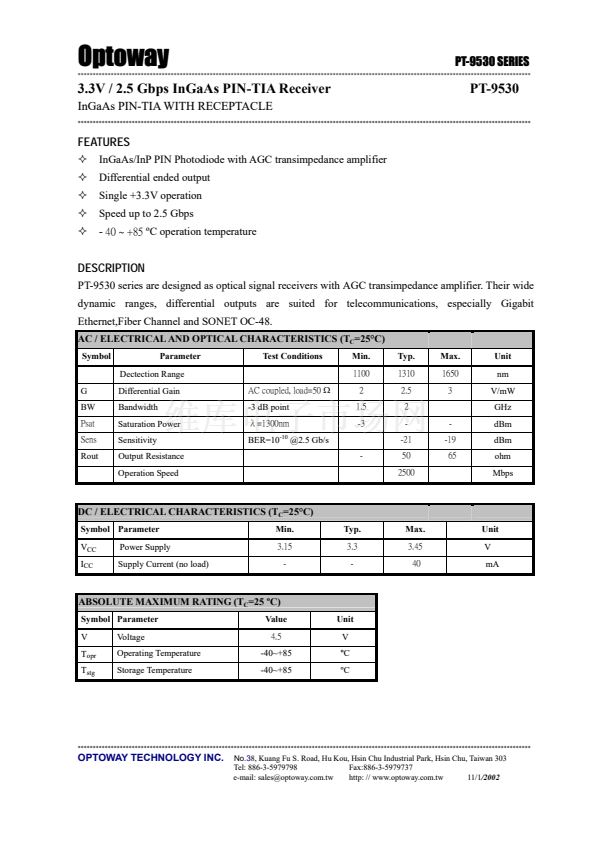

Optoway
3.3V / 2.5 Gbps InGaAs PIN-TIA Receiver
InGaAs PIN-TIA WITH RECEPTACLE
FEATURES
!
!
!
!
!
InGaAs/InP PIN Photodiode with AGC transimpedance amplifier
Differential ended output
Single +3.3V operation
Speed up to 2.5 Gbps
-
40 ~ +85
潞C operation temperature
PT-9530 SERIES
*******************************************************************************************************************************************************
PT-9530
*******************************************************************************************************************************************************
DESCRIPTION
PT-9530 series are designed as optical signal receivers with AGC transimpedance amplifier. Their wide
dynamic ranges, differential outputs are suited for telecommunications, especially Gigabit
Ethernet,Fiber Channel and SONET OC-48.
AC / ELECTRICAL AND OPTICAL CHARACTERISTICS (T
C
=25擄C)
Symbol
Parameter
Dectection Range
G
BW
Psat
Sens
Rout
Differential Gain
Bandwidth
Saturation Power
Sensitivity
Output Resistance
Operation Speed
AC coupled, load=50
鈩?/div>
-3 dB point
位=1300nm
BER=10
-10
@2.5 Gb/s
-
Test Conditions
Min.
1100
2
1.5
-3
Typ.
1310
2.5
2
-
-21
50
2500
-
-19
65
Max.
1650
3
Unit
nm
V/mW
GHz
dBm
dBm
ohm
Mbps
DC / ELECTRICAL CHARACTERISTICS (T
C
=25擄C)
Symbol Parameter
V
CC
I
CC
Power Supply
Supply Current (no load)
Min.
3.15
-
Typ.
3.3
-
Max.
3.45
40
Unit
V
mA
ABSOLUTE MAXIMUM RATING (T
C
=25 潞C)
Symbol Parameter
V
T
opr
T
stg
Voltage
Operating Temperature
Storage Temperature
Value
4.5
-40~+85
-40~+85
Unit
V
潞C
潞C
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38,
Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
11/1/2002
