PRELIMINARY DATA SHEET
NEC's
4-PIN ULTRA SMALL FLAT-LEAD
PS7801C-1A
SUPER LOW OUTPUT CAPACITANCE
1-ch OPTICAL COUPLED MOS FET
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>

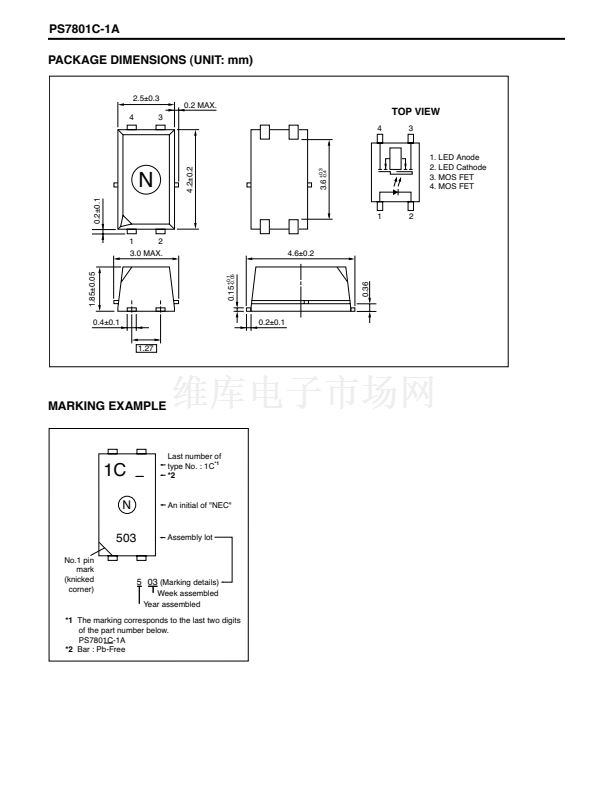

ULTRA SMALL FLAT-LEAD PACKAGE:
4.2 (L)
脳
2.5 (W)
脳
1.85 (H) mm
SUPER LOW OUTPUT CAPACITANCE:
C
out
= 0.5 pF TYP.
LOW C
脳
R:
C
脳
R = 6.5 pF 鈥?/div>
惟
DESCRIPTION
NEC's PS7801C-1A is a low output capacitance solid
state relay containing a GaAs LED on the light emit-
ting side (input side) and MOS FETs on the output
side.
An ultra small 鏗俛t-lead package has been provided
which realizes a reduction in mounting area of about
50% compared with the PS72xx series.
It is suitable for high-frequency signal control, due to
its low C
脳
R, super low output capacitance, and low
off-state leakage current.
鈥?/div>
1 CHANNEL TYPE:
1 a output
鈥?/div>
DESIGN FOR AC/DC SWITCHING LINE CHANGER
鈥?/div>
LOW OFFSET VOLTAGE
鈥?/div>

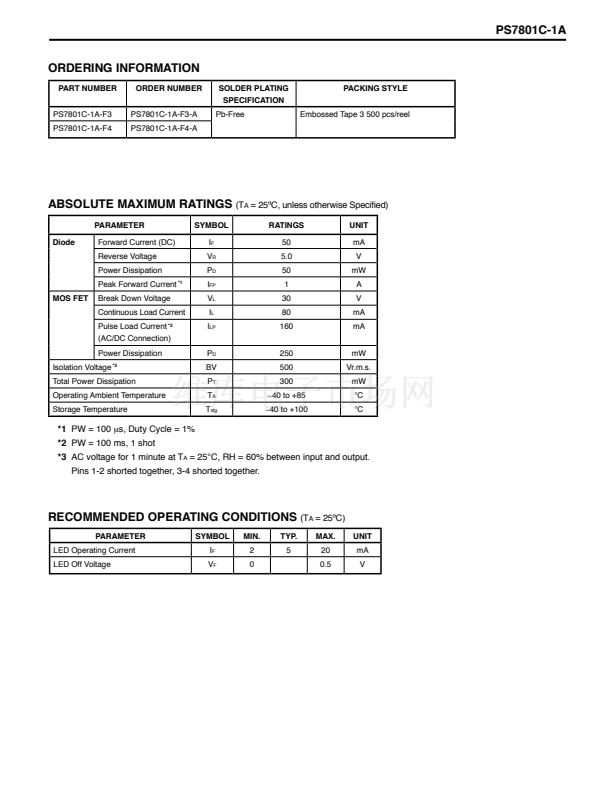

ORDERING NUMBER OF TAPING PRODUCT:
PS7801C-1A-F3, F4: 3 500 pcs/reel
APPLICATION
鈥?/div>
Measurement Equipment
California Eastern Laboratories
