PS7200H-1A-E3 Datasheet

  • PS7200H-1A-E3

  • 4-PIN SOP, 2.2 ohm LOW ON-STATE RESISTANCE 1-ch Optical Coup...

  • 319.35KB

  • 11頁

  • CEL   CEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Solid State Relay
OCMOS FET
PS7200H-1A
4-PIN SOP, 2.2
鈩?/div>
LOW ON-STATE RESISTANCE
1-ch Optical Coupled MOS FET
DESCRIPTION
The PS7200H-1A is a low on-state capacitance solid state relay containing a GaAs LED on the light emitting side
(input side) and MOS FETs on the output side.
It is suitable for high-frequency signal control, due to its low C
脳
R, low on-state resistance, and low off-state
leakage current.
FEATURES
鈥?Low C
脳
R (C
脳
R = 9.2 pF 鈥?/div>
鈩?
鈥?Low on-state resistance (R
on
= 2.2
鈩?/div>
TYP.)
鈥?Low output capacitance (C
out
= 4.2 pF TYP.)
鈥?Low off-state leakage current (I
Loff
= 0.03 nA TYP.)
鈥?High-speed turn-on time (t
on
= 0.04 ms TYP.)
鈥?1 channel type (1 a output)
鈥?Designed for AC/DC switching line changer

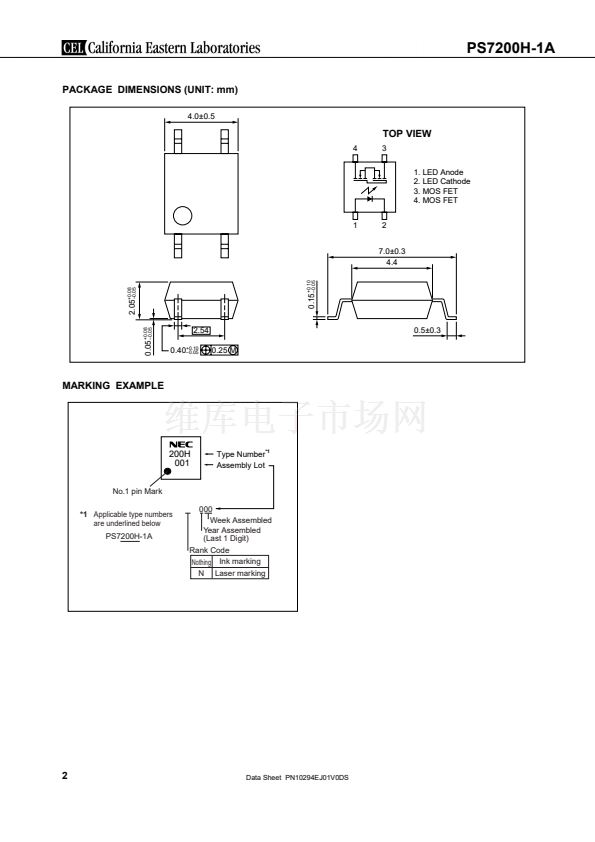

鈥?Small and thin package (4-pin SOP, Height = 2.1 mm)
鈥?High isolation voltage (BV = 1 500 Vr.m.s.)
鈥?Low offset voltage
鈥?Ordering number of taping product: PS7200H-1A-E3, E4, F3, F4
APPLICATIONS
鈥?Measurement equipment
Document No. PN10294EJ01V0DS (1st edition)
(Previous No. P13560EJ3V0DS00)
Date Published February 2003 CP(K)
The mark
shows major revised points.
