PS7200B-1A-F3 Datasheet

  • PS7200B-1A-F3

  • 4-PIN SOP 1.0 W LOW ON-STATE RESISTANCE 1-ch Optical Coupled...

  • 12頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
Solid State Relay
OCMOS FET
PS7200B-1A

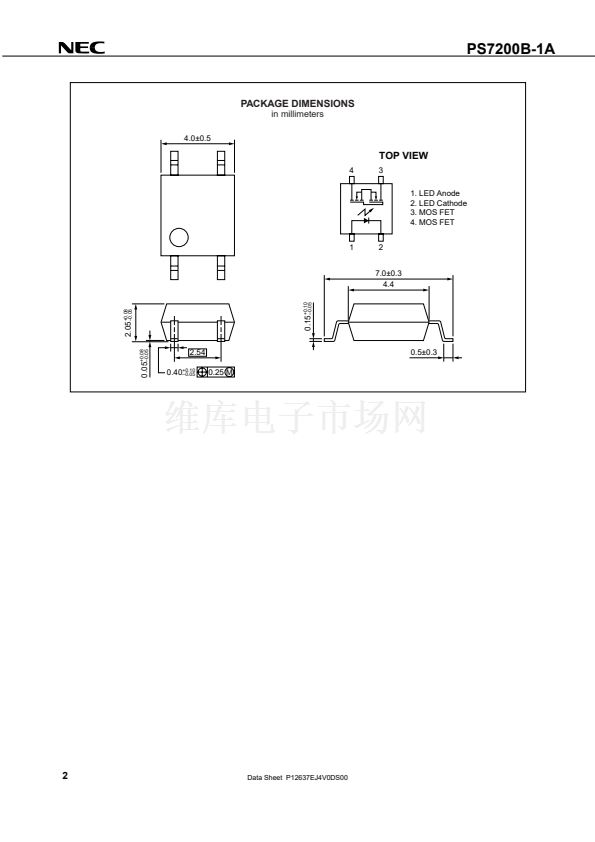

4-PIN SOP 1.0
鈩?/div>
LOW ON-STATE RESISTANCE
1-ch Optical Coupled MOS FET
DESCRIPTION
The PS7200B-1A is a low on-state resistance solid state relay containing GaAs LEDs on the light emitting side
(input side) and MOS FETs on the output side.
It is suitable for high-frequency signal control due to its low C
脳
R, low on-state resistance, and low off-state
leakage current.
FEATURES
鈥?Low C
脳
R (C
脳
R = 32 pF 鈥?/div>
鈩?
鈥?Low on-state resistance (R
on
= 1.0
鈩?/div>
TYP.)
鈥?Low off-state leakage current (I
Loff
= 0.1 nA TYP.)
鈥?High-speed turn-on time (t
on
= 0.05 ms TYP.)
鈥?1 channel type (1 a output)
鈥?Low LED operating current (I
F
= 2 mA)
鈥?Designed for AC/DC switching line changer
鈥?Small and thin package (4-pin SOP, Height = 2.1 mm)
鈥?Low offset voltage
鈥?Ordering number of taping product: PS7200B-1A-E3, E4, F3, F4
鈥?UL approved: File No. E72422 (S)
鈥?BSI approved: No. 8241/8242
鈥?CSA approved: No. CA 101391
APPLICATIONS
鈥?Measurement equipment
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P12637EJ4V0DS00 (4th edition)
Date Published October 1999 NS CP (K)
Printed in Japan
The mark
鈥?/div>
shows major revised points.
漏
1997, 1999

PS7200B-1A-F3 產品屬性

  • 3,500

  • 繼電器

  • 固態

  • PS, OCMOS

  • SPST-NO（1 Form A）

  • AC，DC

  • 1.5 歐姆

  • 250mA

  • 1.2VDC

  • 0 ~ 40 V

  • 表面貼裝

  • 鷗翼型

  • 4-SOP（0.228"，5.80mm）

  • 4-SOP（2.54mm）

  • 帶卷 (TR)

  • 繼電器

  • PS7200B1AF3
