DATA SHEET

PHOTOCOUPLER

PS2562-1,-2, PS2562L-1,-2

HIGH ISOLATION VOLTAGE

DARLINGTON TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2562-1, -2 and PS2562L-1, -2 are optically coupled isolators containing a GaAs light emitting diode and an

NPN silicon darlington connected phototransistor.

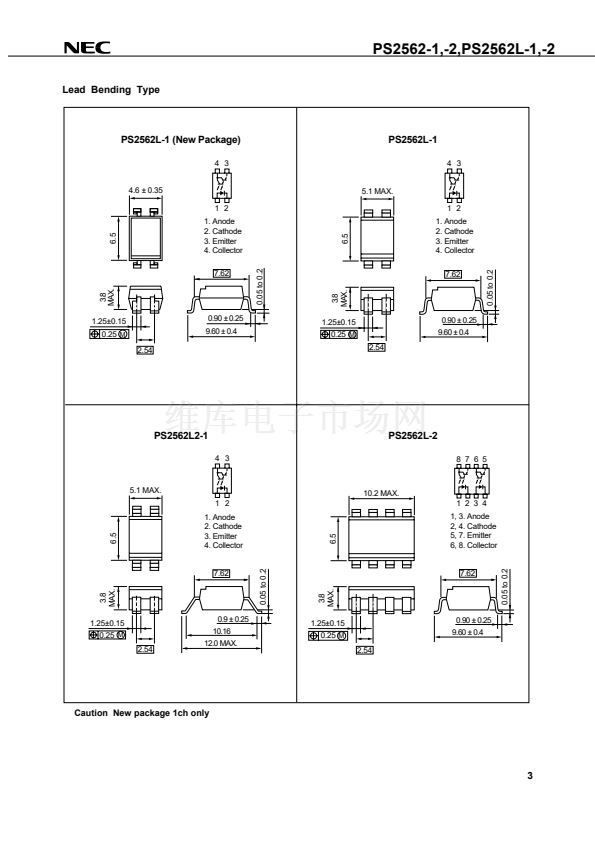

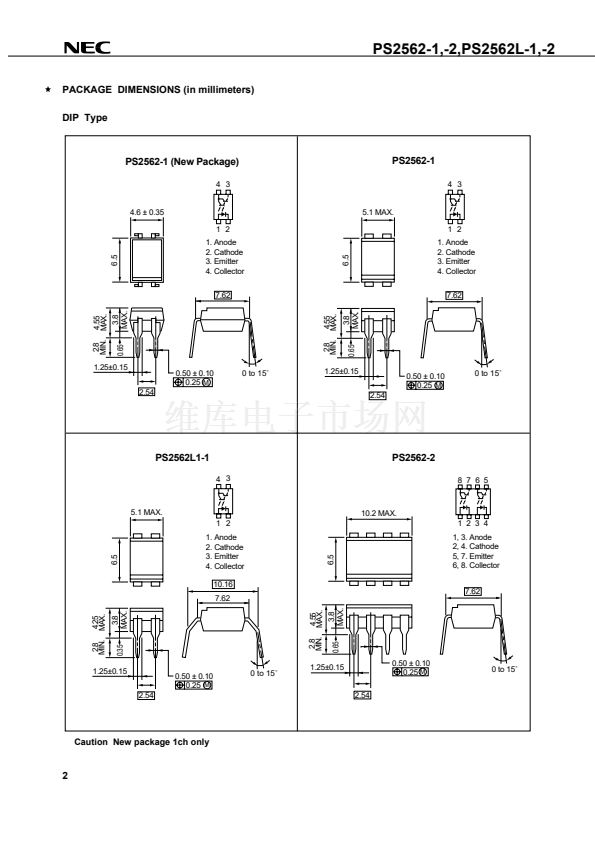

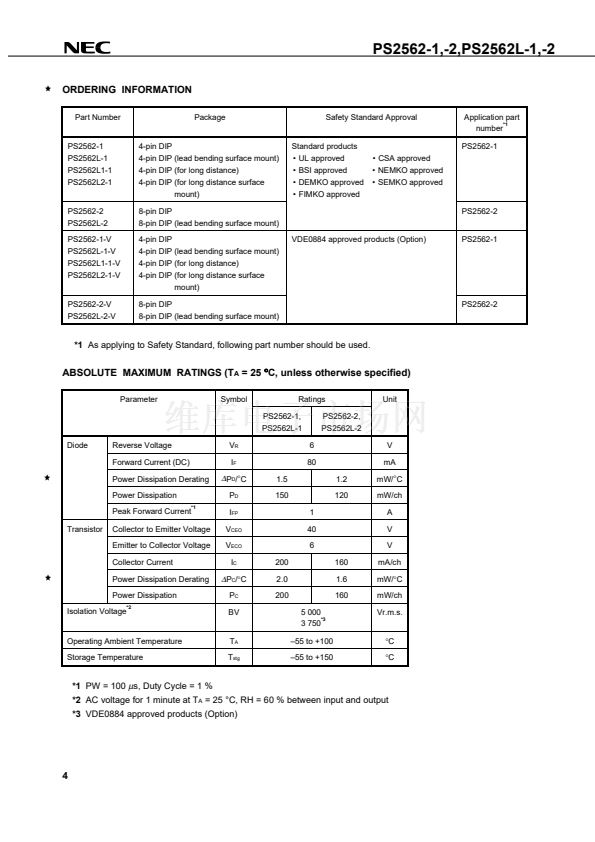

PS2562-1, -2 are in a plastic DIP (Dual In-line Package) and PS2562L-1, -2 are lead bending type (Gull-wing) for

surface mount.

FEATURES

鈥?High isolation voltage

BV = 5 000 Vr.m.s.: standard products

BV = 3 750 Vr.m.s.: VDE0884 approved products (Option)

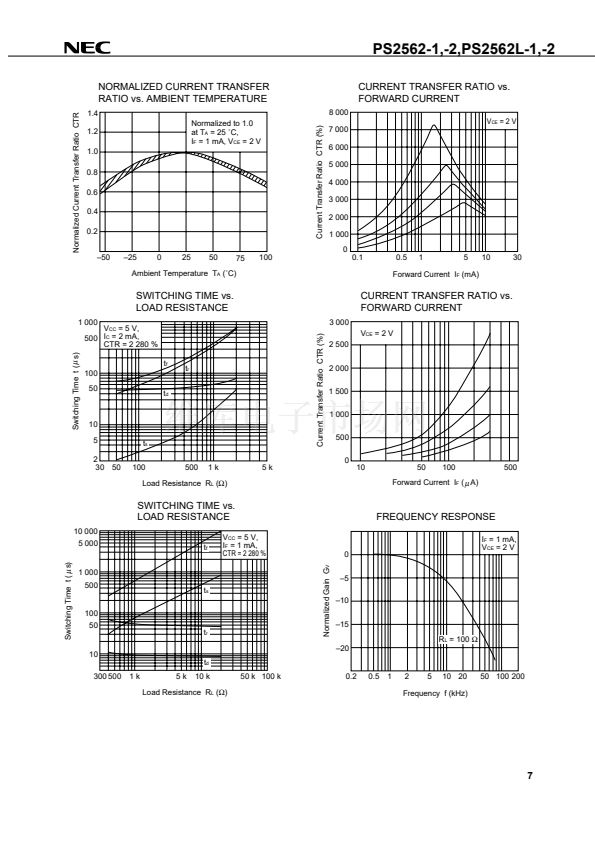

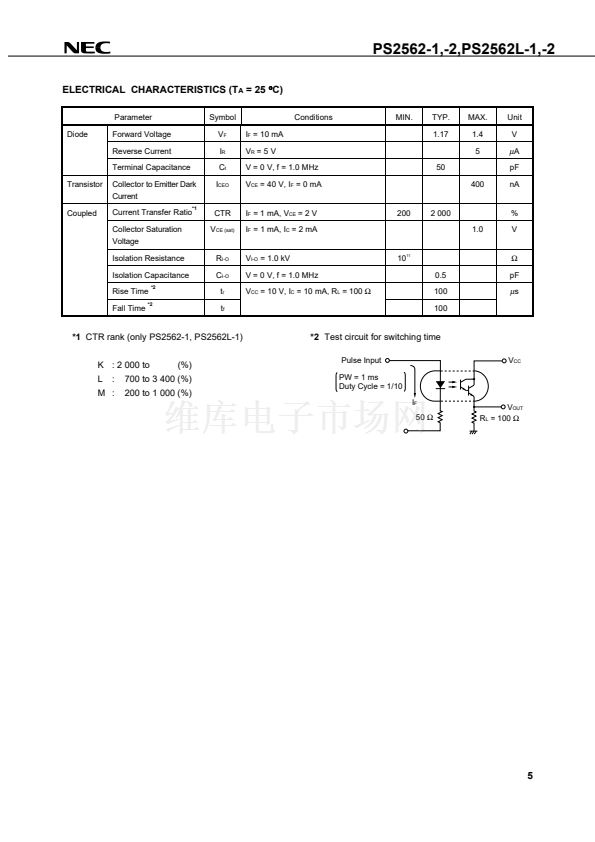

鈥?High current transfer ratio (CTR = 2 000 % TYP.)

鈥?High-speed switching (t

r

, t

f

= 100

碌

s TYP.)

鈥?UL approved (File No. E72422 (S) )

鈥?CSA approved (No. CA 101391)

鈥?BSI approved (BS415, BS7002) No. 7112

鈥?SEMKO approved (SS4410165) No. 9317144

鈥?NEMKO approved (NEK-HD 195S6) No. A21409

鈥?DEMKO approved (Section 101, 137) No. 300535

鈥?FIMKO approved (E69-89) No. 167265-08

鈥?VDE0884 approved (Option)

APPLICATIONS

鈥?Power supply

鈥?Telephone/FAX.

鈥?FA/OA equipment

鈥?Programmable logic controller

The information in this document is subject to change without notice.

Document No. P12990EJ4V0DS00 (4th edition)

(Previous No. LC-2226)

Date Published August 1997 NS

Printed in Japan

The mark

shows major revised points.

漏

1992
