CALIFORNIA MICRO DEVICES
PRC202/212
AC Termination Network
Features
鈥?Stable resistor-capacitor network
鈥?No signal delays
鈥?18 terminating lines/package
鈥?Saves board space and component cost
Applications
鈥?AC Terminator
鈥?Low Pass Filter
鈥?Power Supply Filtering
Product Description
CAMD鈥檚 PRC202/212 Integrated Resistor-Capacitor
Termination Network is designed to eliminate transmis-
sion line effects on high speed data lines. This thin film
network can support (terminate) 18 data lines, and
requires no DC power. The small surface mount pack-
ages improve board yields and reliability, minimize
space and routing problems on the board, and reduce
assembly costs. The PRC202/212 is a space efficient
and cost effective replacement for conventional MLCC
surface mount chip resistors and capacitors.
Why thin film RC networks? A terminating RC is used to
reduce or eliminate reflections on a transmission line. It
can perform this function only when its impedance value
matches the characteristic impedance of the transmis-
sion line.
Passive components affect the electrical performance of
electronic systems. In reality, every resistor has some
parasitic series inductance and a parasitic capacitance;
and every capacitor has both series resistance and
inductance. At low speeds, these parasitics do not affect
the performance of resistors and capacitors. However, at
higher speeds, these parasitics cause mismatch in a
termination. To prevent these problems in high speed
digital designs, a designer must take special care in
selecting passive components or networks.
SCHEMATIC CONFIGURATION
20
19
18
17
16
15
14
13
12
11
1
2
3
4
5
6
7
8
9
10

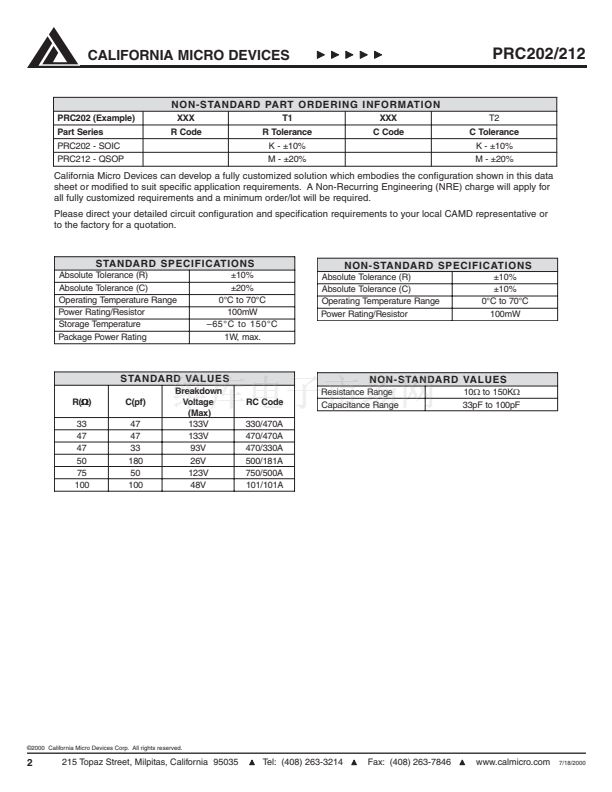

S TA N D A R D PA R T O R D E R I N G I N F O R M AT I O N
Package
RC Code
11
12
13
14
15
16
17
18
Pins
3
3
3
3
3
3
3
3
Style
S OT- 2 3
S OT- 2 3
S OT- 2 3
S OT- 2 3
S OT- 2 3
S OT- 2 3
S OT- 2 3
S OT- 2 3
Bag
PRC2 0 7 3 3 0 K/ 4 7 0 M/ B
PRC2 0 7 4 7 0 K/ 4 7 0 M/ B
PRC2 0 7 4 7 0 K/ 3 3 0 M/ B
PRC2 0 7 5 0 0 K/ 6 8 0 M/ B
PRC2 0 7 7 5 0 K/ 5 0 0 M/ B
PRC2 0 7 1 0 1 K/ 1 0 1 M/ B
PRC2 0 7 5 0 0 K/ 1 8 1 M/ B
PRC2 0 7 4 0 0 K/ 5 0 0 M/ B
Ordering Part Number
Tape & Reel
PRC2 0 7 3 3 0 K/ 4 7 0 M/ R
PRC2 0 7 4 7 0 K/ 4 7 0 M/ R
PRC2 0 7 4 7 0 K/ 3 3 0 M/ R
PRC2 0 7 5 0 0 K/ 6 8 0 M/ R
PRC2 0 7 7 5 0 K/ 5 0 0 M/ R
PRC2 0 7 1 0 1 K/ 1 0 1 M/ R
PRC2 0 7 5 0 0 K/ 1 8 1 M/ R
PRC2 0 7 4 0 0 K/ 5 0 0 M/ R
Part Marking
RC11
RC12
RC13
RC14
RC15
RC16
RC17
RC18
漏 2000 California Micro Devices Corp. All rights reserved.
7/18/2000
C1180600
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
