PRA/8000/L3-L4
Piston Rod Locking Units for
Magnet and Non-magnet
Piston Cylinders VDMA 24562 and
NFE49-003-1
q
Secure locking of piston rod in any position
q
Active and passive locking models
q
Compact, maintenance-free design
Technical Data
Medium:
Compressed air, filtered, lubricated and non-lubricated
Models:
PRA/8000/L3 Active locking
PRA/8000/L4 Passive locking
Operation:
Active model 鈥?pressure applied to lock
Passive model 鈥?pressure applied to release
Operating Pressure:
4 - 10 bar
Operating Temperature:
0擄C* to +80擄C
* Consult our Technical Service for use below +2擄C
Ordering Information
To order a 40mm bore magnetic cylinder with a
200mm stroke and passive locking unit quote:
PRA/8040/L4/200
Cylinder Diameters:
32, 40, 50, 63, 80, 100 mm
Materials:
Body 鈥?hard anodised diecast aluminium, polyurethane seals.
Cartridge 鈥?anodised aluminium body, hardened steel locking
wedges, nitrile seals.
Alternative Models:
Non-magnetic
Active
Passive
12/94

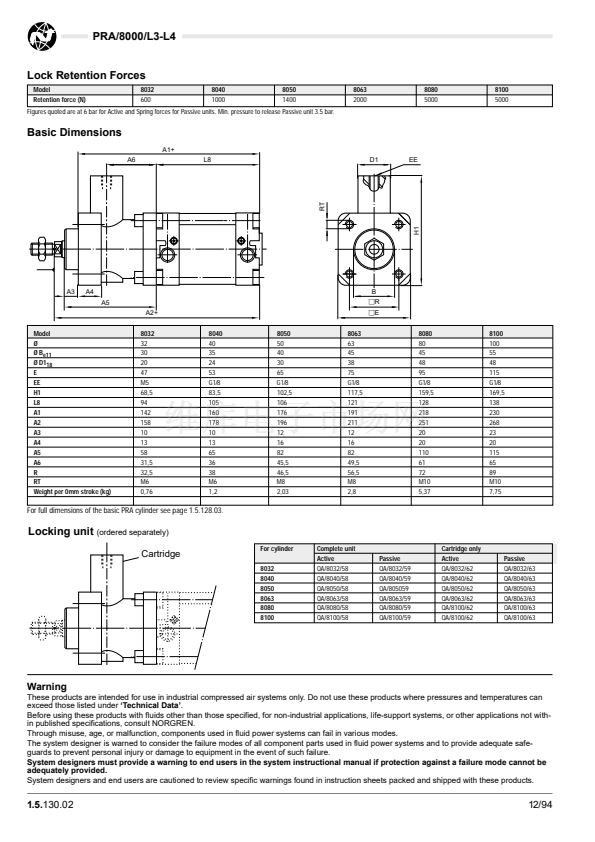

1.5.130.01
