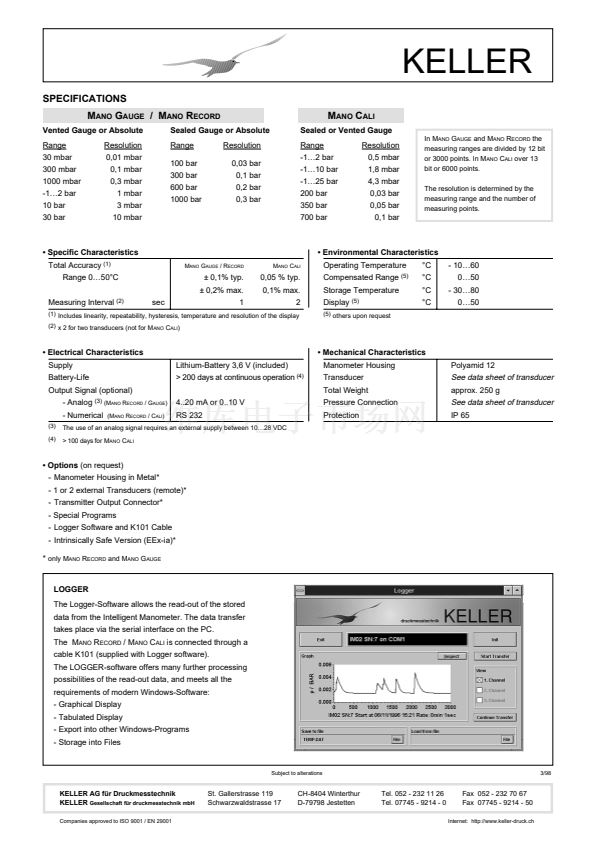

This is a highly accurate microprocessor-controlled pressure measuring instrument. SensoBrain
TM
, a KELLER-designed low power signal
processor, transmits the signals of the pressure- and temperature sensor to the microprocessor, which digitally compensates the sensor data.
This mathematical modelling of the pressure sensor virtually eliminates all errors over a wide temperature range.
All KELLER- and KAVLICO-sensors are compatible with the electronics of the Intelligent Manometers.
M
ANO
G
AUGE
(Basic Version)
Display of:
Alternative:
Pressure, Pressure Unit, Temperature, Elapsed Time
Pressure, Pressure Unit, Max.- and Min. Value
All functions are executed with the front key of the instrument. It allows the display
to be set to zero and to change the measuring cycle for prolonged battery life.
Two pressure sensors can be connected to the M
ANO
G
AUGE
(optional).
Analog outputs can be provided 4鈥?0 mA or 0鈥?0 V (optional).
M
ANO
R
ECORD
(M
ANO
G
AUGE
plus data recording)
Based on the M
ANO
G
AUGE
, the M
ANO
R
ECORD
records and stores the measured
values. The front key is used to select which data shall be displayed and stored,
and to set the recording interval and the number of readings (memory for 960 or
optionally 8100 readings). The read-out of the stored data is via RS 232 serial
interface (Logger Software and K101 cable available as option).
M
ANO
C
ALI
(C
ALIBRATOR
V
ERSION
plus data recording)
In the basic mode, the M
ANO
C
ALI
displays: Pressure, Pressure Unit, Max.- and Min. Values.
Units are selected via the front key (bar, PSI, kPa, MPa,鈥?. M
ANO
C
ALI
also incorporates the
functions TARA (sets a new temporary zero reference), LEAK (measures a pressure change
over a programmable time) and RES (reduces the standard resolution by factor 10).
A seperate HOLD-key on the instrument freezes the reading. This instrument has the same
data recording features as the M
ANO
R
ECORD
.
酶 76 mm
HOLD-Key
(Mano Cali
only)
KELLER
KELLER
KELLER
鈮?/div>
80 mm
鈮?/div>
80 mm
Front Key
Button
鈮?/div>
46 mm
酶 45
HEX 27
G 1/4"
G 1/4"
HEX 19
G 1/4"
Integrated Capacitive Cell
(30 mbar鈥? bar)
Series 11 Transducer
(1鈥?0 bar / -1鈥? bar / -1鈥?000 bar)
Series 6 Transducer
(10鈥?00 bar)
