COMMERCIAL LIGHTING

F L U O R E S C E N T B AT T E N S & S Y S T E M S

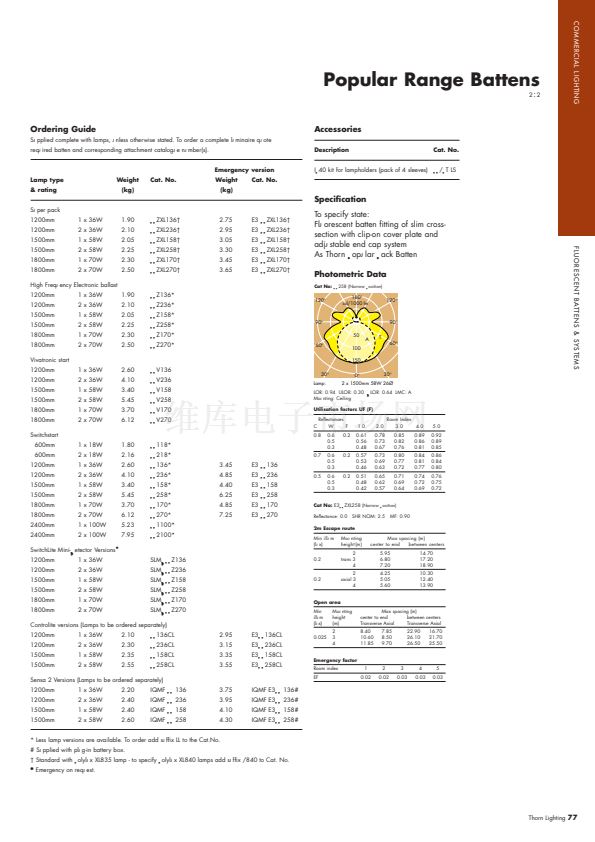

Popular Range Battens

1

:

2

Battens

The Popular Range includes single and

twin battens (for surface or suspended

mounting).

Key Features

q

Materials/Finish

Batten: Rolled steel section

in precoated high reflectivity

white paint

Lampholder assembly: Tough

white polycarbonate

Installation/Mounting

Four-way terminal block with

capacity for 1 x 4mm

2

or 2 x

2.5mm

2

cables. Spare terminal

for switch line connection. Terminal

angled for easy wiring. Ambient

temperature: Switchstart and

Vivatronic -5擄c to 25擄c

High frequency electronic -15擄c

to 25擄c Normal, dry, indoor

atmospheres. Fixings via three

BESA piercings, one central and two

at fixing centres: 600mm - 500mm;

1200/1500/1800mm - 600mm;

2400mm - 1200mm. (HF electronic

versions have no central fixing.)

Bare battens can be mounted

end-to-end (except emergency

versions - recommended minimum

space between luminaires 50mm)

Emergency fixing centres:

E3PP158/E3PP170 - 600mm

E3PP136/E3PP236/E3PPZ136/E3PP

Z236/E3PP258/E3PP270 - 1110mm

E3PPZ158/E3PPZ258/E3PPZ170/E

3PPZ270 - 1410mm

Standards

Designed and manufactured to

comply with BS4533/EN 60598

(for catagorised louvres)

IP20 (IP40 conversion sleeve

available)

Five different lengths from

600mm (2ft) to 2400mm (8ft)

Shallow, discrete appearance

achieved with adjustable

lampholders

Adjustable twin lampholder gives

uniform light in low ceiling

commercial environments or

downward light in high industrial

installations

Comprehensive range of

commercial and industrial

attachments

Surface or suspended

High frequency electronic ballast,

Vivatronic start and switch start

gear options as standard

Maintained emergency versions

available

Dimmable Controlite versions

allow 1-10V dimming down to 5%

lamp power

SwitchLite Mini-Detector versions

(battens) available for simple

ON/OFF presence detection

swtching

Sensa 2 intelligent versions

(battens) for daylight and

presence detection (see page

141 for functionality)

鈥楽uper鈥?versions with high

frequency ballast and Polylux XL

lamp for maximum economy of

operation, minimum maintenance

and 5 year guarantee

Clip-on cover plate and spring

loaded end caps for easy

installation

Twist-lock lampholders for reliable

electrical contact

Slim spine with durable, corrosion-

resistant finish

Optional kit for IP40 upgrade

q

q

q

q

q

q

q

Single

60

q

82

42

q

Options

q

q

q

Twin (lampholder

narrow position)

Twin (lampholder

wide position)

q

q

Emergency versions comply with

BS/EN 60598 2.22. Battens, spines,

reflector and louvre attachments are

suitable for defined escape routes, as

well as open areas. All other

attachments are suitable for

emergency lighting

in open areas

81

64

Lamp Types

125

82

All dimensions in mm

18W/36W/58W/

70W/100W high efficency white

T8, cap: G13 (Les lamp versions

available)

Polylux XL 835 or Polylux XL 840

cap: G13

76

Thorn Lighting

next
