PJ5815CP Datasheet

  • PJ5815CP

  • 500mA CMOS Low Dropout Voltage Regulators

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

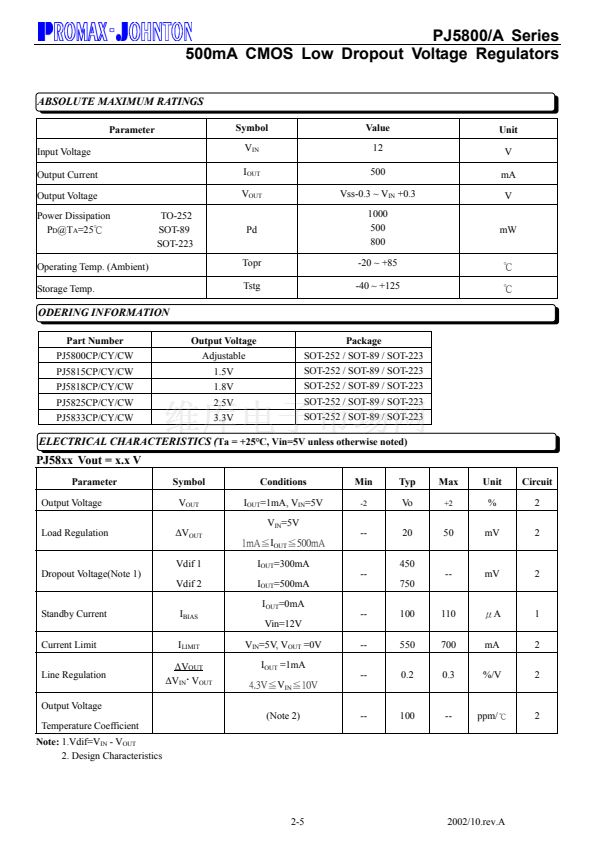

PJ5800/A Series
500mA CMOS Low Dropout Voltage Regulators
T
he PJ5800/A series are highly precise, low ground current
and fixed output voltage regulators manufactured using
TO-252
PJ5800
Pin 1. In
2. Out
3. Gnd
PJ5800A
Pin 1. Gnd
2. In
3. Out
CMOS process. The series provides large currents with a
significantly small dropout voltage. The PJ5800/A consists of
a current limiting circuit; a thermal limiting, a precision
reference voltage and an error amplifier provide maximal
protection against any fault conditions. Output voltage ranges
are adjustable, 1.5V, 1.8V, 2.5V, 3.3V; TO-252 (1W), SOT-89
(500mW) and SOT-223 (800mW) packages are available.
SOT-89
PJ5800
Pin 1. Out
2. Gnd
3. Int
PJ5800A
Pin 1. Gnd
2. In
3. Out
FEATURES
Maximum Output Current: 500mA
Dropout Voltage: 300mV
Maximum Operating Voltage: 12V
Output Voltage Range:
Adjustable, 1.5V, 1.8V, 2.5V, 3.3V
Highly Accurate: 鹵2%
Low Ground Current: TYP 100碌A(chǔ)
Fast Transient Response
Current Limited and Thermal Limited
Applications
Voltage Regulator for LAN Card, CD-ROM and DVD
Cordless phones
Camera, video recorders
Portable games
Portable AV equipment
Reference voltage
Battery powered equipment
Device
PJ58xxCP
PJ58xxCY
PJ58xxCW
PJ58xxACP
PJ58xxACY
PJ58xxACW
(Heatsink surface connected to Pin 2)
SOT-223
PJ5800
Pin 1. In
2. Out
3. Gnd
PJ5800A
Pin 1. Gnd
2. Out
3. In
ORDER INFORMATION
Operation Temperature
(Ambient)
Package
SOT-252
SOT-89
SOT-223
TO-252
SOT-89
SOT-223
-20鈩?~ +85
o
C
BLOCK DIAGRAM
1-5
2002/10.rev.A
