PIC17C7XX
High-Performance 8-Bit CMOS EPROM Microcontrollers with 10-bit A/D
Microcontroller Core Features:
鈥?Only 58 single word instructions to learn
鈥?All single cycle instructions (121 ns) except for
program branches and table reads/writes which
are two-cycle
鈥?Operating speed:
- DC - 33 MHz clock input
- DC - 121 ns instruction cycle
鈥?8 x 8 Single-Cycle Hardware Multiplier
鈥?Interrupt capability
鈥?16 level deep hardware stack
鈥?Direct, indirect, and relative addressing modes
鈥?Internal/external program memory execution,
Capable of addressing 64K x 16 program memory
space
Memory
Device
Program (x16)
PIC17C752
PIC17C756A
PIC17C762
PIC17C766
8K
16K
8K
16K
Data (x8)
678
902
678
902

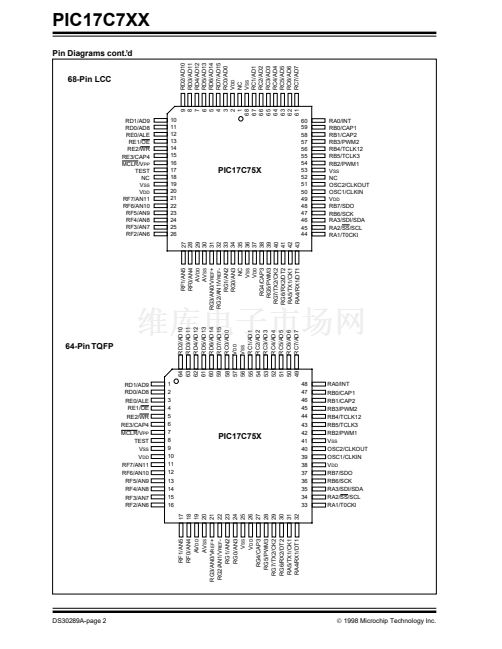

Pin Diagrams
RH1
RH0
RD2/AD10
RD3/AD11
RD4/AD12
RD5/AD13
RD6/AD14
RD7/AD15
RC0/AD0
V
DD
NC
V
SS
RC1/AD1
RC2/AD2
RC3/AD3
RC4/AD4
RC5/AD5
RC6/AD6
RC7/AD7
RJ7
RJ6
11 10 9 8 7 6 5 4 3 2 1 84 83 82 81 80 79 78 77 76 75
84 LCC
RH2
RH3
RD1/AD9
RD0/AD8
RE0/ALE
RE1/OE
RE2/WR
RE3/CAP4
MCLR/V
PP
TEST
NC
V
SS
V
DD
RF7/AN11
RF6/AN10
RF5/AN9
RF4/AN8
RF3/AN7
RF2/AN6
RH4/AN12
RH5/AN13
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
PIC17C76X
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
RJ5
RJ4
RA0/INT
RB0/CAP1
RB1/CAP2
RB3/PWM2
RB4/TCLK12
RB5/TCLK3
RB2/PWM1
V
SS
NC
OSC2/CLKOUT
OSC1/CLKIN
V
DD
RB7/SDO
RB6/SCK
RA3/SDI/SDA
RA2/SS/SCL
RA1/T0CKI
RJ3
RJ2
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53
Special Microcontroller Features:
鈥?Power-on Reset (POR), Power-up Timer (PWRT)
and Oscillator Start-up Timer (OST)
鈥?Watchdog Timer (WDT) with its own on-chip RC
oscillator for reliable operation
鈥?Brown-out Reset
鈥?Code-protection
鈥?Power saving SLEEP mode
鈥?Selectable oscillator options
Peripheral Features:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Up to 66 I/O pins with individual direction control
10-bit, multi-channel analog-to-digital converter
High current sink/source for direct LED drive
Four capture input pins
- Captures are 16-bit, max resolution 121 ns
Three PWM outputs (resolution is 1- to 10-bits)
TMR0: 16-bit timer/counter with
8-bit programmable prescaler
TMR1: 8-bit timer/counter
TMR2: 8-bit timer/counter
TMR3: 16-bit timer/counter

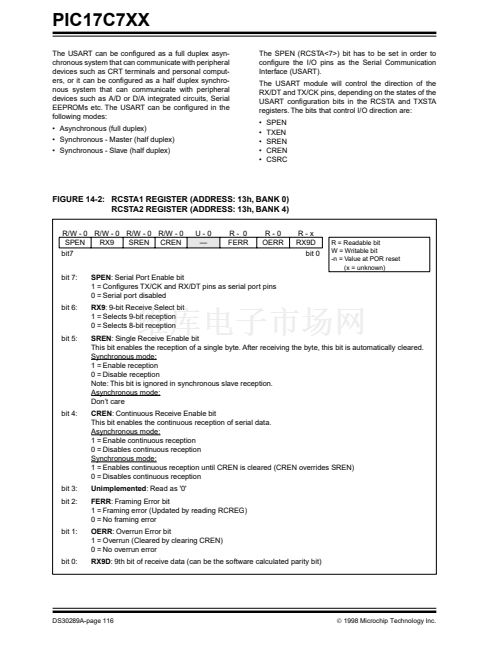

Two Universal Synchronous Asynchronous
Receiver Transmitters (USART/SCI) with Indepen-
dent baud rate generators

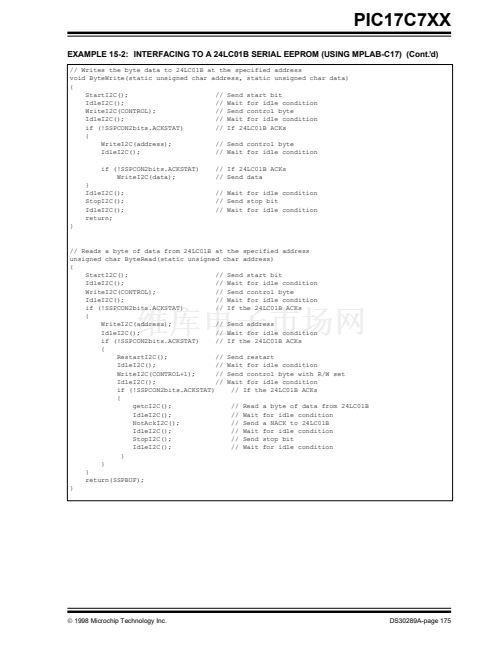

Synchronous Serial Port (SSP) with SPI鈩?and
I
2
C鈩?modes (including I
2
C master mode)
CMOS Technology:
鈥?Low-power, high-speed CMOS EPROM
technology
鈥?Fully static design
鈥?Wide operating voltage range (3.0V to 5.5V)
鈥?Commercial and Industrial temperature ranges
鈥?Low-power consumption
- < 5 mA @ 5V, 4 MHz
- 100
碌A(chǔ)
typical @ 4.5V, 32 kHz
- < 1
碌A(chǔ)
typical standby current @ 5V
鈥?/div>
漏
1998 Microchip Technology Inc.
RH6/AN14
RH7/AN15
RF1/AN5
RF0/AN4
AV
DD
AV
SS
RG3/AN0/V
REF
+
RG2/AN1/V
REF
-
RG1/AN2
RG0/AN3
NC
V
SS
V
DD
RG4/CAP3
RG5/PWM3
RG7/TX2/CK2
RG6/RX2/DT2
RA5/TX1/CK1
RA4/RX1/DT1
RJ0
RJ1
DS30289A-page 1
