PI74ALVCH162244 is designed for low-voltage operation
V
CC
= 2.3V to 3.6V
Hysteresis on all inputs
Typical V
OLP
(Output Ground Bounce)
< 0.8V at V
CC
= 3.3V, T
A
= 25擄C
Typical V
OHV
(Output V
OH
Undershoot)
< 2.0V at V
CC
= 3.3V, T
A
= 25擄C
Output ports have equivalent 26-Ohm series resistors:
no external resistors are required
Bus Hold retains last active bus state during 3-State,
eliminating the need for external pullup resistors
Industrial operation: 鈥?0擄C to +85擄C
Packages available:
鈥?48-pin 240 mil wide plastic TSSOP (A)
鈥?48-pin 300 mil wide plastic SSOP (V)
Product Description
Pericom Semiconductor鈥檚 PI74ALVCH series of logic circuits
are produced using the Company鈥檚 advanced 0.5 micron CMOS
technology, achieving industry leading speed.
The PI74ALVCH162244 is an non-inverting 16-bit buffer/driver
designed for low voltage 2.3V to 3.6V V
CC
operation.
The buffer/driver is designed specifically to improve both the
performance and density of 3-State memory address drivers, clock
drivers, and bus-oriented receivers and transmitters.
The device can be used as four 4-bit buffers, two 8-bit buffers, or
one 16-bit buffer. It provides non-inverting outputs and symmetri-
cal active-low output-enable (OE) inputs.
To ensure the high-impedance state during power up or power
down, OE should be tied to V
CC
through a pullup resistor in which
the minimum value is determined by the current-sinking capability
of the driver.
The PI74ALVCH162244 has 鈥淏us Hold鈥?which retains the data
input鈥檚 last state whenever the data input goes to high-impedance
preventing 鈥渇loating鈥?inputs and eliminating the need for pullup/
down resistors.
Logic Block Diagram
1OE
1A0
1A1
1A2
1A3
1Y0
1Y1
1Y2
1Y3
3OE
3A0
3A1
3A2
3A3
3Y0
3Y1
3Y2
3Y3
2OE
2A0
2A1
2A2
2A3
2Y0
2Y1
2Y2
2Y3
4OE
4A0
4A1
4A2
4A3
4Y0
4Y1
4Y2
4Y3
1
PS8092B
10/15/01
1

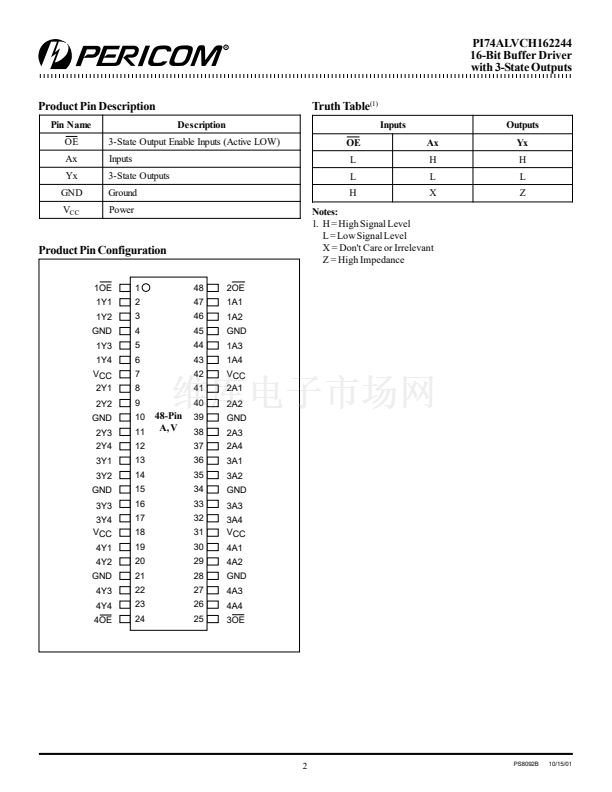

2

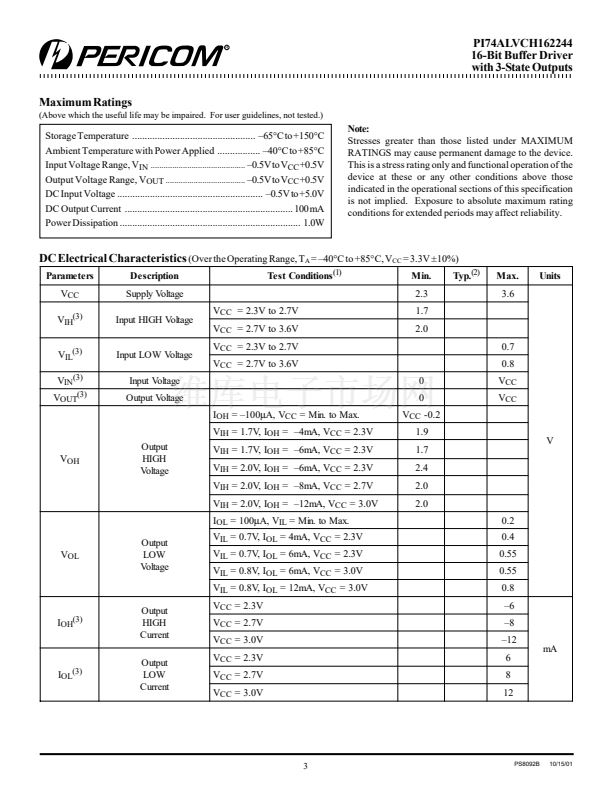

3
4
