PulseGuard
廬
Suppressors
Polymeric ESD Suppressors

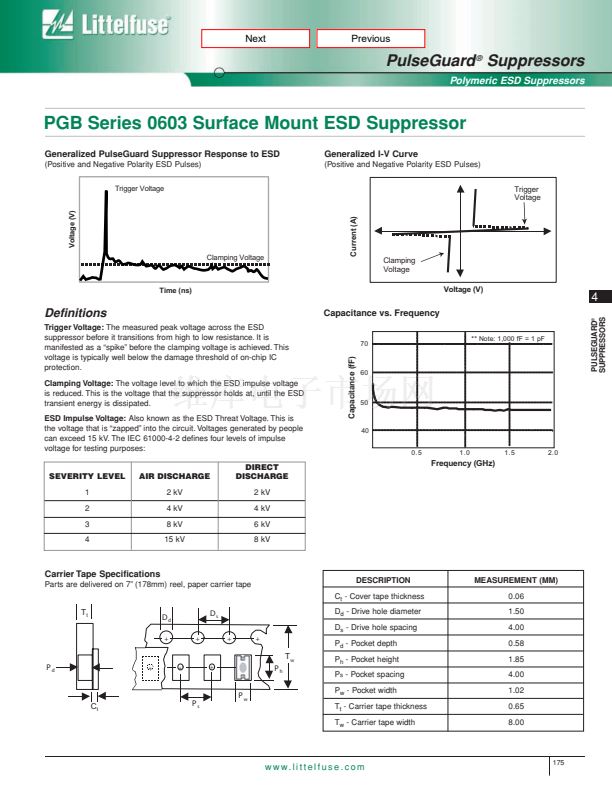

PGB Series 0603 Surface Mount ESD Suppressor
Product Overview
PulseGuard ESD Suppressors help protect sensitive electronic
equipment against electrostatic discharge (ESD). They supplement the
on-chip protection of integrated circuitry and are best suited for low-
voltage, high-speed applications where low capacitance is important.
Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394
and InfiniBand
SM
can benefit from this new technology.
PulseGuard suppressors use polymer composite materials to
suppress fast-rising ESD transients (as specified in IEC 61000-4-2
and MIL-STD-883C).
Features
鈥?Ultra-low capacitance
鈥?Low leakage current
鈥?Fast response time
鈥?Single line of protection
鈥?Bi-directional
鈥?Withstands multiple ESD strikes
鈥?Standard EIA SOCM-1608 package
鈥?Compatible with pick-and-place processes
鈥?Available in 1,000 and 5,000 piece reels (EIA-RS481)
Physical Specifications
Materials:
Body: Glass Epoxy
Terminations: Tin-Lead
Typical Applications
鈥?Servers
鈥?Laptop/Desktop Computers
鈥?Network Hardware
鈥?Computer Peripherals
鈥?Digital Cameras
鈥?External Storage
Soldering Parameters:
Wave solder -- 260擄C, 10 seconds maximum
Reflow solder -- 260擄C, 30 seconds maximum
Operating Temperature Range:
Electrical Characteristics
Trigger Voltage
1
...................................................................1,000V, typical
Clamping Voltage
1
..................................................................150V, typical
Rated Voltage ........................................................................24VDC, max
Capacitance
2
................................................................................0.055 pF
Response Time
1
...............................................................................< 1 ns
Leakage Current
3
..............................................................................< 1nA
ESD Pulse Withstand............................................1,000 pulses, minimum
NOTES:
1. 8 kV direct discharge method, per IEC 61000-4-2.
2. Measured at 1 MHz.
3. Measured at 6 VDC. Testing at fast ESD pulse rates (1-20Hz) may cause
a change in leakage current performance (6碌A(chǔ), max).
-65擄C to 125擄C
Ordering Information
CATALOG NUMBER
PGB0010603MR
PGB0010603NR
PIECES PER REEL
1,000
5,000
Design Consideration
Because of the fast rise-time of the ESD transient, placement of
PulseGuard suppressors is a key design consideration. To achieve
optimal ESD suppression, the devices should be placed on the circuit
board as close to the source of the ESD transient as possible. Install
PulseGuard suppressors directly behind the connector so that they are
the first board-level circuit component encountered by the ESD transient.
They are connected from signal/data line to ground.
174
w w w. l i t t e l f u s e . c o m
