PE7720DEW-125.0MT1K Datasheet

  • PE7720DEW-125.0MT1K

  • 2.5 V PECL Clock Oscillators

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

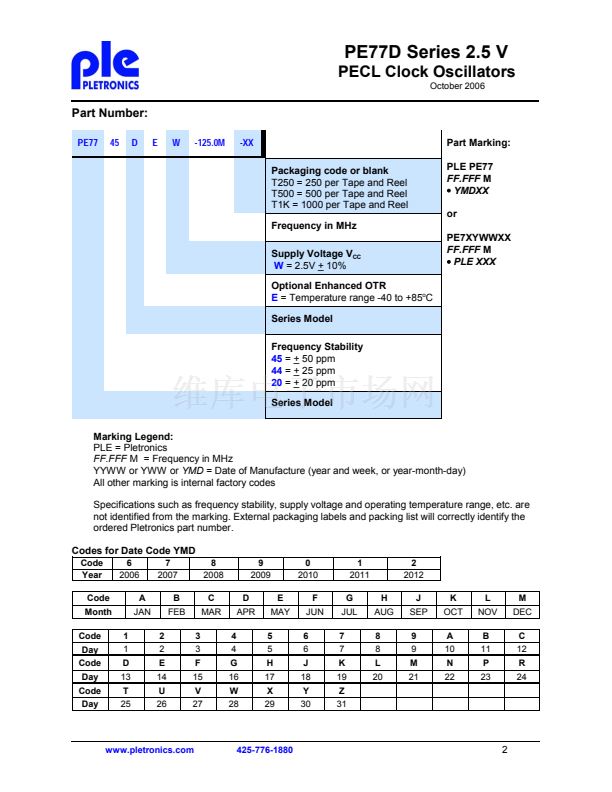

PE77D Series 2.5 V
PECL Clock Oscillators
October 2006
鈥?Pletronics鈥?PE77D Series is a quartz crystal
controlled precision square wave generator
with a PECL output.
鈥?The package is designed for high density
surface mount designs.
鈥?Low cost mass produced oscillator.
鈥?Tape and Reel or Tube packaging is available.
40 to 250 MHz
5 x 7 mm LCC Ceramic Package
Enable/Disable Function on pad 1
Disable function includes low standby power
mode
鈥?3
rd
Overtone Crystals used
鈥?Improved circuit to minimize oscillator issues
such as multi-mode output signal.
鈥?Low Jitter
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB鈥檚, PBDE鈥檚
Weight of the Device: 0.16 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4

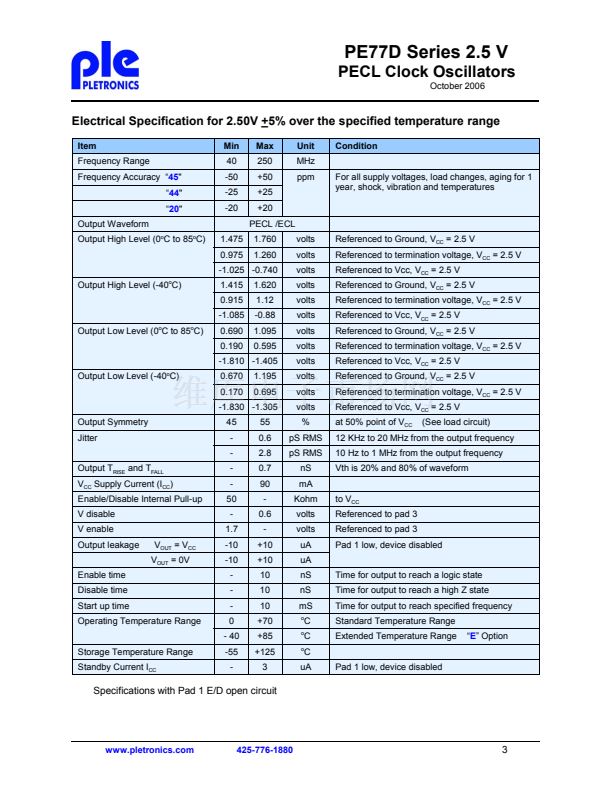

Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 30 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright 漏 2006, Pletronics Inc.
