PCM1710U

Stereo Audio

DIGITAL-TO-ANALOG CONVERTER

FEATURES

COMPLETE STEREO DAC:

8X Oversampling Digital Filter

Multi-Level Delta-Sigma DAC

Analog Low Pass Filter

Output Amplifier

HIGH PERFORMANCE:

鈥?2dB THD+N

98dB Dynamic Range

110dB SNR

ACCEPTS 16 OR 20 BITS INPUT DATA

SYSTEM CLOCK: 256fs or 384fs

SINGLE +5V POWER SUPPLY

ON-CHIP DIGITAL FILTER:

Soft Mute and Attenuator

Digital De-emphasis

Double-Speed Dubbing Mode

SMALL 28-PIN SOIC PACKAGE

DESCRIPTION

The PCM1710 is a complete stereo audio digital-to-

analog converter, including digital interpolation filter,

delta-sigma DAC, and analog voltage output. PCM1710

can accept either 16-bit normal or 20-Bit normal input

data (MSB first, right justified), or 16-bit IIS data

(32-bits per word, continuous clock).

The digital filter performs an 8X interpolation func-

tion, as well as special functions such as soft mute,

digital attenuation, de-emphasis and double-speed

dubbing. Performance of the digital feature is excel-

lent, featuring 鈥?2dB stop band attenuation and

鹵0.008dB

ripple in the pass band.

PCM1710 is suitable for a wide variety of consumer

applications where good performance is required.

Its low cost, small size and single +5V power supply

make it ideal for automotive CD players, bookshelf

CD players, BS tuners, keyboards, MPEG audio,

MIDI applications, set-top boxes, CD-ROM drives,

CD-Interactive and CD-Karaoke systems.

Digital In

Input Interface

and

Attentuator

Oversampling

Digital Filter

4th-Order

Multi-Level

Delta

Sigma

Lch OUT

DAC

Low-Pass

Filter

Output

Op Amp

Rch OUT

Mode Control

System Clock

International Airport Industrial Park 鈥?Mailing Address: PO Box 11400

Tel: (520) 746-1111 鈥?Twx: 910-952-1111 鈥?Cable: BBRCORP 鈥?/div>

鈥?Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd. 鈥?Tucson, AZ 85706

Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132

漏 1994 Burr-Brown Corporation

PDS-1217B

Printed in U.S.A. June, 1995

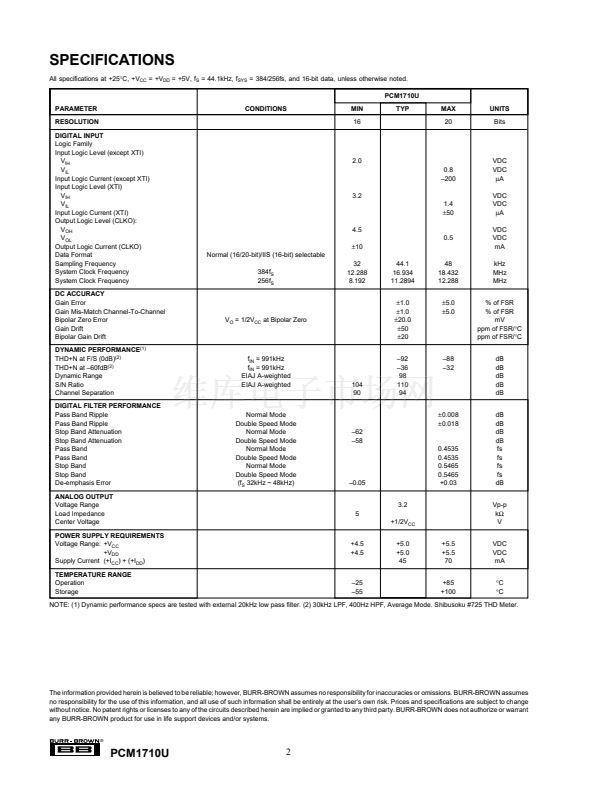

制造商
Texas Instruments
產品種類
DAC（數/模轉換器）
轉換器數量
2
DAC 輸出端數量
2
轉換速率
48 KSPs
分辨率
20 bit
接口類型
Parallel or Serial (3-Wire)
最大工作溫度
+ 85 C
安裝風格
SMD/SMT
封裝 / 箱體
SOIC-28
封裝
Tube
最小工作溫度
- 25 C
輸出類型
Voltage
工廠包裝數量
28
Supply Voltage - Max
5.5 V
Supply Voltage - Min
4.5 V
