Single chip IEEE 1284 parallel port termination
28-pin QSOP package, smallest physical
solution
17 terminating lines in a single package
In-system ESD protection to
鹵
8KV, HBM
In-system ESD protection to
鹵
4KV per
IEC 61000-4-2
Protects downstream devices to 30V
Lead-free version available
Product Description
California Micro Devices鈥?PACS1284 Parallel Port Ter-
mination Network provides a complete integrated solu-
tion for the entire IEEE 1284 interface in a single
QSOP package.
To support the bi-directional transfer data rates of
enhanced high-speed parallel ports, the IEEE 1284
Standard recommends a combined termination/pull-up
filter network between the driver/receiver and the cable
at both ends of the parallel port interface. In addition,
government EMC compatibility requirements impose
strict filtering requirements on the parallel port. The
California Micro Devices PACS1284 addresses all
these requirements by providing a seventeen-line IEEE
1284-compliant network in a thin film integrated circuit.
The device provides a complete parallel port termina-
tion solution for space critical applications by integrat-
ing a total of 60 discrete components. In addition, all
the I/O pins are ESD protected for contact discharges
up to
鹵
4KV per the Human Body Model (HBM), with the
output pins having the highest probability of ESD pulse
exposure protected to
鹵
8KV (HBM), thereby providing
the necessary robustness for the port鈥檚 application
environment.
The PACS1284 is manufactured in a 28-pin QSOP
package and is available with optional lead-free finish-
ing.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ECP/EPP Parallel Port termination
PC Peripherals
Notebook and Desktop computers
Engineering Workstations and Servers
Electrical Schematic
PACS1284-02:
R1 = 2.2k鈩?/div>
R2 = 33鈩?/div>
R3 = 2.2k鈩?/div>
C = 220pF
PACS1284-04:
R1 = 4.7k鈩?/div>
R2 = 33鈩?/div>
R3 = 4.7k鈩?/div>
C = 180pF
28
27
26
25
24
23
22 21
20
19
18
17
16
15
R1
R3
R1
R1
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R3
R1
R2
R3
R1
R2
R3
R1
R2
R1
R2
R3
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
1
2
3
4
5
6
7
8
9
10
11
12
13
14

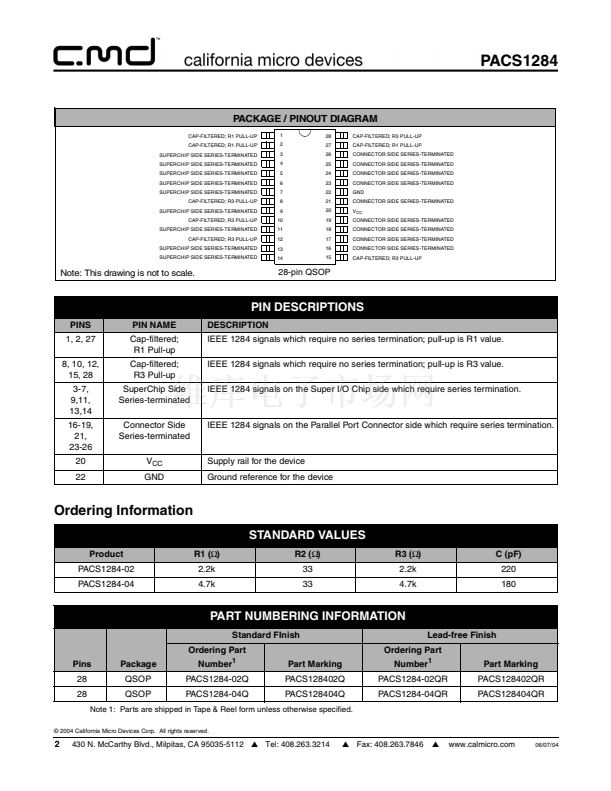

漏 2004 California Micro Devices Corp. All rights reserved.
06/07/04
430 N. McCarthy Blvd., Milpitas, CA 95035-5112
鈻?/div>
Tel: 408.263.3214
鈻?/div>
Fax: 408.263.7846
