P6KE320CA Datasheet

  • P6KE320CA

  • Transient Voltage Suppressor (TVS)

  • 89.67KB

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

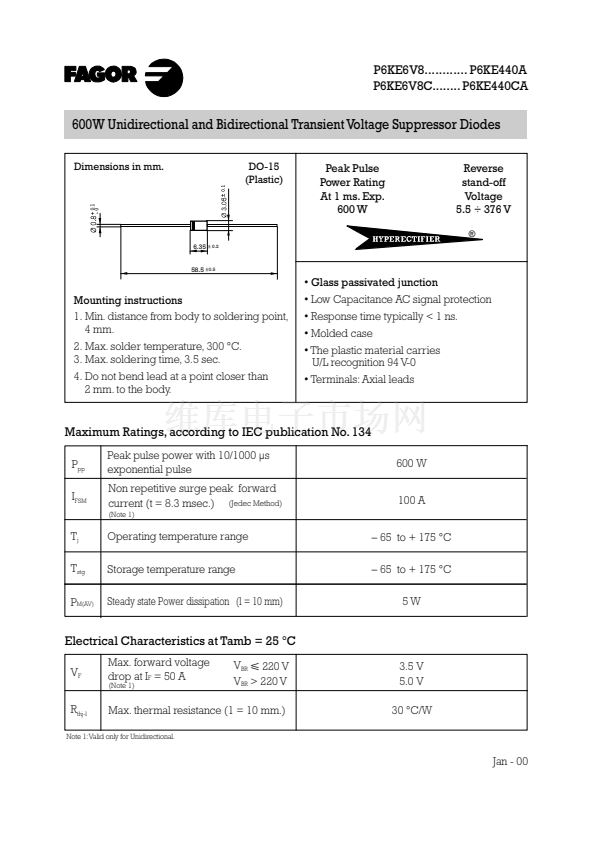

P6KE6V8............ P6KE440A
P6KE6V8C........ P6KE440CA
600W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
Dimensions in mm.
DO-15
(Plastic)
Peak Pulse
Power Rating
At 1 ms. Exp.
600 W
Reverse
stand-off
Voltage
5.5 梅 376 V
廬
6.35
鹵 0.2
58.5
鹵0.5
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
2. Max. solder temperature, 300 擄C.
3. Max. soldering time, 3.5 sec.
4. Do not bend lead at a point closer than
2 mm. to the body.
鈥?/div>
Glass passivated junction
鈥?/div>
Low Capacitance AC signal protection
鈥?/div>
Response time typically < 1 ns.
鈥?/div>
Molded case
鈥?/div>
The plastic material carries
U/L recognition 94 V-0
鈥?/div>
Terminals: Axial leads
Maximum Ratings, according to IEC publication No. 134
P
pp
I
FSM
T
j
T
stg
P
M(AV)
Peak pulse power with 10/1000 碌s
exponential pulse
Non repetitive surge peak forward
current (t = 8.3 msec.)
(Jedec Method)
(Note 1)
600 W
100 A
鈥?65 to + 175 擄C
鈥?65 to + 175 擄C
5W
Operating temperature range
Storage temperature range
Steady state Power dissipation (l = 10 mm)
Electrical Characteristics at Tamb = 25 擄C
V
F
R
thj-l
Max. forward voltage
drop at I
F
= 50 A
(Note 1)
V
BR
220 V
V
BR
> 220 V
3.5 V
5.0 V
30 擄C/W
Max. thermal resistance (1 = 10 mm.)
Note 1: Valid only for Unidirectional.
Jan - 00
