2X2 Optical Switch
OPTOMECHANICAL TYPE
Features:
Designed to meet Bellcore 1073, 1221 performance and reliability standards
Low insertion loss of 0.8 dB, typical
High repeatability and low crosstalk at <-70 dB
Reduce fiber routing problems
Patented optics permit operation from 0~65
o
C
Operate under direct control
Latching/non-latching style available
Applications:
System redundancy
Add/Drop
Ring restoration
Signal routing
R&D laboratories
Component testing
Model Name
錛?/div>
OPC-S122A-XXXX
Specifications
Insertion Loss
1,2
Return Loss
Crosstalk
Polarization Dependent Loss
Wavelength Window
3
Fiber Type
4
Switching Time (ms)
Nominal Operating Voltage
5
Control
Repeatability
Optical Input Power
Durability
Housing Dimensions (HxWxL)
Operating Temperature
Storage Temperature
Unit
dB
dB
dB
dB
nm
ms
V
dc
dB
mW
cycle
mm
o
C
o
C
Typical
0.8
-60
-70
Maximum
1.0
-55
-65
< 0.1
1280~1340 and 1520~1580
Single Mode
< 15
5
Direct
鹵0.02
鹵0.05
300
10 million
14x26x50
0 ~ 65
-40 ~ +75
All specifications referenced without connectors
1. Insertion loss based on 1550 nm single wavelength
2. Add 0.2 dB for 1310/1550 nm dual wavelength
3. Optimized at 1310 or 1550 nm (other wavelength available upon request)
4. Multimode switches available upon request
5. Operating voltage range from 4.75 to 5.5 volts (at room temperature)
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT II)
252, SHANG YING ROAD, KUEI SAN SHIANG, TAOYUAN SHIEN 333, TAIWAN R.O.C.
TEL: +886-3-3591968 FAX: +886-3-3591991
http://www.deltaww.com
1
1

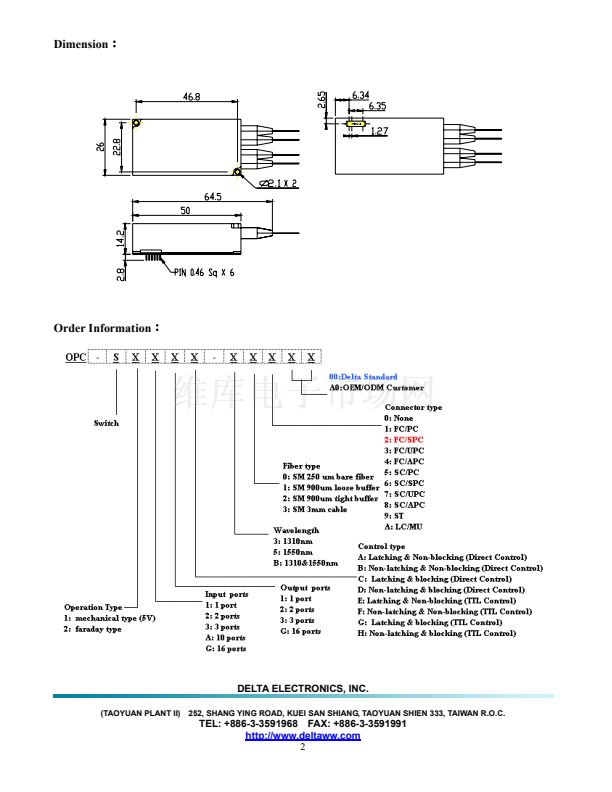

2
