DWDM System
Add/Drop Channels
CATV Fiber optic Links
Specifications錛歄PC-OCXXX-XXXXX
Add/Drop Count
Operating wavelength
Center wavelength difference
Channel spacing
Insertion loss(input to drop,add to out)
Insertion loss(Express channel)
Add/Drop uniformity()
Passband ripple
Adjacent channel crosstalk
Non-adjacent channel isolation
Add/Drop channel switching speed
Dirdctivity (all ports)
Return loss (all ports)
Polarization dependence loss (PDL)
Maximum Operating Current
Operation temperature range

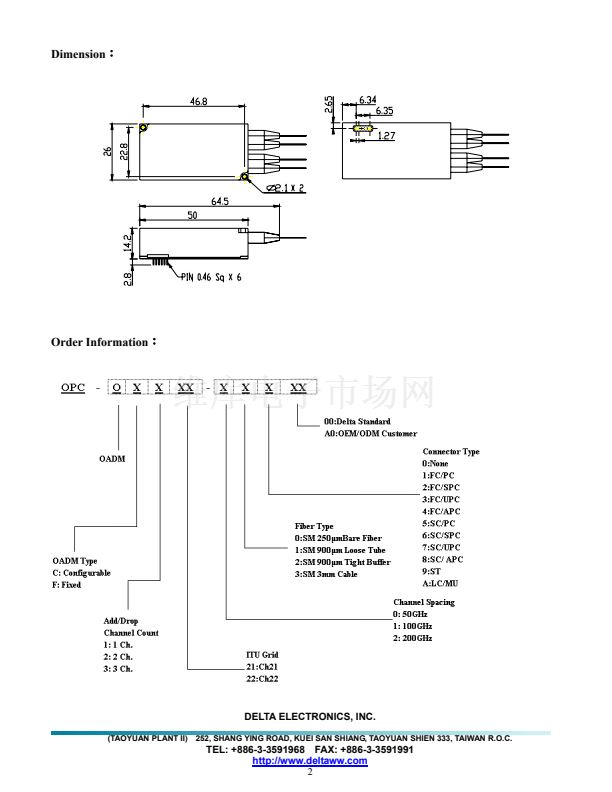

Package dimension
Storage temperature
Add:1 Drop:1
ITU Grid
< 0.1 nm
100 Ghz
3.0(max)dB
3.0(max)dB
< 1.0 dB
Max : 1.0 dB
> 25 dB
> 30 dB
< 25 ms
> 50 dB
> 50 dB
< 0.2 dB
700 mA
0~65
鈩?/div>
(L)50X(W)26X(H)14 mm
-40 ~ 75
鈩?/div>
