The OPA2677 provides the high output current and low distortion
required in emerging ADSL and HDSL2 driver applications.
Operating on a single +12V supply, the OPA2677 consumes a
low 9mA/chan quiescent current to deliver a very high 500mA
peak output current. Guaranteed output current supports even the
most demanding ADSL CPE requirements with > 380mA mini-
mum output current with low harmonic distortion. Differential
driver applications will deliver < 鈥?5dBc distortion at the peak
upstream power levels of full rate ADSL. The high 200MHz
bandwidth will also support the most demanding VDSL line
driver requirements.
Power control features are included in the SO-14 package version
to allow system power to be minimized. Two logic control lines
allow four quiescent power settings. These include full power,
power cutback for short loops, idle state for no signal transmission
but line match maintenance, and shutdown for power off with a
high impedance output.

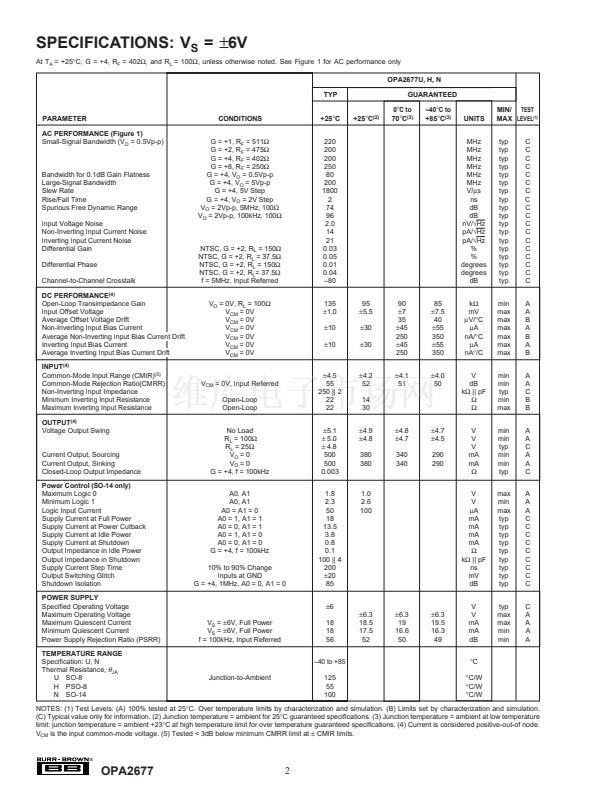

Specified on
鹵6V
supplies (to support +12V operation), the

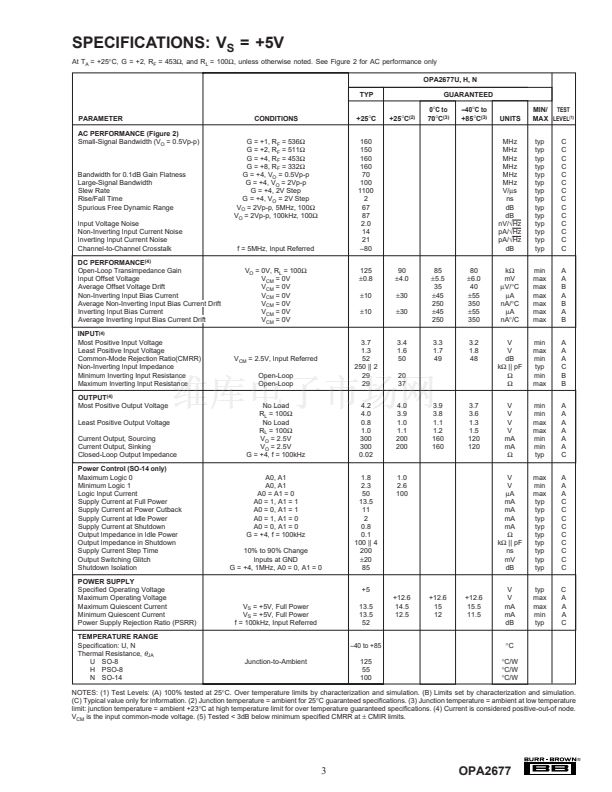

OPA2677 will also support a single +5V or dual
鹵5V
supply.
Video applications will benefit from its very high output
current to drive up to 10 parallel video loads (15鈩? with < 0.1%/
0.1擄 dG/d脴 non-linearity.
OPA2677 RELATED PRODUCTS
SINGLES
+12V
DUALS
OPA2681
OPA2607
TRIPLES
OPA3681
鈥?/div>
NOTES
Single +12V Capable
鹵12V
Capable
OPA681
20鈩?/div>
1/2
OPA2677
鈥?/div>
324鈩?/div>
17.4鈩?1:1.7
AFE
Output
+6.0V
2Vp-p
2k鈩?/div>
1碌F
17.7Vp-p
15Vp-p
Twisted Pair
100鈩?/div>
82.5鈩?/div>
324鈩?/div>
17.4鈩?/div>
2k鈩?/div>
20鈩?/div>
1/2
OPA2677
Single Supply ADSL Upstream Driver
