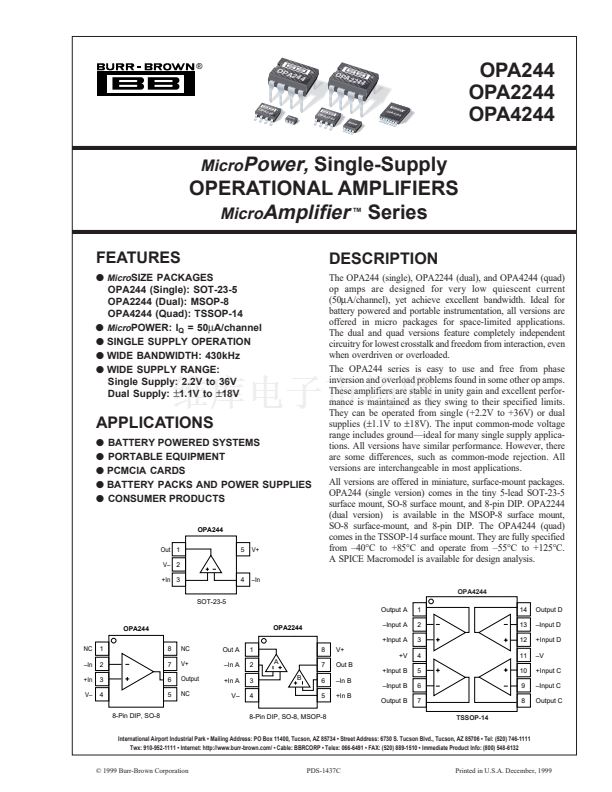

OPA244
OPA2244
OPA4244
Single-Supply
OPERATIONAL AMPLIFIERS
Micro
Amplifier
鈩?/div>
Series
FEATURES
q
Micro
SIZE PACKAGES
OPA244 (Single): SOT-23-5
OPA2244 (Dual): MSOP-8
OPA4244 (Quad): TSSOP-14
q
Micro
POWER: I
Q
= 50
碌
A/channel
q
SINGLE SUPPLY OPERATION
q
WIDE BANDWIDTH: 430kHz
q
WIDE SUPPLY RANGE:
Single Supply: 2.2V to 36V
Dual Supply:
鹵
1.1V to
鹵
18V
Micro
Power,
DESCRIPTION
The OPA244 (single), OPA2244 (dual), and OPA4244 (quad)
op amps are designed for very low quiescent current
(50碌A(chǔ)/channel), yet achieve excellent bandwidth. Ideal for
battery powered and portable instrumentation, all versions are
offered in micro packages for space-limited applications.
The dual and quad versions feature completely independent
circuitry for lowest crosstalk and freedom from interaction, even
when overdriven or overloaded.
The OPA244 series is easy to use and free from phase
inversion and overload problems found in some other op amps.
These amplifiers are stable in unity gain and excellent perfor-
mance is maintained as they swing to their specified limits.
They can be operated from single (+2.2V to +36V) or dual
supplies (鹵1.1V to
鹵18V).
The input common-mode voltage
range includes ground鈥攊deal for many single supply applica-
tions. All versions have similar performance. However, there
are some differences, such as common-mode rejection. All
versions are interchangeable in most applications.
All versions are offered in miniature, surface-mount packages.
OPA244 (single version) comes in the tiny 5-lead SOT-23-5
surface mount, SO-8 surface mount, and 8-pin DIP. OPA2244
(dual version) is available in the MSOP-8 surface mount,
SO-8 surface-mount, and 8-pin DIP. The OPA4244 (quad)
comes in the TSSOP-14 surface mount. They are fully specified
from 鈥?0擄C to +85擄C and operate from 鈥?5擄C to +125擄C.
A SPICE Macromodel is available for design analysis.
OPA4244
SOT-23-5
APPLICATIONS
q
q
q
q
q
BATTERY POWERED SYSTEMS
PORTABLE EQUIPMENT
PCMCIA CARDS
BATTERY PACKS AND POWER SUPPLIES
CONSUMER PRODUCTS
OPA244
Out 1
V鈥?2
+In 3
4
鈥揑n
5
V+
Output A
1
2
3
4
5
6
7
TSSOP-14
14
13
12
11
10
9
8
Output D
鈥揑nput D
+Input D
鈥揤
+Input C
鈥揑nput C
Output C
OPA244
NC
鈥揑n
+In
V鈥?/div>
1
2
3
4
8-Pin DIP, SO-8
8
7
6
5
NC
V+
Output
NC
OPA2244
Out A
鈥揑n A
+In A
V鈥?/div>
1
2
3
4
A
B
8
7
6
5
V+
Out B
鈥揑n B
+In B
鈥揑nput A
+Input A
+V
+Input B
鈥揑nput B
Output B
8-Pin DIP, SO-8, MSOP-8
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111
Twx: 910-952-1111 鈥?Internet: http://www.burr-brown.com/ 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏 1999 Burr-Brown Corporation
PDS-1437C
Printed in U.S.A. December, 1999
