description
These devices offer low offset and long-term stability by means of a low-noise, chopperless,
bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset
nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding
common-mode rejection, provides maximum flexibility and performance in high-noise environments and in
noninverting applications. Low bias currents and extremely high input impedances are maintained over the
entire temperature range. The OP07 is unsurpassed for low-noise, high-accuracy amplification of very-low-level
signals.
These devices are characterized for operation from 0擄C to 70擄C.
AVAILABLE OPTIONS
TA
VIO MAX
AT 25擄C
PACKAGE
SMALL OUTLINE
(D, PS)
OP07CD
0擄C to 70擄C
150
碌V
OP07DD
OP07DPS
PLASTIC DIP
(P)
OP07CP
OP07DP
The D package is available taped and reeled. Add the suffix R to the device type
(e.g., OP07CDR). The PS package is available only taped and reeled.

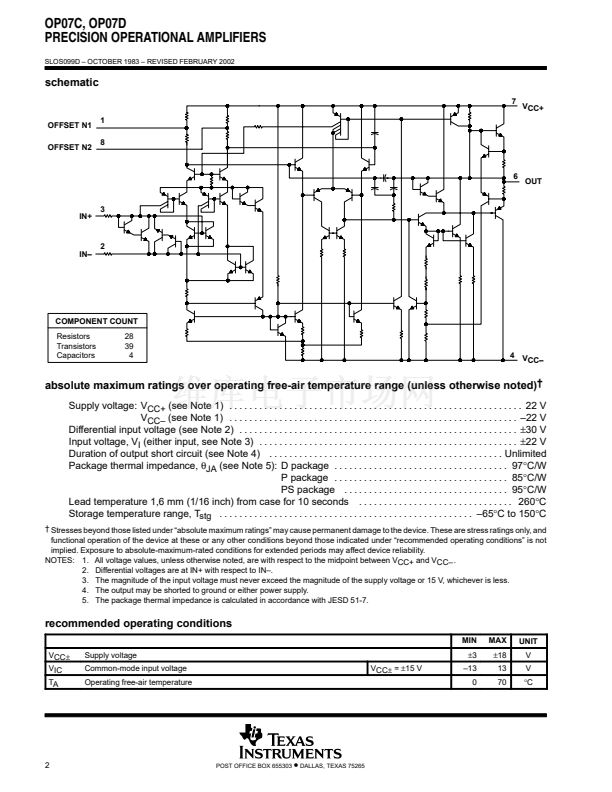

symbol
OFFSET N1
IN+
1
3
+
鈥?/div>
6
OUT
IN鈥?/div>
OFFSET N2
2
8
