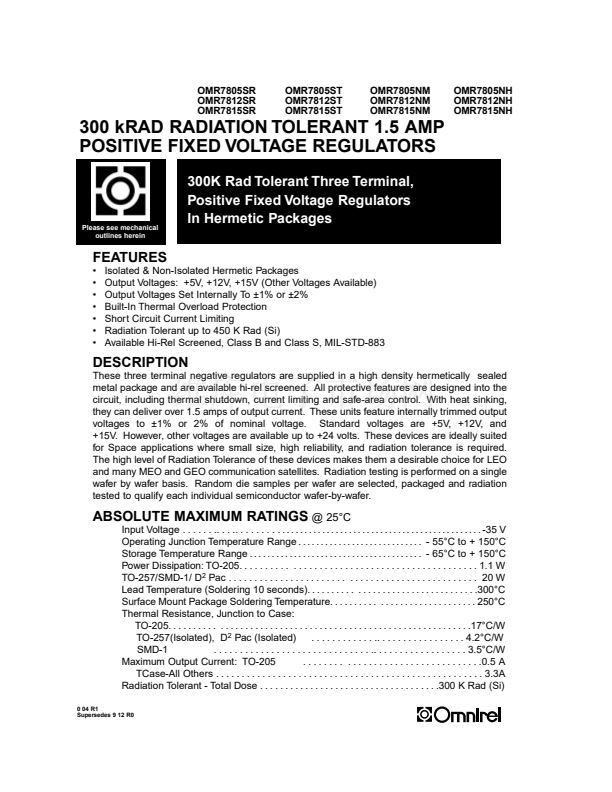

Isolated & Non-Isolated Hermetic Packages
Output Voltages: +5V, +12V, +15V (Other Voltages Available)
Output Voltages Set Internally To 鹵1% or 鹵2%
Built-In Thermal Overload Protection
Short Circuit Current Limiting
Radiation Tolerant up to 450 K Rad (Si)
Available Hi-Rel Screened, Class B and Class S, MIL-STD-883
DESCRIPTION
These three terminal negative regulators are supplied in a high density hermetically sealed
metal package and are available hi-rel screened. All protective features are designed into the
circuit, including thermal shutdown, current limiting and safe-area control. With heat sinking,
they can deliver over 1.5 amps of output current. These units feature internally trimmed output
voltages to 鹵1% or 2% of nominal voltage. Standard voltages are +5V, +12V, and
+15V. However, other voltages are available up to +24 volts. These devices are ideally suited
for Space applications where small size, high reliability, and radiation tolerance is required.

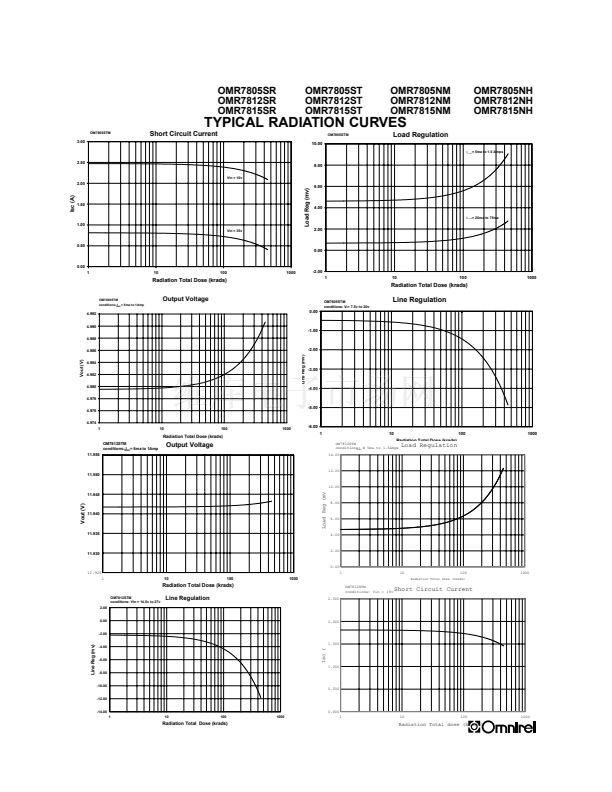

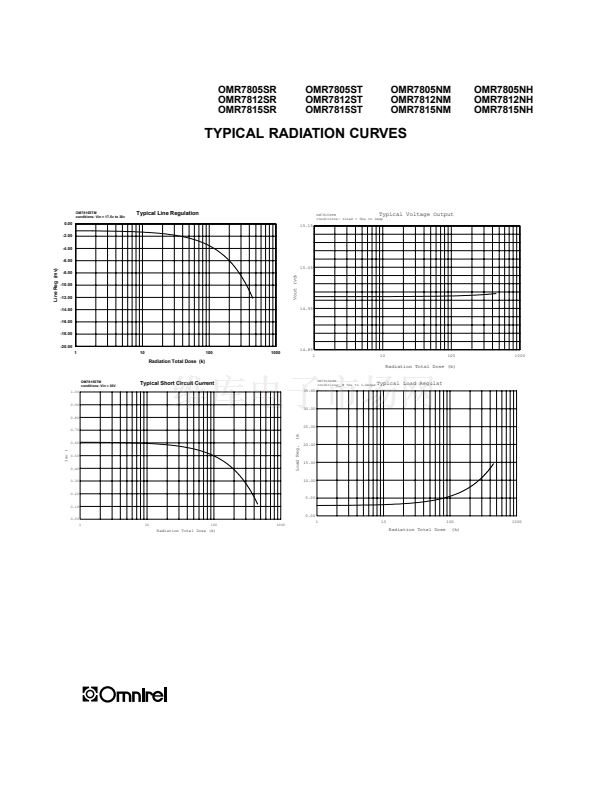

The high level of Radiation Tolerance of these devices makes them a desirable choice for LEO

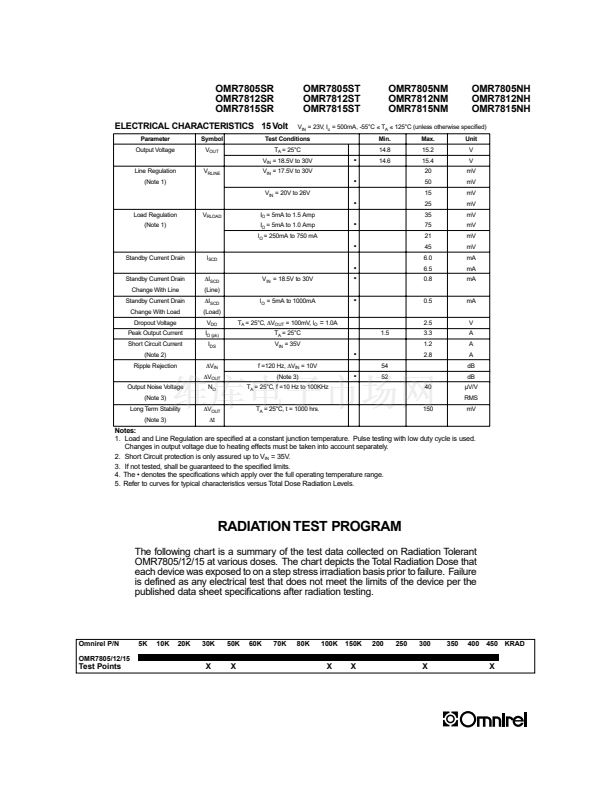

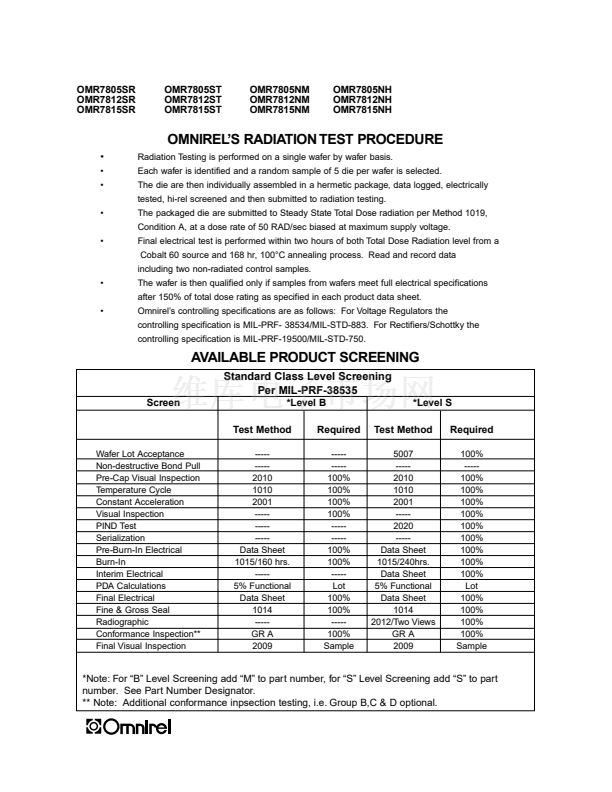

and many MEO and GEO communication satellites. Radiation testing is performed on a single
wafer by wafer basis. Random die samples per wafer are selected, packaged and radiation
tested to qualify each individual semiconductor wafer-by-wafer.
ABSOLUTE MAXIMUM RATINGS
@ 25擄C
Input Voltage . . . . . . .. . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -35 V
Operating Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 55擄C to + 150擄C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 65擄C to + 150擄C
Power Dissipation: TO-205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 W
TO-257/SMD-1/ D
2
Pac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 W
Lead Temperature (Soldering 10 seconds). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300擄C
Surface Mount Package Soldering Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250擄C
Thermal Resistance, Junction to Case:
TO-205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17擄C/W
TO-257(Isolated), D
2
Pac (Isolated)
. . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 4.2擄C/W
SMD-1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 3.5擄C/W
Maximum Output Current: TO-205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 A
TCase-All Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3A
Radiation Tolerant - Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300 K Rad (Si)

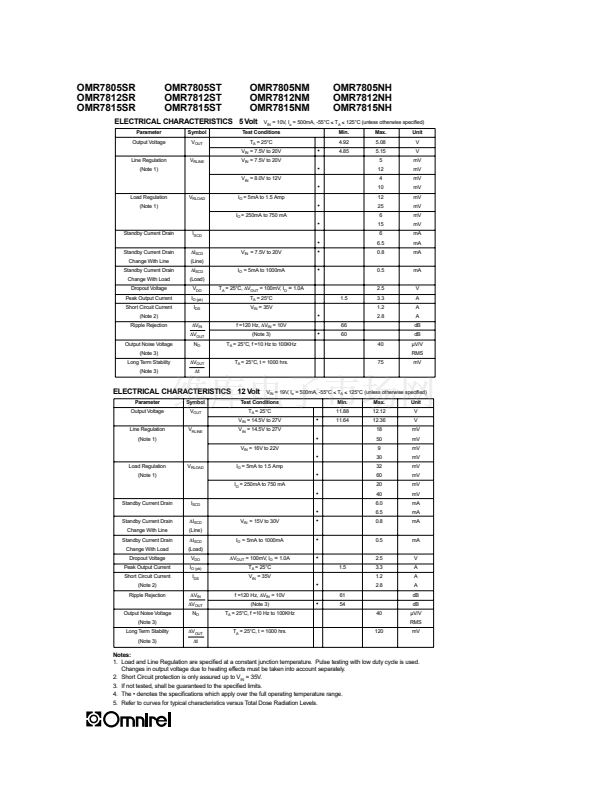

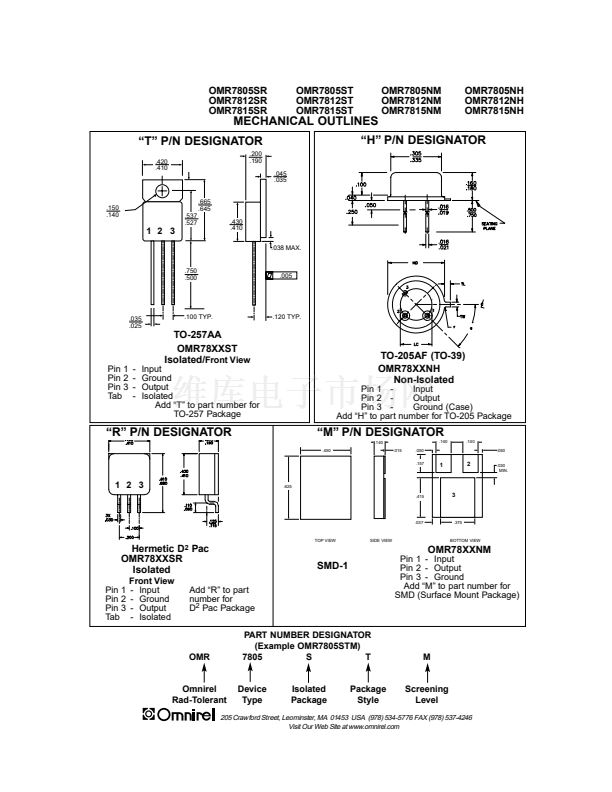

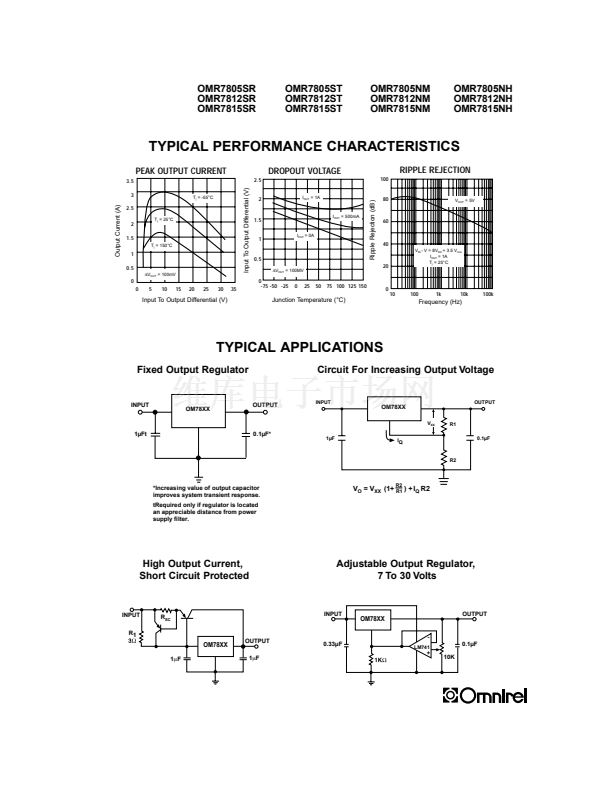

0 04 R1
Supersedes 9 12 R0
