Very Low Forward Voltage
Fast Switching Speed
Hermetic Metal Package, TO-258 Outline
Low Thermal Resistance
Isolated Package
Available Screened To MIL-S-19500, TX, TXV And S Levels
DESCRIPTION
This product is specifically designed for use at power switching frequencies in excess
of 100 kHz. The product combines two Schottky-barrier diodes in a center-tap
configuration in a single package, simplifying installation, reducing heat sink
hardware, and the need to obtain matched components. The device is ideally suited
for Hi-Rel applications where small size and hermetically sealed package is required.
Common anode configuration also available.
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25擄 C) Per Diode
Peak Inverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 60, 100 V
Maximum Average DC Output Current, Per Leg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 A
Non-Repetitive Peak Surge Current (8.3 mS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 A
Peak Reverse Transient Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 A
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 55擄 C to + 175擄 C
Junction Operating Temperature Range. . . . . . . . . . . . . . . . . . . . . . . - 55擄 C to + 150擄 C
Package Thermal Resistance, Junction-to-Case . . . . . . . . . . . . . . . . . . . . . . . . 1.7擄 C/W
3.2
SCHEMATIC
1
2
COMMON
ANODE
OMXXXXRC
PIN CONNECTION
2
COMMON
CATHODE
OMXXXXSC
1
3
1
3
3
DOUBLER
2
OMXXXXDC
1
2
3
Common cathode is standard. Contact the factory for performance
characteristics for common anode and doubler.
Z-Tab package also available.

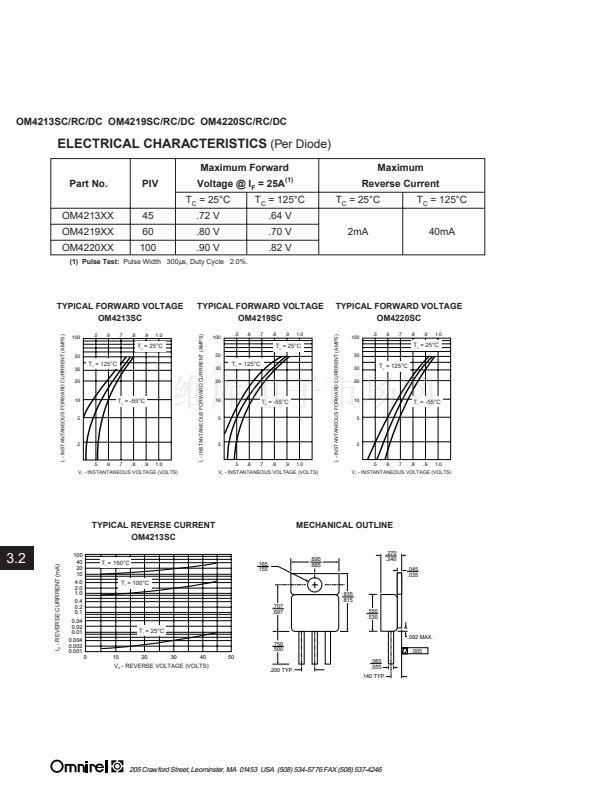

4 11 R1
Supersedes 2 11 R0
