ALARM FUNCTIONS:
Optical output down alarm, LD bias alarm
鈥?AUTOMATIC OPTICAL LAUNCHED POWER
STABILIZING
ORDERING INFORMATION
1
Optical Connector
SC
MUJ
FC
Product Number
OD-J7810-AB11
OD-J7810-AB21
OD-J7810-AB31
NOTE:
1. Please make sure of the product number listed above. The
optical connector depends on part number.
PERFORMANCE CHARACTERISTICS (OD-J7820-AB*1)
Items
Transmission Speed
Data Format
Pigtail Fiber
Performance
155.52 Mbps
Scrambled NRZ
(External Scrambler is Required.)
SMF
Pigtail Length: 550 nm
Optical Connector: SC, FC, MUJ
Output Optical Interface
Launched Power: -5 to 0 dBm
Exctinction Ratio: 10 dB MIN
Wavelength: 1480 to 1580 nm
Maximum -20 dBm width: 1 nm
Minimum side mode suppresion ratio:
30 dB
Data Interface: P-ECL
Clock Interface: P-ECL
SMF (SI-10/125)
0 to 65擄C
30 to 80 % RH (non-condense
Condition)
DC: +3.3 V
0.3 W TYP

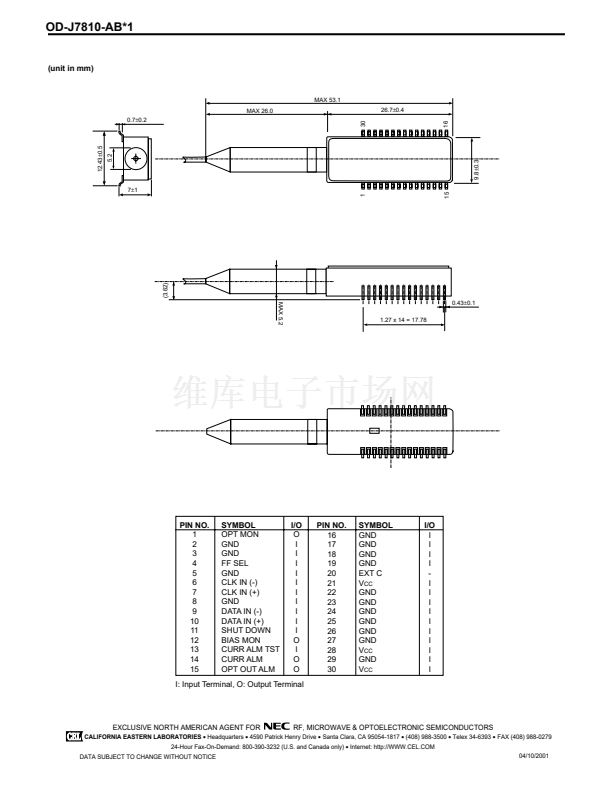

27 x 10 x 7 (mm) (refer to drawing)
Optical output down alarm; active low
LD bias alarm; active low
Signal Interface: LV-TTL
Input Electrical Interface
Applicable Transmission
Fiber Cables
Ambient Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions
Alarm Functions
