OCM224 Datasheet

  • OCM224

  • FET-OUTPUT OPTOCOUPLER

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

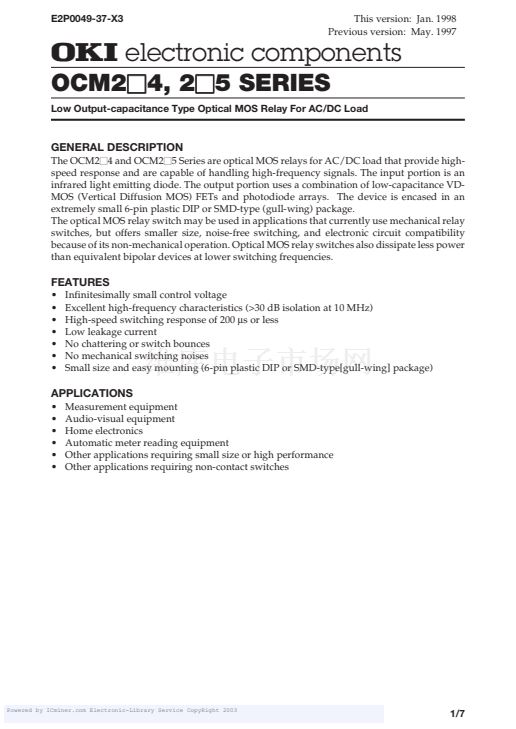

E2P0049-37-X3
OPTICAL MOS RELAYS
This version: Jan. 1998
Previous version: May. 1997
OCM2
M
4, 2
M
5 Series
隆 electronic components
OCM2
M
4, 2
M
5 SERIES
Low Output-capacitance Type Optical MOS Relay For AC/DC Load
GENERAL DESCRIPTION
The OCM2
M
4 and OCM2
M
5 Series are optical MOS relays for AC/DC load that provide high-
speed response and are capable of handling high-frequency signals. The input portion is an
infrared light emitting diode. The output portion uses a combination of low-capacitance VD-
MOS (Vertical Diffusion MOS) FETs and photodiode arrays. The device is encased in an
extremely small 6-pin plastic DIP or SMD-type (gull-wing) package.
The optical MOS relay switch may be used in applications that currently use mechanical relay
switches, but offers smaller size, noise-free switching, and electronic circuit compatibility
because of its non-mechanical operation. Optical MOS relay switches also dissipate less power
than equivalent bipolar devices at lower switching frequencies.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Infinitesimally small control voltage
Excellent high-frequency characteristics (>30 dB isolation at 10 MHz)
High-speed switching response of 200
ms
or less
Low leakage current
No chattering or switch bounces
No mechanical switching noises
Small size and easy mounting (6-pin plastic DIP or SMD-type[gull-wing] package)
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Measurement equipment
Audio-visual equipment
Home electronics
Automatic meter reading equipment
Other applications requiring small size or high performance
Other applications requiring non-contact switches
Powered by ICminer.com Electronic-Library Service CopyRight 2003
1/7
