NTE891M & NTE891SM
Integrated Circuit
Dual Audio Operational Amplifier
Description:
The NTE891M and NTE891SM are dual general purpose operational amplifiers designed with partic-
ular emphasis on performance in audio systems. Thiese devices deliver low noise, high speed and
wide bandwidth without increasing external components for all closed loop gains and is therefore opti-
mized for all preamp and high level stages in PCM and HiFi systems.
Features:
D
Wide Dynamic Range
D
Low Input Noise Voltage
D
High Slew Rate
D
High Gain Bandwidth Product
D
Wide Power Bandwidth
D
Low Distortion
D
Low Offset Voltage
D
Large Phase Margin
D

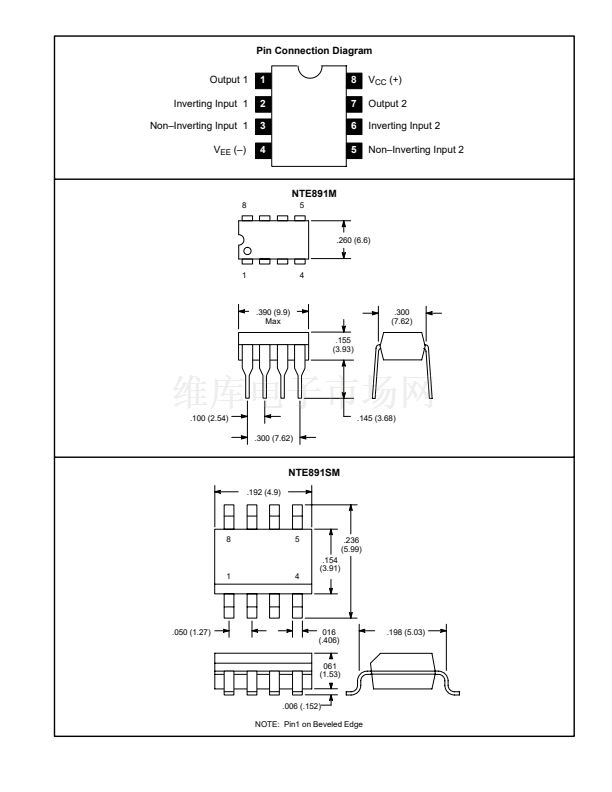

Available in 8鈥揕ead Mini DIP (NTE891M) and Surface Mount SOIC鈥? (NTE891SM)
Absolute Maximum Ratings:
Supply Voltage, V
CC
鈥?V
EE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V
Differential Input Voltage (Note 1), V
ID
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵30V
Input Voltage Range (Note 1), V
IC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵15V
Power Dissipation (Note 2), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Operating Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +85擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +150擄C
Lead Soldering Temperature (10 seconds), T
L
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260擄C
Note 1. If supply voltage is less than
鹵15V,
it is equal to supply voltage.
Note 2. This is a permissible value at T
A
