NL37WZ14US Datasheet

  • NL37WZ14US

  • Triple Schmitt-Trigger Inverter

  • 6頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NL37WZ14
Triple Schmitt鈭扵rigger
Inverter
The NL37WZ14 is a high performance triple inverter with
Schmitt鈭扵rigger inputs operating from a 1.65 to 5.5 V supply.
Pin configuration and function are the same as the NL37WZ04, but
the inputs have hysteresis, and with its Schmitt trigger function, the
NL37WZ14 can be used as a line receiver which will receive slow
input signals. The NL37WZ14 is capable of transforming slowly
changing input signals into sharply defined, jitter鈭抐ree output signals.
In addition, it has a greater noise margin than conventional inverters.
The NL37WZ14 has hysteresis between the positive鈭抔oing and the
negative鈭抔oing input thresholds (typically 1.0 V) which is determined
internally by transistor ratios and is essentially insensitive to
temperature and supply voltage variations.
鈥?/div>
Designed for 1.65 V to 5.5 V V
CC
Operation
鈥?/div>
Over Voltage Tolerant Inputs and Outputs
鈥?/div>
LVTTL Compatible 鈭?Interface Capability with 5 V TTL Logic
with V
CC
= 3 V
鈥?/div>
LVCMOS Compatible
鈥?/div>
24 mA Balanced Output Sink and Source Capability
鈥?/div>
Near Zero Static Supply Current Substantially Reduces System
Power Requirements
鈥?/div>
Current Drive Capability is 24 mA at the Outputs
鈥?/div>
Chip Complexity: FET = 94
http://onsemi.com
MARKING
DIAGRAM
8
8
1
US8
US SUFFIX
CASE 493
LA
1
D
LA = Device Code
D = Date Code
PIN ASSIGNMENT
1
2
3
IN A1
OUT Y3
IN A2
GND
OUT Y2
IN A3
OUT Y1
V
CC
IN A1
1
8
V
CC
4
5
OUT Y3
2
7
OUT Y1
6
7
8
IN A2
3
6
IN A3
FUNCTION TABLE
GND
4
5
OUT Y2
A Input
L
H
Y Output
H
L
Figure 1. Pinout
(Top View)
IN A1
IN A2
IN A3
OUT Y1
OUT Y2
OUT Y3
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
Figure 2. Logic Symbol
漏
Semiconductor Components Industries, LLC, 2004
1
March, 2004 鈭?Rev. 3
Publication Order Number:
NL37WZ14/D

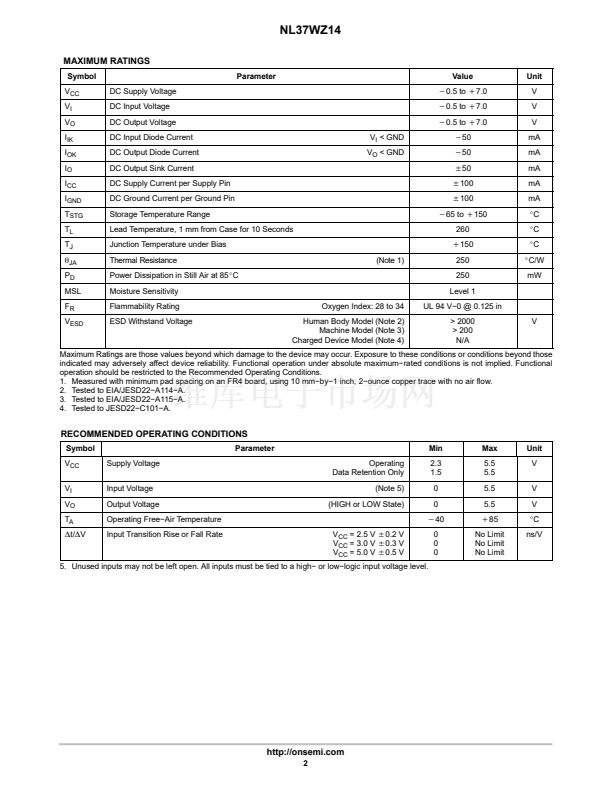

NL37WZ14US 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 37WZ

  • 逆變器，緩沖器

  • 3

  • 1

  • 施密特觸發器

  • 1.65 V ~ 5.5 V

  • 1µA

  • 32mA，32mA

  • 0.4 V ~ 1.2 V

  • 1.8 V ~ 3.6 V

  • 4.9ns @ 5V，50pF

  • -55°C ~ 125°C

  • 表面貼裝

  • US8

  • 8-VFSOP（0.091"，2.30mm 寬）

  • 帶卷 (TR)

  • NL37WZ14USOSTR
