6.5 dB Typical Conversion Loss
+3 to +7 dBm LO Drive
HMIC IC Process
Silicon Low Barrier Schottky Barrier Diodes
DC - 400 MHz IF Bandwidth
Low Cost Miniature Plastic Package
SOT-25 Outline
3
2
1
Description

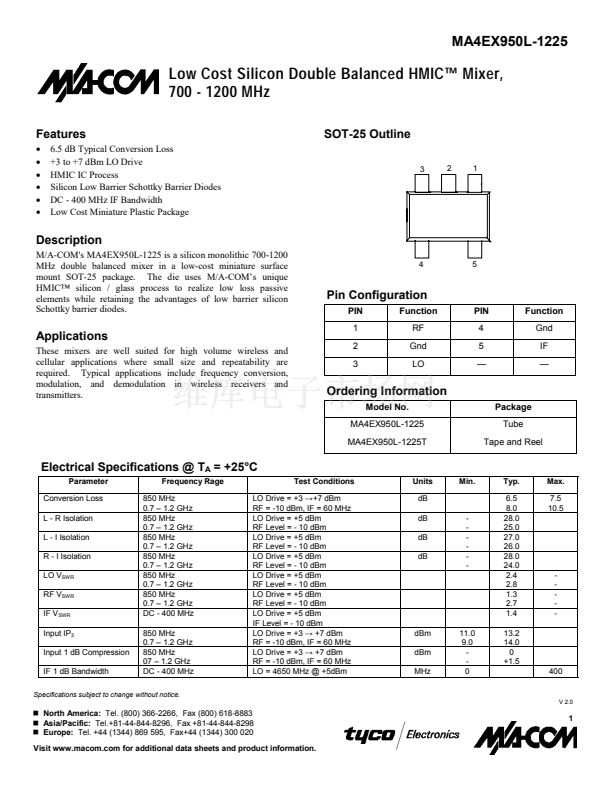

M/A-COM's MA4EX950L-1225 is a silicon monolithic 700-1200
MHz double balanced mixer in a low-cost miniature surface
mount SOT-25 package. The die uses M/A-COM鈥檚 unique
HMIC鈩?silicon / glass process to realize low loss passive
elements while retaining the advantages of low barrier silicon
Schottky barrier diodes.
4
5
Pin Configuration
PIN
1
2
3
Function
RF
Gnd
LO
PIN
4
5
鈥?/div>
Function
Gnd
IF
鈥?/div>
Applications
These mixers are well suited for high volume wireless and
cellular applications where small size and repeatability are
required. Typical applications include frequency conversion,
modulation, and demodulation in wireless receivers and
transmitters.
Ordering Information
Model No.
MA4EX950L-1225
MA4EX950L-1225T
Package
Tube
Tape and Reel
Electrical Specifications @ T
A
= +25擄C
=
Parameter
Conversion Loss
L - R Isolation
L - I Isolation
R - I Isolation
LO V
SWR
RF V
SWR
IF V
SWR
Input IP
3
Input 1 dB Compression
IF 1 dB Bandwidth
Frequency Rage
850 MHz
0.7 鈥?1.2 GHz
850 MHz
0.7 鈥?1.2 GHz
850 MHz
0.7 鈥?1.2 GHz
850 MHz
0.7 鈥?1.2 GHz
850 MHz
0.7 鈥?1.2 GHz
850 MHz
0.7 鈥?1.2 GHz
DC - 400 MHz
850 MHz
0.7 鈥?1.2 GHz
850 MHz
07 鈥?1.2 GHz
DC - 400 MHz
Test Conditions
LO Drive = +3
鈫?7
dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
RF Level = - 10 dBm
LO Drive = +5 dBm
IF Level = - 10 dBm
LO Drive = +3
鈫?/div>
+7 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +3
鈫?/div>
+7 dBm
RF = -10 dBm, IF = 60 MHz
LO = 4650 MHz @ +5dBm
Units
dB
dB
dB
dB
-
-
-
-
-
-
Min.
Typ.
6.5
8.0
28.0
25.0
27.0
26.0
28.0
24.0
2.4
2.8
1.3
2.7
1.4
13.2
14.0
0
+1.5
400
Max.
7.5
10.5
-
-
-
-
-
dBm
dBm
MHz
11.0
9.0
-
-
0
Specifications subject to change without notice.
V 2.0
North America:
Tel. (800) 366-2266, Fax (800) 618-8883
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
