On-Board Type (DC) EMI Suppression Filters (EMIFILr)

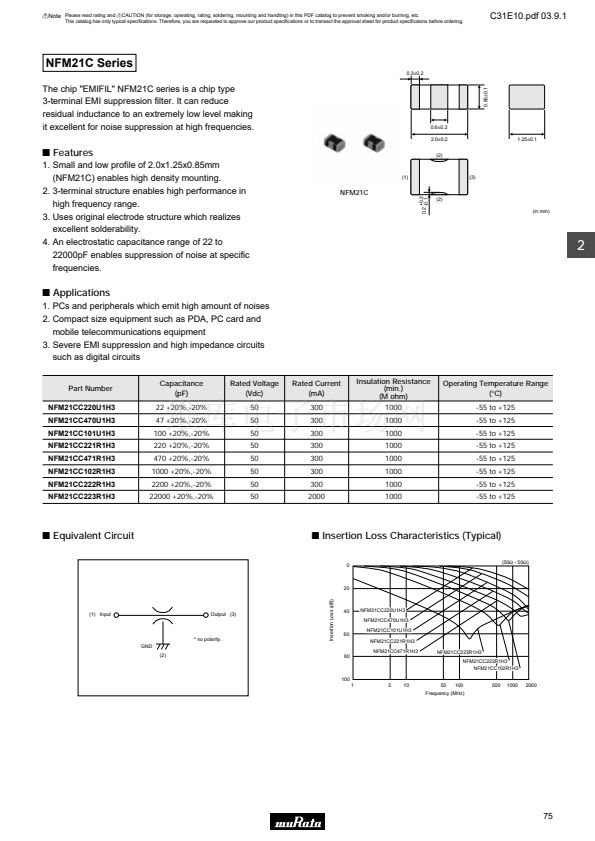

Chip EMIFILr Capacitor Type NFM18C/NFM21C/NFM3DC/NFM41C Series
NFM18C Series
The NFM18CC series is a 1.6x0.8mm EMI suppression
filter for signal lines which has a 3-terminal
structure using Murata's multilayer technology.
0.25鹵0.1
0.4鹵0.1
0.8鹵0.1
s
Features
0.2 min.
1.6鹵0.1
(2)
0.8鹵0.1
2
1. Ultra small size in 1.6x0.8x0.6mm enable high
density mounting.
2. 3-terminal structure with low residual inductance
(ESL)* characteristics achieves large insertion
loss characteristics even in high frequency area.
3. The NFM18cc series covers capacitance range from
22 to 22000pF.
* Not exceeding one-tenth of monolithic ceramic
capacitors (2-terminal).
(1)
(3)
NFM18C
(2)
0.2鹵0.1
(in mm)
s
Applications
1. EMI suppression of circuit for insertion loss in
quantity.
2. Noise suppression up to GHz.
Capacitance
(pF)
22 +20%,-20%
47 +20%,-20%
100 +20%,-20%
220 +20%,-20%
470 +20%,-20%
1000 +20%,-20%
2200 +20%,-20%
22000 +20%,-20%
Rated Voltage
(Vdc)
16
16
16
16
16
16
16
16
Rated Current
(mA)
300
300
300
300
300
300
300
1000
Insulation Resistance
(min.)
(M ohm)
1000
1000
1000
1000
1000
1000
1000
1000
Operating Temperature Range
(擄C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
Part Number
NFM18CC220U1C3
NFM18CC470U1C3
NFM18CC101R1C3
NFM18CC221R1C3
NFM18CC471R1C3
NFM18CC102R1C3
NFM18CC222R1C3
NFM18CC223R1C3
s
Equivalent Circuit
s
Insertion Loss Characteristics (Typical)
0
10
20
Insertion Loss (dB)
30
40
50
60
70
80
0
1
10
Frequency (MHz)
100
1000 2000
NFM18CC223R1C3
NFM18CC222R1C3
NFM18CC102R1C3
NFM18CC471R1C3
NFM18CC221R1C3
NFM18CC101R1C3
NFM18CC470U1C3
NFM18CC220U1C3
(50鈩?- 50鈩?
(1) Input
Output (3)
* no polarity.
GND
(2)
74
0.6鹵0.1
