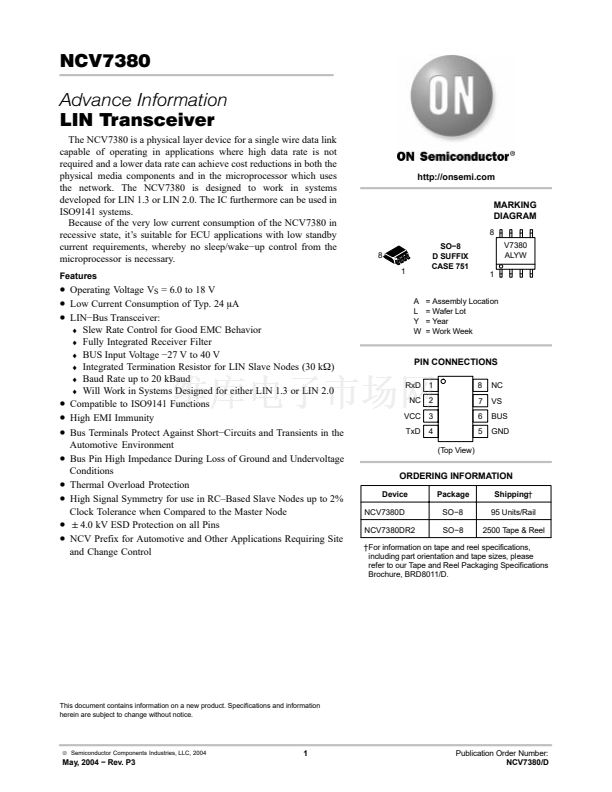

NCV7380
Advance Information
LIN Transceiver
The NCV7380 is a physical layer device for a single wire data link
capable of operating in applications where high data rate is not
required and a lower data rate can achieve cost reductions in both the
physical media components and in the microprocessor which uses
the network. The NCV7380 is designed to work in systems
developed for LIN 1.3 or LIN 2.0. The IC furthermore can be used in
ISO9141 systems.
Because of the very low current consumption of the NCV7380 in
recessive state, it鈥檚 suitable for ECU applications with low standby
current requirements, whereby no sleep/wake鈭抲p control from the
microprocessor is necessary.
Features
http://onsemi.com
MARKING
DIAGRAM
8
8
1
SO鈭?
D SUFFIX
CASE 751
1
A
L
Y
W
= Assembly Location
= Wafer Lot
= Year
= Work Week
V7380
ALYW
鈥?/div>
Operating Voltage V
S
= 6.0 to 18 V
鈥?/div>
Low Current Consumption of Typ. 24
mA
鈥?/div>
LIN鈭払us Transceiver:
Slew Rate Control for Good EMC Behavior
Fully Integrated Receiver Filter
鈾?/div>
BUS Input Voltage 鈭?7 V to 40 V
鈾?/div>
Integrated Termination Resistor for LIN Slave Nodes (30 kW)
鈾?/div>
Baud Rate up to 20 kBaud
鈾?/div>
Will Work in Systems Designed for either LIN 1.3 or LIN 2.0
Compatible to ISO9141 Functions
High EMI Immunity
Bus Terminals Protect Against Short鈭扖ircuits and Transients in the
Automotive Environment
Bus Pin High Impedance During Loss of Ground and Undervoltage
Conditions
Thermal Overload Protection
High Signal Symmetry for use in RC鈥揃ased Slave Nodes up to 2%
Clock Tolerance when Compared to the Master Node
"4.0
kV ESD Protection on all Pins
NCV Prefix for Automotive and Other Applications Requiring Site
and Change Control
鈾?/div>
鈾?/div>
PIN CONNECTIONS
RxD 1
NC 2
VCC 3
TxD
4
(Top View)
8
7
6
5
NC
VS
BUS
GND
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ORDERING INFORMATION
Device
NCV7380D
NCV7380DR2
Package
SO鈭?
SO鈭?
Shipping鈥?/div>
95 Units/Rail
2500 Tape & Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
This document contains information on a new product. Specifications and information
herein are subject to change without notice.
漏
Semiconductor Components Industries, LLC, 2004
1
May, 2004 鈭?Rev. P3
Publication Order Number:
NCV7380/D
