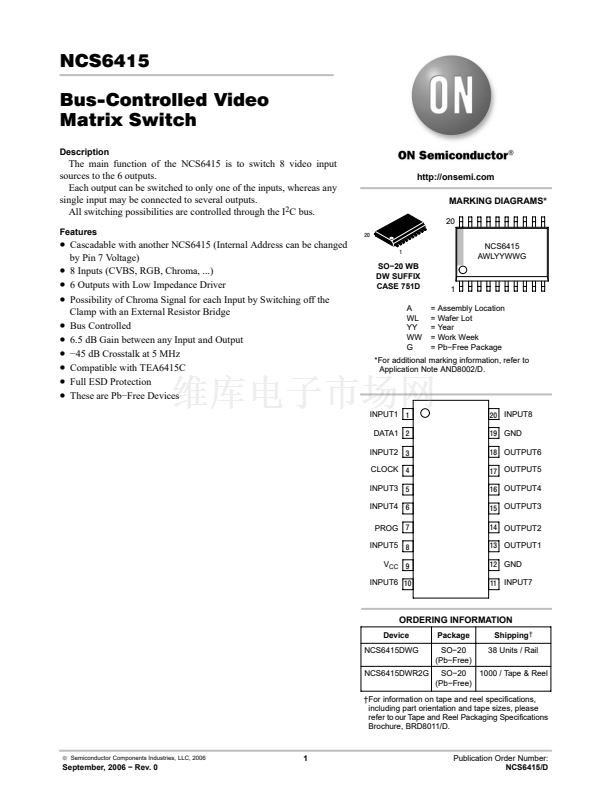

by Pin 7 Voltage)
8 Inputs (CVBS, RGB, Chroma, ...)
6 Outputs with Low Impedance Driver
Possibility of Chroma Signal for each Input by Switching off the
Clamp with an External Resistor Bridge
Bus Controlled
6.5 dB Gain between any Input and Output
鈭?5 dB Crosstalk at 5 MHz
Compatible with TEA6415C
Full ESD Protection
These are Pb鈭扚ree Devices
20
1
NCS6415
AWLYYWWG
SO鈭?0 WB
DW SUFFIX

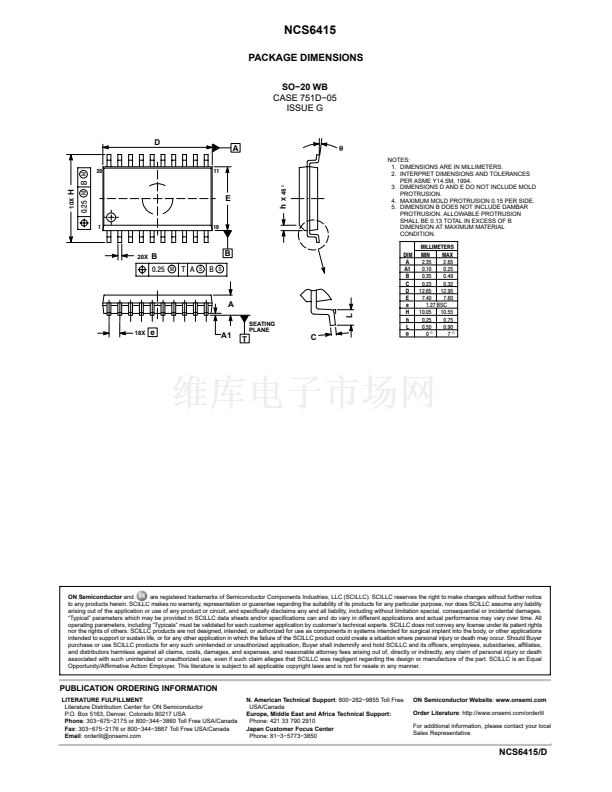

CASE 751D
A
WL
YY
WW
G
1
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb鈭扚ree Package
*For additional marking information, refer to
Application Note AND8002/D.
INPUT1
1
DATA1
2
INPUT2
3
CLOCK
4
INPUT3
5
INPUT4
6
PROG
7
INPUT5
8
V
CC
9
INPUT6
10
20
INPUT8
19
GND
18
OUTPUT6
17
OUTPUT5
16
OUTPUT4
15
OUTPUT3
14
OUTPUT2
13
OUTPUT1
12
GND
11
INPUT7
ORDERING INFORMATION
Device
NCS6415DWG
NCS6415DWR2G
Package
SO鈭?0
(Pb鈭扚ree)
Shipping
鈥?/div>
38 Units / Rail
SO鈭?0
1000 / Tape & Reel
(Pb鈭扚ree)
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2006
1
September, 2006 鈭?Rev. 0
Publication Order Number:
NCS6415/D
