NCP803SN463T1 Datasheet

  • NCP803SN463T1

  • Very Low Supply Current 3-Pin Microprocessor Reset Monitor

  • 59.08KB

  • 8頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NCP803
Very Low Supply Current
3鈭扨in Microprocessor
Reset Monitor

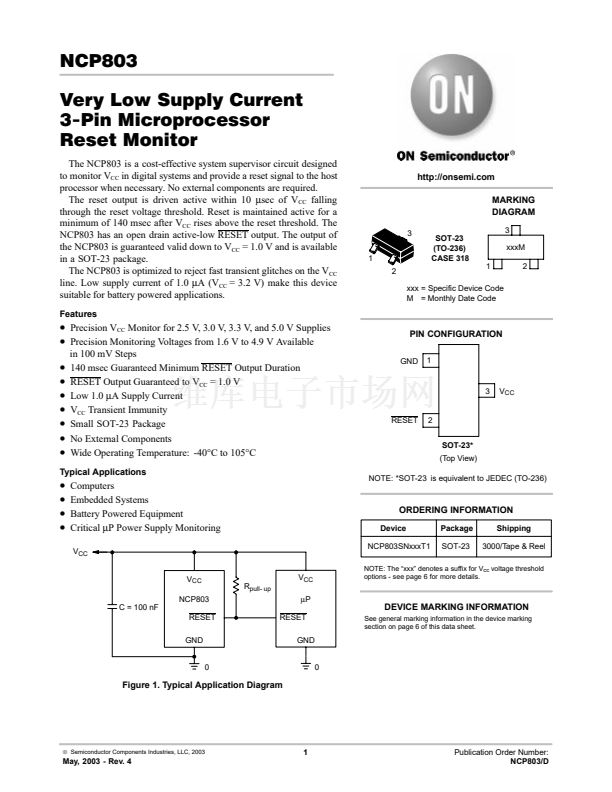

The NCP803 is a cost-effective system supervisor circuit designed
to monitor V
CC
in digital systems and provide a reset signal to the host
processor when necessary. No external components are required.
The reset output is driven active within 10
碌sec
of V
CC
falling
through the reset voltage threshold. Reset is maintained active for a
minimum of 140 msec after V
CC
rises above the reset threshold. The
NCP803 has an open drain active-low RESET output. The output of
the NCP803 is guaranteed valid down to V
CC
= 1.0 V and is available
in a SOT-23 package.
The NCP803 is optimized to reject fast transient glitches on the V
CC
line. Low supply current of 1.0
碌A(chǔ)
(V
CC
= 3.2 V) make this device
suitable for battery powered applications.
Features
http://onsemi.com
MARKING
DIAGRAM
3
1
2
3
SOT-23
(TO-236)
CASE 318
1
xxx = Specific Device Code
M = Monthly Date Code
xxxM
2
鈥?/div>
Precision V
CC
Monitor for 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
鈥?/div>
Precision Monitoring Voltages from 1.6 V to 4.9 V Available
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
in 100 mV Steps
140 msec Guaranteed Minimum RESET Output Duration
RESET Output Guaranteed to V
CC
= 1.0 V
Low 1.0
碌A(chǔ)
Supply Current
V
CC
Transient Immunity
Small SOT-23 Package
No External Components
Wide Operating Temperature: -40擄C to 105擄C
Computers
Embedded Systems
Battery Powered Equipment
Critical
碌P
Power Supply Monitoring
V
CC
V
CC
NCP803
C = 100 nF
RESET
GND
0
V
CC
R
pull- up
碌P
RESET
GND
0
PIN CONFIGURATION
GND
1
3
V
CC
RESET
2
SOT-23*
(Top View)
Typical Applications
NOTE: *SOT-23 is equivalent to JEDEC (TO-236)
ORDERING INFORMATION
Device
NCP803SNxxxT1
Package
SOT-23
Shipping
3000/Tape & Reel
NOTE: The 鈥渪xx鈥?denotes a suffix for V
cc
voltage threshold
options - see page 6 for more details.
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 6 of this data sheet.
Figure 1. Typical Application Diagram
漏
Semiconductor Components Industries, LLC, 2003
1
May, 2003 - Rev. 4
Publication Order Number:
NCP803/D

NCP803SN463T1 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 監控器

  • -

  • 簡單復位/加電復位

  • 1

  • 開路漏極或開路集電極

  • 低有效

  • 最小為 140 ms

  • 4.63V

  • -40°C ~ 105°C

  • 表面貼裝

  • TO-236-3，SC-59，SOT-23-3

  • SOT-23-3（TO-236）

  • 帶卷 (TR)

  • NCP803SN463T1OS
