NCP5663DS15R4G Datasheet

  • NCP5663DS15R4G

  • Low Output Voltage, Ultra−Fast 3.0 A Low Dropout Linea...

  • 12頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

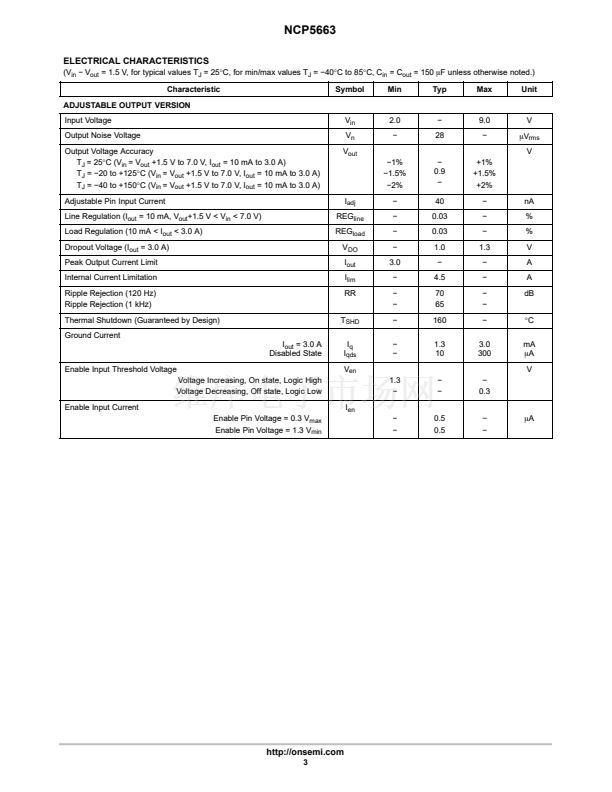

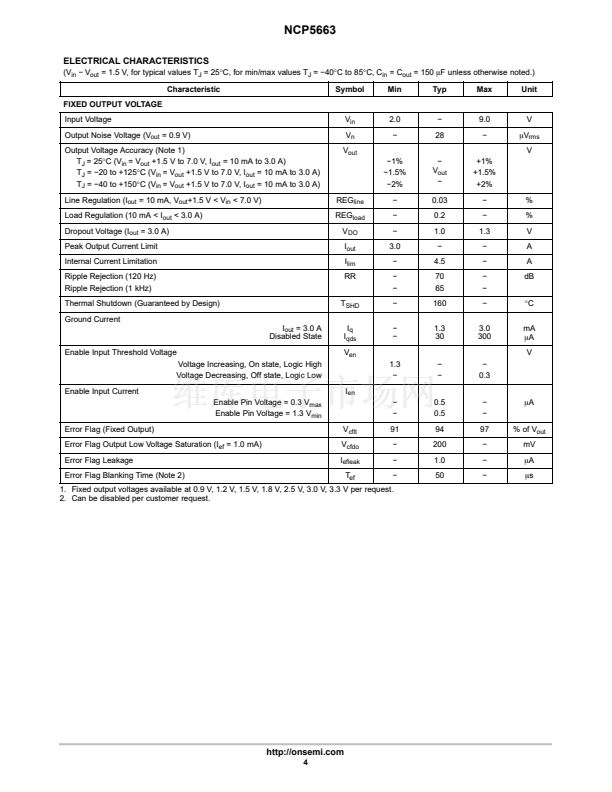

PDF預覽

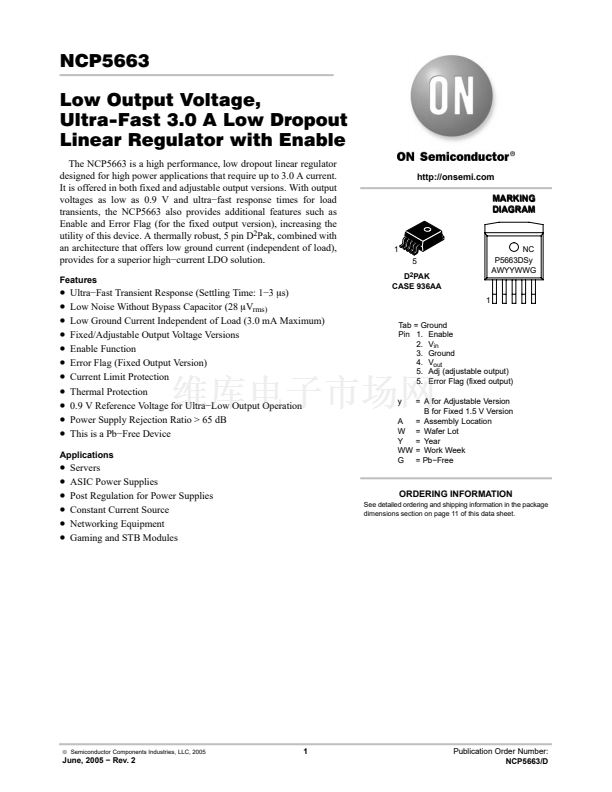

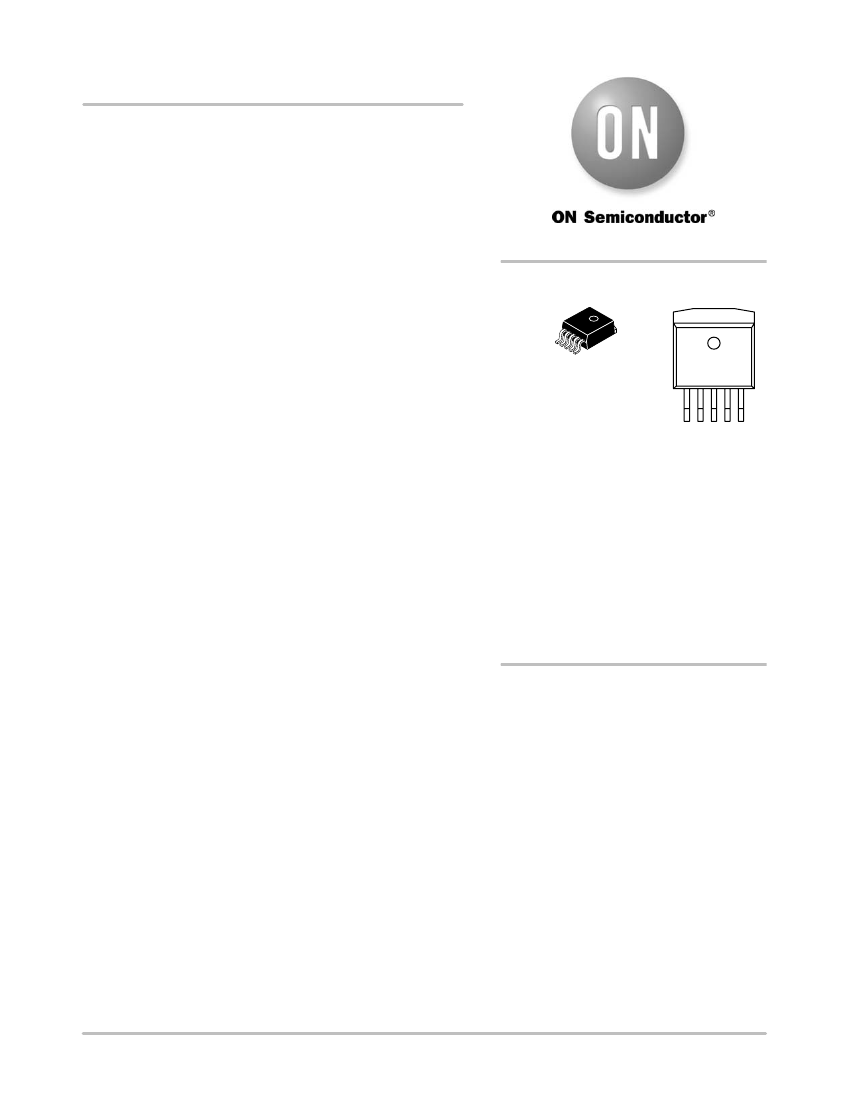

NCP5663
Low Output Voltage,
Ultra鈭扚ast 3.0 A Low Dropout
Linear Regulator with Enable

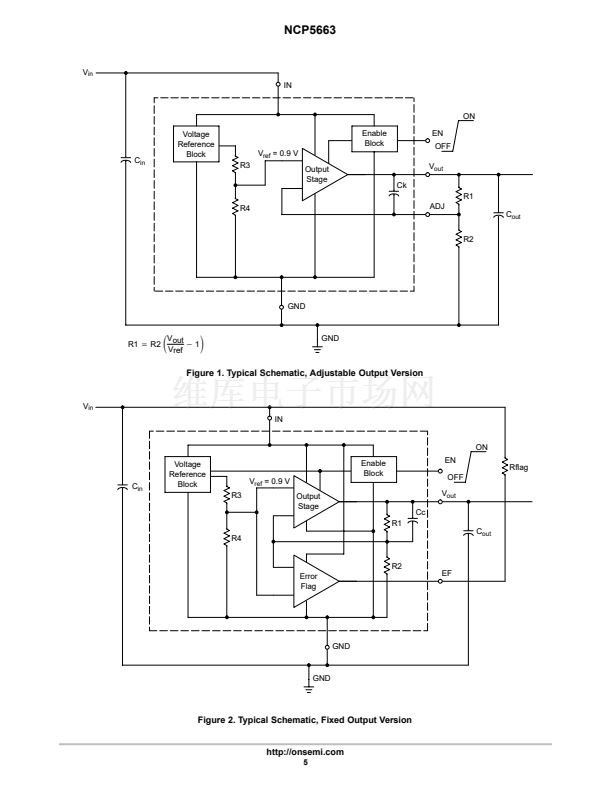

The NCP5663 is a high performance, low dropout linear regulator
designed for high power applications that require up to 3.0 A current.
It is offered in both fixed and adjustable output versions. With output
voltages as low as 0.9 V and ultra鈭抐ast response times for load
transients, the NCP5663 also provides additional features such as
Enable and Error Flag (for the fixed output version), increasing the
utility of this device. A thermally robust, 5 pin D
2
Pak, combined with
an architecture that offers low ground current (independent of load),
provides for a superior high鈭抍urrent LDO solution.
Features
http://onsemi.com
MARKING
DIAGRAM
1
5
D
2
PAK
CASE 936AA
1
NC
P5663DSy
AWYYWWG
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

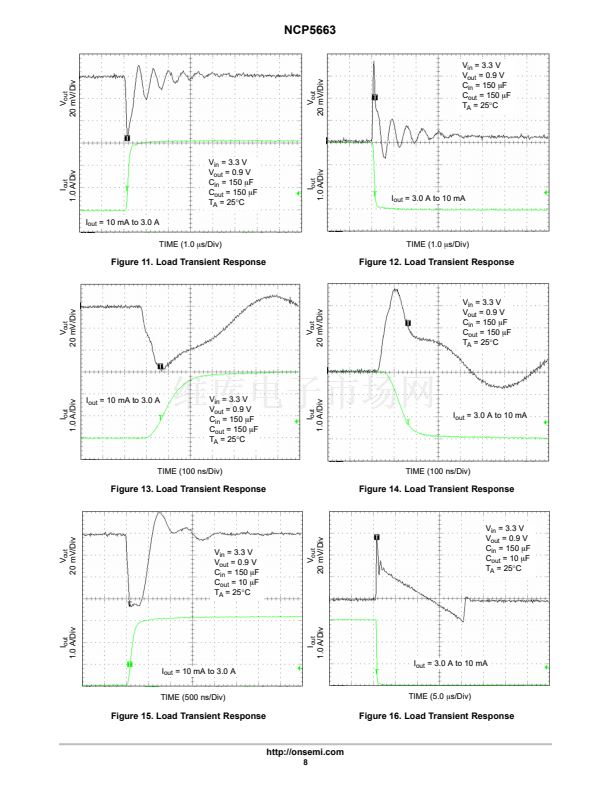

Ultra鈭扚ast Transient Response (Settling Time: 1鈭?
ms)

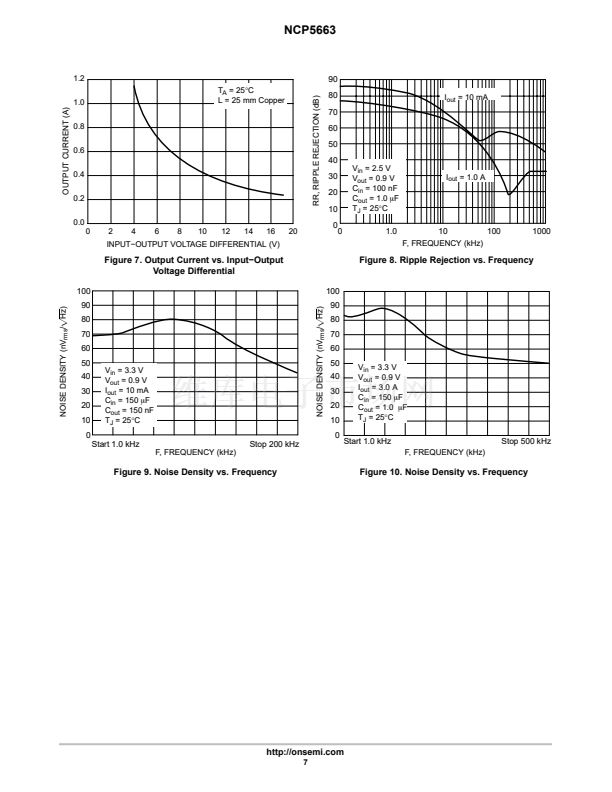

Low Noise Without Bypass Capacitor (28
mV
rms)
Low Ground Current Independent of Load (3.0 mA Maximum)
Fixed/Adjustable Output Voltage Versions
Enable Function
Error Flag (Fixed Output Version)
Current Limit Protection
Thermal Protection
0.9 V Reference Voltage for Ultra鈭扡ow Output Operation
Power Supply Rejection Ratio > 65 dB
This is a Pb鈭扚ree Device
Servers
ASIC Power Supplies
Post Regulation for Power Supplies
Constant Current Source
Networking Equipment
Gaming and STB Modules

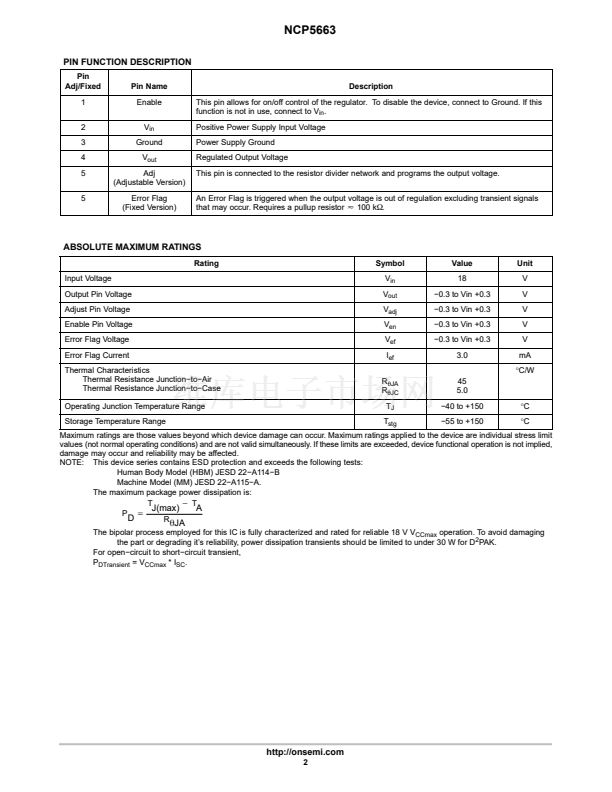

Tab = Ground
Pin 1. Enable
2. V
in
3. Ground
4. V
out
5. Adj (adjustable output)
5. Error Flag (fixed output)
= A for Adjustable Version
B for Fixed 1.5 V Version
A
= Assembly Location
W = Wafer Lot
Y
= Year
WW = Work Week
G = Pb鈭扚ree
y
Applications

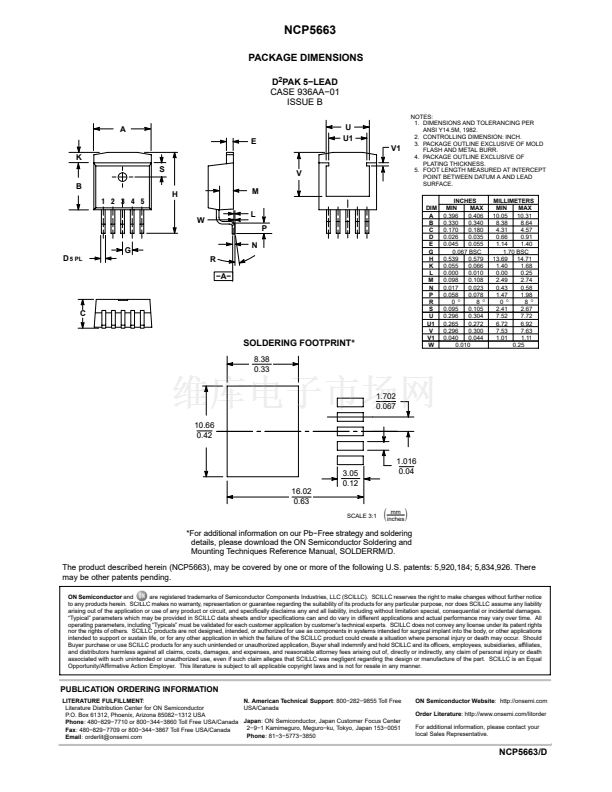

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 11 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2005
1
June, 2005 鈭?Rev. 2
Publication Order Number:
NCP5663/D

NCP5663DS15R4G 產品屬性

  • 1

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 正，固定式

  • 1.5V

  • 最高 9V

  • 1V @ 3A

  • 1

  • 3A

  • -40°C ~ 85°C

  • 表面貼裝

  • TO-263-6，D²Pak（5 引線+接片），TO-263BA

  • D2PAK-5

  • 剪切帶 (CT)

  • NCP5663DS15R4GOSCT
