NCP1403

15 V/50 mA PFM Step鈭扷p

DC鈭扗C Converter

The NCP1403 is a monolithic PFM step-up DC-DC converter.

This device is designed to boost a single Lithium or two cell

AA/AAA battery voltage up to 15 V (with internal MOSFET) output

for handheld applications. A pull-up Chip Enable feature is built

with this device to extend battery-operating life. Besides, the device

can also be incorporated in step-down, and voltage-inverting

configurations. This device is available in space-saving TSOP-5

package.

Features

http://onsemi.com

5

1

TSOP-5

CASE 483

SN SUFFIX

鈥?/div>

82% Efficiency at V

OUT

= 15 V, I

OUT

= 50 mA, V

IN

= 5.0 V

78% Efficiency at V

OUT

= 15 V, I

OUT

= 30 mA, V

IN

= 3.6 V

Low Operating Current of 19

mA

(No Switching)

Low Shutdown Current of 0.3

mA

Low Start-up Voltage of 1.3 V Typical at 0 mA

Output Voltage up to 15 V with Built-in 16 V MOSFET Switch

PFM Switching Frequency up to 300 kHz

Chip Enable

Low Profile and Minimum External Parts

Micro Miniature TSOP-5 Package

PIN CONNECTIONS AND

MARKING DIAGRAM

CE

FB

VDD

1

DCEYW

2

3

5

LX

4

GND

(Top View)

Typical Applications

LCD Bias

Personal Digital Assistants (PDA)

Digital Still Camera

Handheld Games

Hand-held Instrument

Device

NCP1403SNT1

DCE = Device Marking

Y

= Year

W = Work Week

ORDERING INFORMATION

Package

TSOP-5

Shipping

3000/T

ape & Reel

漏

Semiconductor Components Industries, LLC, 2002

1

December, 2002 - Rev. 4

Publication Order Number:

NCP1403/D

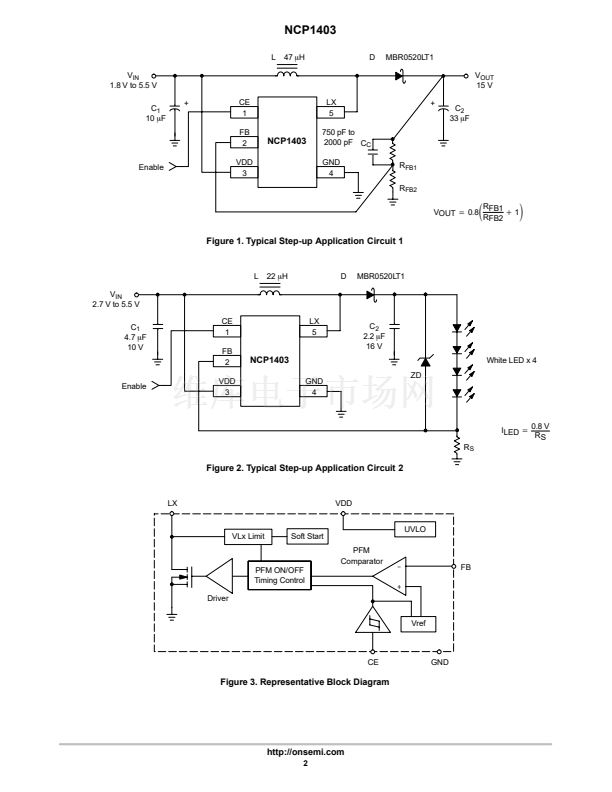

標準包裝
1
類別
集成電路 (IC)
家庭
PMIC - 穩壓器 - DC DC 開關穩壓器
系列
-
類型
降壓（降壓），升壓（升壓），反相
輸出類型
可調式
輸出數
1
輸出電壓
1.8 V ~ 15 V
輸入電壓
1.2 V ~ 5.5 V
PWM 型
-
頻率 - 開關
300kHz
電流 - 輸出
50mA
同步整流器
無
工作溫度
-40°C ~ 85°C
安裝類型
表面貼裝
封裝/外殼
6-TSOP（0.059"，1.50mm 寬）5 引線
包裝
剪切帶 (CT)
供應商設備封裝
5-TSOP
其它名稱
NCP1403SNT1OSCT
