NCN6004AFTBR2 Datasheet

  • NCN6004AFTBR2

  • Dual SAM/SIM Interface Integrated Circuit

  • 40頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

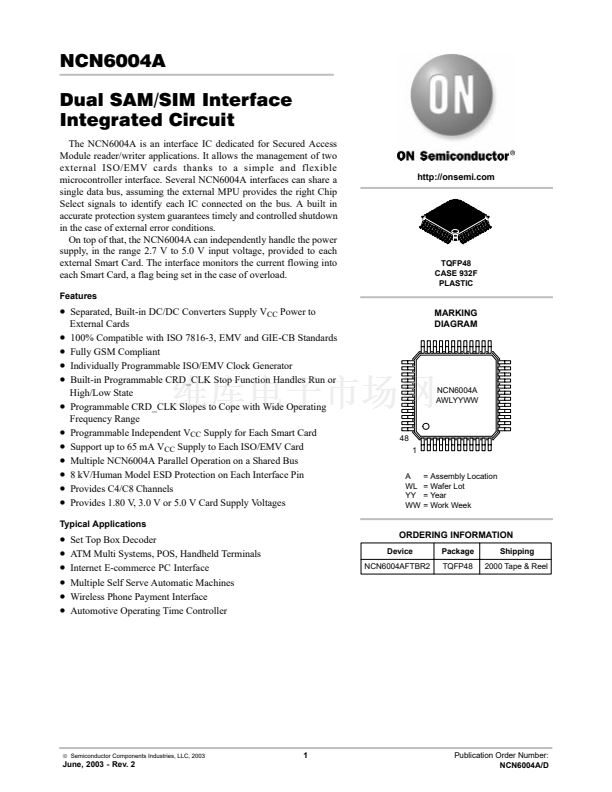

NCN6004A
Dual SAM/SIM Interface
Integrated Circuit
The NCN6004A is an interface IC dedicated for Secured Access
Module reader/writer applications. It allows the management of two
external ISO/EMV cards thanks to a simple and flexible
microcontroller interface. Several NCN6004A interfaces can share a
single data bus, assuming the external MPU provides the right Chip
Select signals to identify each IC connected on the bus. A built in
accurate protection system guarantees timely and controlled shutdown
in the case of external error conditions.
On top of that, the NCN6004A can independently handle the power
supply, in the range 2.7 V to 5.0 V input voltage, provided to each
external Smart Card. The interface monitors the current flowing into
each Smart Card, a flag being set in the case of overload.
Features
http://onsemi.com
TQFP48
CASE 932F
PLASTIC
鈥?/div>
Separated, Built-in DC/DC Converters Supply V
CC
Power to
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
External Cards
100% Compatible with ISO 7816-3, EMV and GIE-CB Standards
Fully GSM Compliant
Individually Programmable ISO/EMV Clock Generator
Built-in Programmable CRD_CLK Stop Function Handles Run or
High/Low State
Programmable CRD_CLK Slopes to Cope with Wide Operating
Frequency Range
Programmable Independent V
CC
Supply for Each Smart Card
Support up to 65 mA V
CC
Supply to Each ISO/EMV Card
Multiple NCN6004A Parallel Operation on a Shared Bus
8 kV/Human Model ESD Protection on Each Interface Pin
Provides C4/C8 Channels
Provides 1.80 V, 3.0 V or 5.0 V Card Supply Voltages
MARKING
DIAGRAM
NCN6004A
AWLYYWW
48
1
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
Typical Applications
Set Top Box Decoder
ATM Multi Systems, POS, Handheld Terminals
Internet E-commerce PC Interface
Multiple Self Serve Automatic Machines
Wireless Phone Payment Interface
Automotive Operating Time Controller
ORDERING INFORMATION
Device
NCN6004AFTBR2
Package
TQFP48
Shipping
2000 Tape & Reel
漏
Semiconductor Components Industries, LLC, 2003
1
June, 2003 - Rev. 2
Publication Order Number:
NCN6004A/D

NCN6004AFTBR2 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 接口 - 專用

  • -

  • PC，PDA

  • 微控制器

  • 1.8 V ~ 5.5 V

  • 48-TQFP 裸露焊盤

  • 48-TQFP（7x7）

  • 帶卷 (TR)

  • 表面貼裝

  • NCN6004AFTBR2OSTR
