NCN6001DTBR2 Datasheet

  • NCN6001DTBR2

  • Compact Smart Card Interface IC

  • 335.30KB

  • 36頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NCN6001
Compact Smart Card
Interface IC
The NCN6001 is an integrated circuit dedicated to the smart card
interface applications. The device handles any type of smart card
through a simple and flexible microcontroller interface. On top of that,
thanks to the built-in chip select pin, several couplers can be
connected in parallel.
The device is particularly suited for low cost, low power
applications, with high extended battery life coming from extremely
low quiescent current.
Features
http://onsemi.com
MARKING
DIAGRAM
20
TSSOP - 20
DTB SUFFIX
CASE 948E
1
NCN
6001
ALYW
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
100% Compatible with ISO 7816-3, EMV and GIE-CB Standards
Fully GSM Compliant
Wide Battery Supply Voltage Range: 2.7 < V
CC
< 5.5 V
Programmable CRD_VCC Supply Handles 1.8 V, 3.0 V or 5.0 V
Card Operation
Programmable Rise and Fall Card Clock Slopes
Programmable Card Clock Divider
Built-in Chip Select Logic Allows Parallel Coupling Operation
ESD Protection on Card Pins (8.0 kV, Human Body Model)
Supports up to 40 MHz Input Clock
Built-in Programmable CRD_CLK Stop Function Handles Run or
Low State
Programmable CRD_CLK Slopes to Cope with Wide Operating
Frequency Range
Fast CRD_VCC Turn-on and Turn-off Sequence
E-Commerce Interface
Automatic Teller Machine (ATM) Smart Card
Point of Sales (POS) System
Pay TV System
20
1
A
L
Y
W
= Assembly Location
= Wafer Lot
= Year
= Work Week

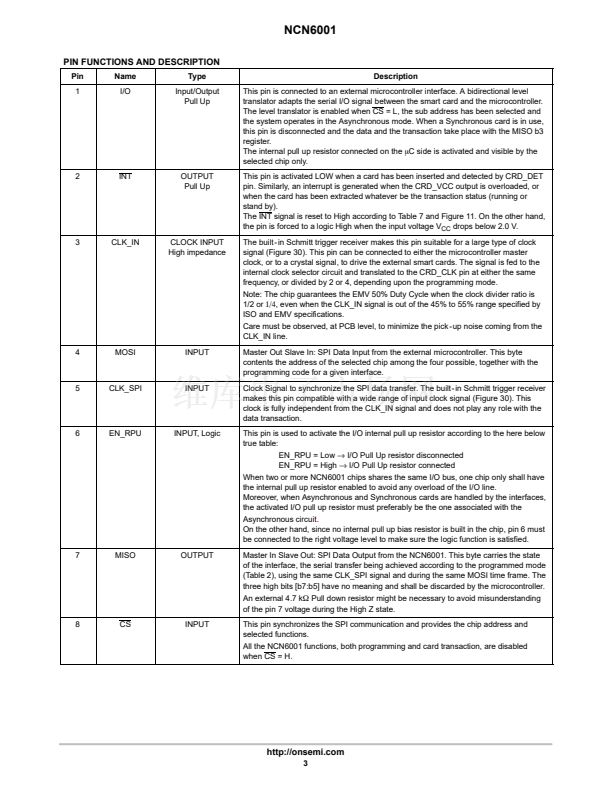

PIN CONNECTIONS
I/O 1
INT 2
CLK_IN 3
MOSI 4
CLK_SPI 5
EN_RPU 6
MISO 7
CS 8
V
CC
9
Lout_L 10
(Top View)
20 CRD_IO
19 CRD_RST
18 CRD_DET
17 CRD_CLK
16 GND
15 C4/S0
14 C8/S1
13 CRD_VCC
12 Lout_H
11 PWR_GND

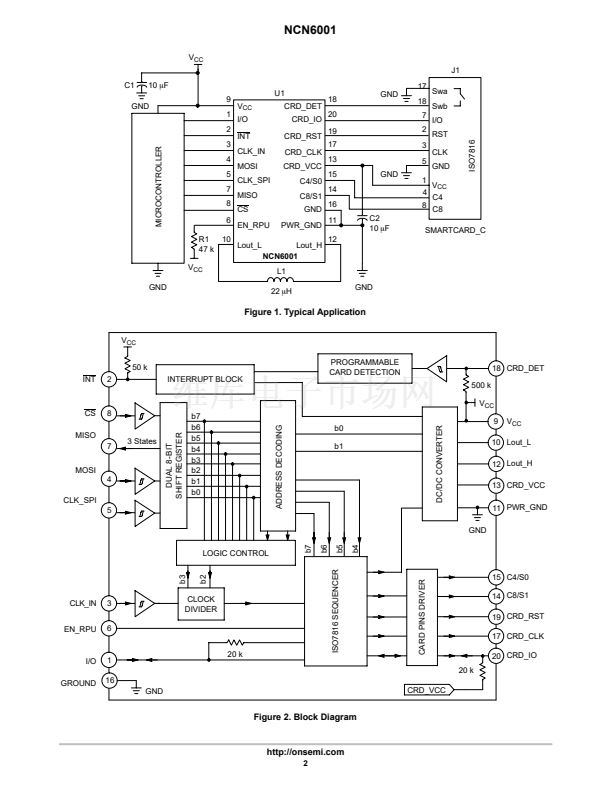

Typical Applications
ORDERING INFORMATION
Device
NCN6001DTBR2
Package
Shipping
TSSOP - 20 2500 Tape & Reel
漏
Semiconductor Components Industries, LLC, 2003
1
July, 2003 - Rev. 2
Publication Order Number:
NCN6001/D

NCN6001DTBR2 產品屬性

  • 2,500

  • 集成電路 (IC)

  • 接口 - 專用

  • -

  • 智能卡

  • 微控制器

  • 2.75 V ~ 5.5 V

  • 20-TSSOP（0.173"，4.40mm 寬）

  • 20-TSSOP

  • 帶卷 (TR)

  • 表面貼裝

  • NCN6001DTBR2OSTR
