NC7SV74K8X Datasheet

  • NC7SV74K8X

  • TinyLogic ULP-A D-Type Flip-Flop

  • 10頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NC7SV74 TinyLogic錚?ULP-A D-Type Flip-Flop with Preset and Clear
June 2003
Revised March 2004
NC7SV74
TinyLogic
錚?/div>
ULP-A D-Type Flip-Flop
with Preset and Clear
General Description
The NC7SV74 is a single D-type CMOS Flip-Flop with pre-
set and clear from Fairchild鈥檚 Ultra Low Power-A (ULP-A)
Series of TinyLogic
錚?/div>
in both the space saving US8 and
MicroPak
錚?/div>
packages. ULP-A is ideal for applications that
require extreme high speed, high drive and low power. This
product is designed for a wide low voltage operating range
(0.9V to 3.6V V
CC
) and applications that require more drive
and speed than the TinyLogic ULP series, but still require
low power consumption.
The NC7SV74 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS
technology to achieve high-speed operation while main-
taining low CMOS power dissipation.

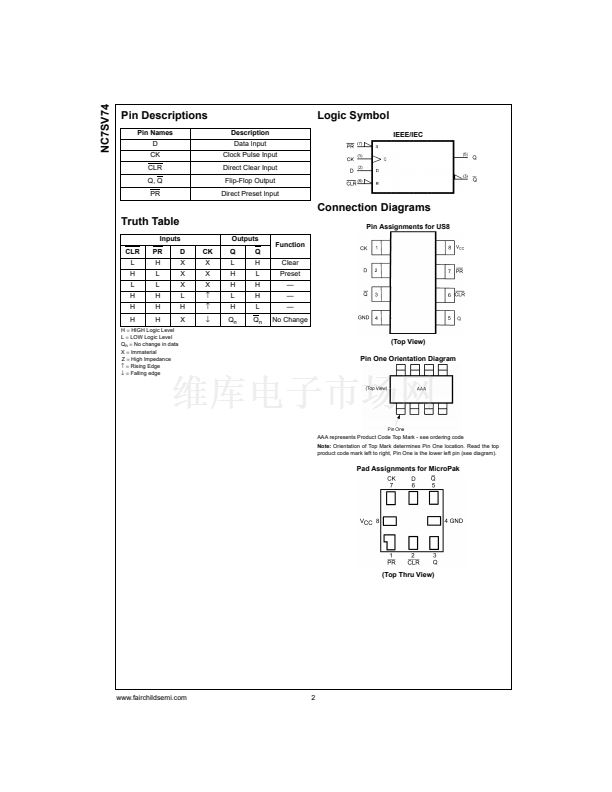

The signal level applied to the D input is transferred to the
Q output during the positive going transition of the CLK
pulse.
Features
s
Space saving US8 surface mount package
s
MicroPak leadless package
s

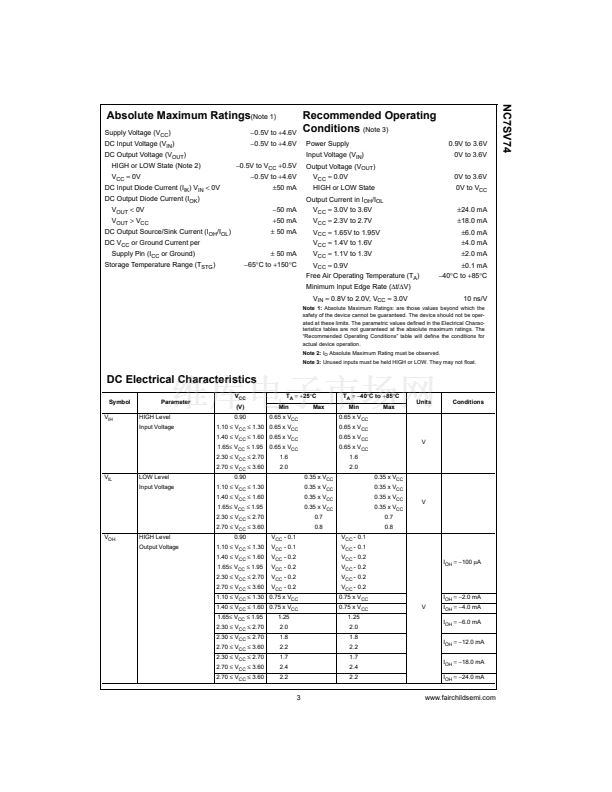

0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/Os at V
CC
from 0.9V to 3.6V
s

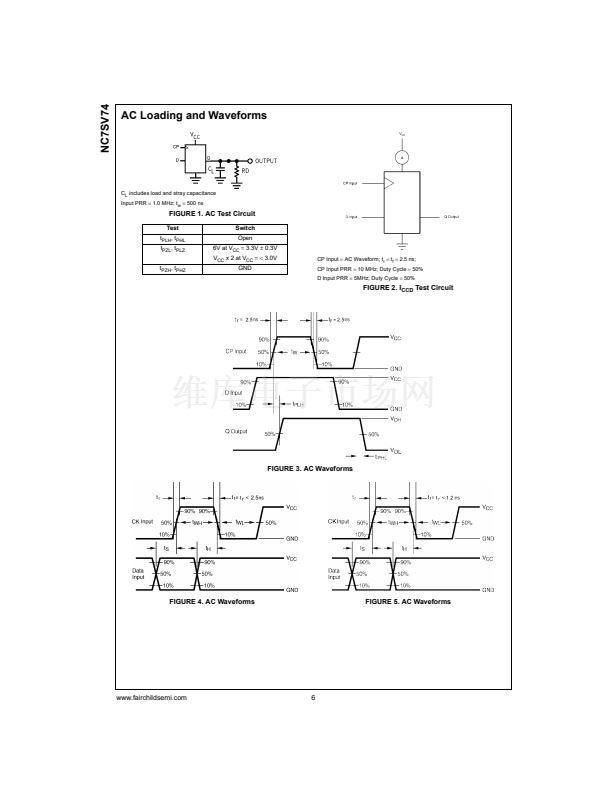

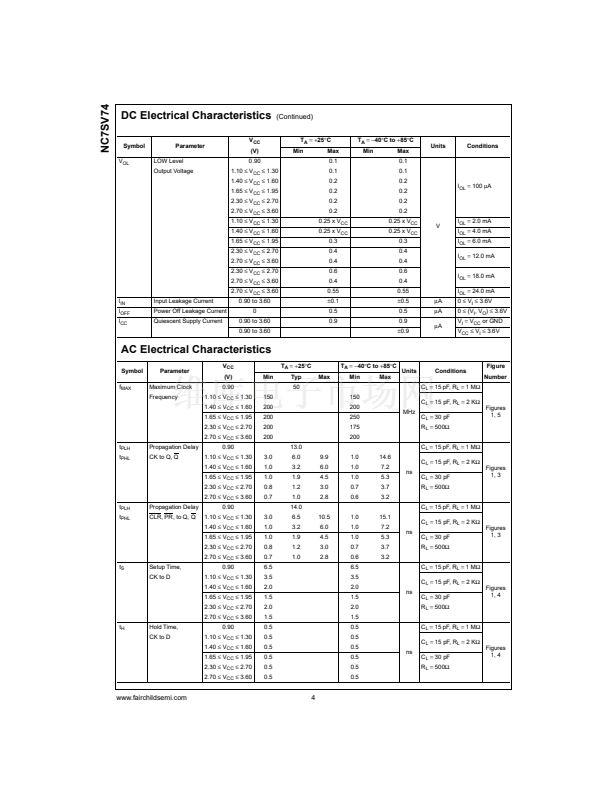

Extremely High Speed t
PD
1.0 ns typ for 2.7V to 3.6V V
CC
1.2 ns typ for 2.3V to 2.7V V
CC
1.9 ns typ for 1.65V to 1.95V V
CC
3.2 ns typ for 1.4V to 1.6V V
CC
6.0 ns typ for 1.1V to 1.3V V
CC
13.0 ns typ for 0.9V V
CC
s
Power-Off high impedance inputs and outputs
s
High Static Drive (I
OH
/I
OL
)
鹵
24.0 mA
鹵
18.0 mA
鹵
6.0 mA
鹵
4.0 mA
鹵
2.0 mA
鹵
0.1 mA
@ 3.00V V
CC
@ 2.30V V
CC
@ 1.65V V
CC
@ 1.4V V
CC
@ 1.1V V
CC
@ 0.9V V
CC
s
Ultra low dynamic power
Ordering Code:
Product
Order
Number
NC7SV74K8X
NC7SV74L8X
Package
MAB08A
MAC08A
Code
V74
Z4
Package Description

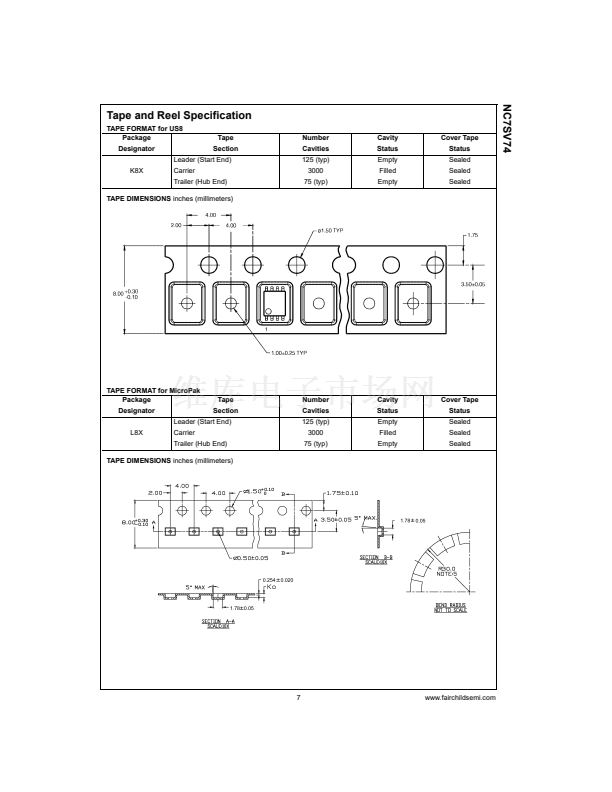

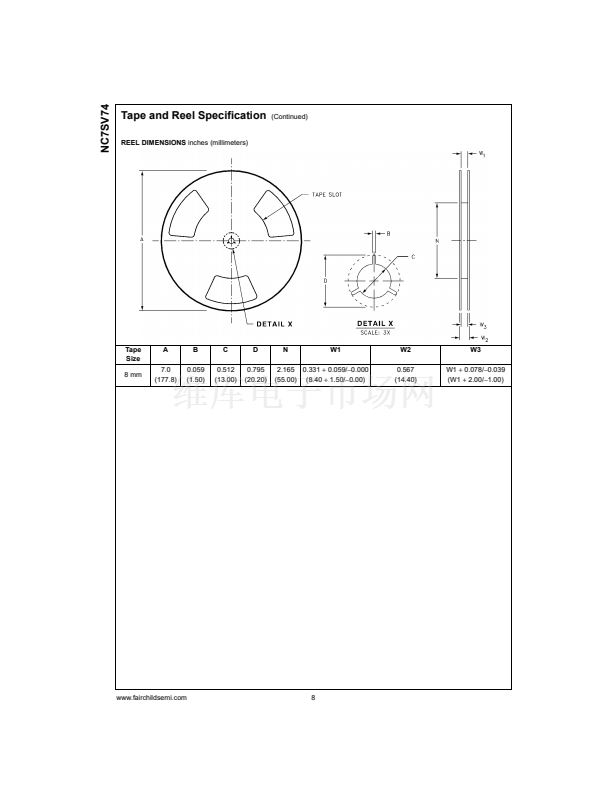

Supplied As
Number Top Mark

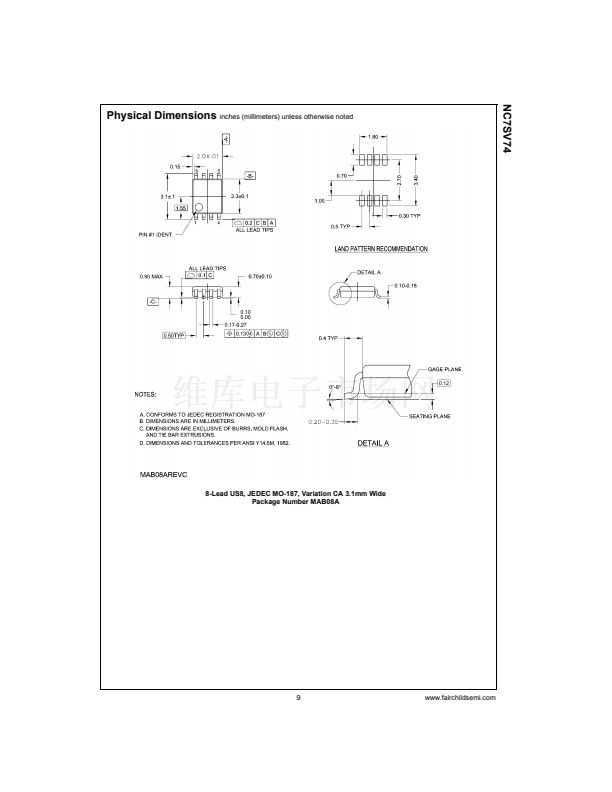

8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel
8-Lead MicroPak, 1.6 mm Wide
5k Units on Tape and Reel
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9)/(P
device
)/24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚?is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak錚?and Quiet Series錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2004 Fairchild Semiconductor Corporation
DS500819
www.fairchildsemi.com

NC7SV74K8X 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 觸發器

  • 7SV

  • 設置（預設）和復位

  • D 型

  • 差分

  • 1

  • 1

  • 50MHz

  • 13ns

  • 正邊沿

  • 24mA，24mA

  • 0.9 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 8-VFSOP（0.091"，2.30mm 寬）

  • 帶卷 (TR)

  • NC7SV74K8X-NDNC7SV74K8XTR

NC7SV74K8X相關型號PDF文件下載

  • 型號
    版本
    描述
    廠商
    下載
  • 英文版
    TinyLogic HS 2-Input NAND Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input NAND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input NOR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input NOR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS Inverter
    FAIRCHILD
  • 英文版
    TinyLogic HS Inverter
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input AND Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input AND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS Inverter with Schmitt Trigger Input
    FAIRCHILD
  • 英文版
    TinyLogic HS Inverter with Schmitt Trigger Input
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input OR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input OR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input Exclusive-OR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input Exclusive-OR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic. ULP Universal Configurable 2-Input Logic Gates
    FAIRCHILD
  • 英文版
    TinyLogic. ULP Universal Configurable 2-Input Logic Gates
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP 2-Input NAND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP 2-Input NOR Gate
    FAIRCHILD
  • 英文版
    TinyLogic ULP 2-Input NOR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP Inverter
    FAIRCHILD
