NC7SV57L6X Datasheet

  • NC7SV57L6X

  • TinyLogic. ULP-A Universal Configurable 2-Input Logic Gates

  • 11頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NC7SV57 鈥?NC7SV58 TinyLogic錚?ULP-A Universal Configurable 2-Input Logic Gates
June 2002
Revised January 2003
NC7SV57 鈥?NC7SV58
TinyLogic
錚?/div>
ULP-A Universal Configurable
2-Input Logic Gates
General Description
The NC7SV57 and NC7SV58 are universal configurable
2-input logic gates from Fairchild鈥檚 Ultra Low Power
(ULP-A) Series of TinyLogic
錚?/div>
. ULP-A is ideal for applica-
tions that require extreme high speed, high drive and low
power. This product is designed for a wide low voltage
operating range (0.9V to 3.6V V
CC
) and applications that
require more drive and speed than the TinyLogic ULP
series, but still offer best in class low power operation.
Each device is capable of being configured for 1 of 5
unique 2-input logic functions. Any possible 2-input combi-
natorial logic function can be implemented as shown in the

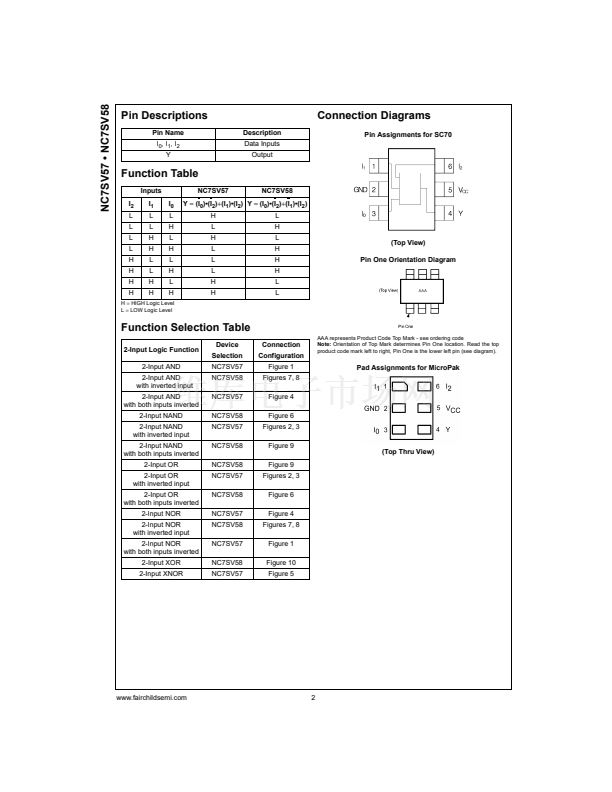

Function Selection Table. Device functionality is selected

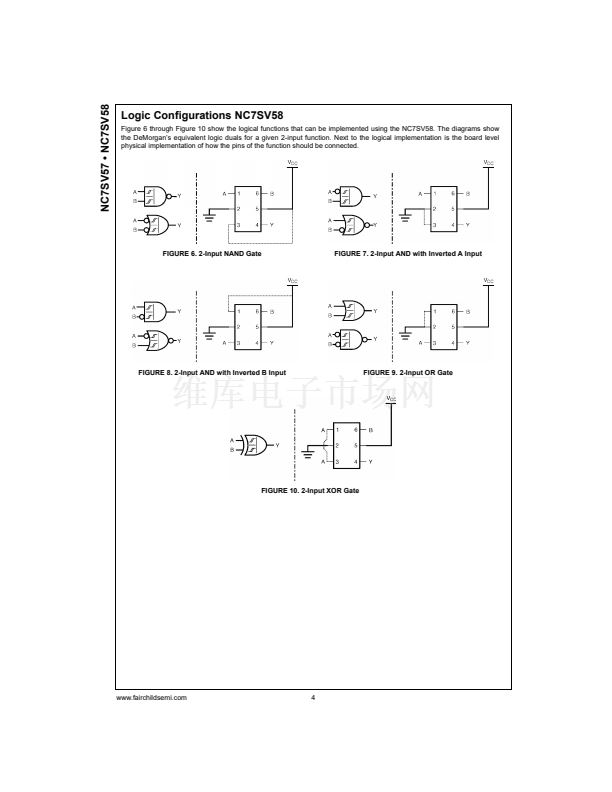

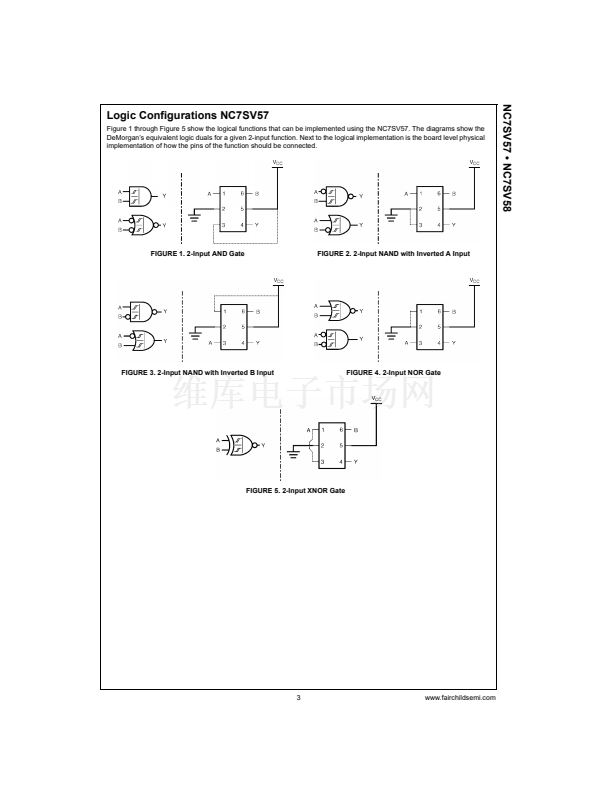

by how the device is wired at the board level. Figure 1
through Figure 10 illustrate how to connect the NC7SV57
and NC7SV58 respectively for the desired logic function.
All inputs have been implemented with hysteresis.
The NC7SV57 and NC7SV58 are uniquely designed for
optimized power and speed, and are fabricated with an
advanced CMOS technology to achieve high-speed opera-
tion while maintaining low CMOS power dissipation.
Features
s
0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/O鈥檚 at V
CC
from 0.9V to 3.6V
s
Extremely High Speed t
PD
2.5 ns typ for 2.7V to 3.6V V
CC
3.1 ns typ for 2.3V to 2.7V V
CC
4.0 ns typ for 1.65V to 1.95V V
CC
6.0 ns typ for 1.4V to 1.6V V
CC
8.0 ns typ for 1.1V to 1.3V V
CC
23.0 ns typ for 0.9V V
CC
s
Power-Off high impedance inputs and outputs
s
High Static Drive (I
OH
/I
OL
)
鹵
24 mA @ 3.00V V
CC
鹵
18 mA @ 2.30V V
CC
鹵
6 mA
鹵
4 mA
鹵
2 mA
@ 1.65V V
CC
@ 1.4V V
CC
@ 1.1V V
CC
鹵
0.1 mA @ 0.9V V
CC
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Ultra small MicroPak
錚?/div>
leadfree package
s
Ultra low Dynamic Power
Ordering Code:
Order Number
NC7SV57P6X
NC7SV57L6X
NC7SV58P6X
NC7SV58L6X
Package
Number
MAA06A
MAC06A
MAA06A
MAC06A
Product Code
Top Mark
V57
H3
V58
H4
Package Description
6-Lead SC70, EIAJ SC88, 1.25mm Wide
6-Lead MicroPak, 1.0mm Wide
6-Lead SC70, EIAJ SC88, 1.25mm Wide
6-Lead MicroPak, 1.0mm Wide
Supplied As
3k Units on Tape and Reel
5k Units on Tape and Reel
3k Units on Tape and Reel
5k Units on Tape and Reel
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9)/(P
device
)/24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚? MicroPak錚? and Quiet Series錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2003 Fairchild Semiconductor Corporation
DS500671
www.fairchildsemi.com

NC7SV57L6X 產品屬性

  • 5,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器 - 多功能，可配置

  • 7SV

  • 可配置多功能

  • 1

  • 2

  • 是

  • 單端

  • 24mA，24mA

  • 0.9 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 6-UFDFN

  • Micro6?（TSOP-6）

  • 帶卷 (TR)
