NC7SV05P5X Datasheet

  • NC7SV05P5X

  • TinyLogic ULP-A Inverter (Open Drain Output)

  • 8頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NC7SV05 TinyLogic錚?ULP-A Inverter (Open Drain Output)
August 2002
Revised March 2003
NC7SV05
TinyLogic
錚?/div>
ULP-A Inverter (Open Drain Output)
General Description
The NC7SV05 is a single inverter with open drain output
from Fairchild鈥檚 Ultra Low Power-A series of TinyLogic
錚?/div>
.
ULP-A is ideal for applications that require extreme high
speed, high drive and low power. This product is designed
for a wide low voltage operating range (0.9V to 3.6V V
CC
)
and applications that require more drive and speed than
the TinyLogic ULP series, but still offer best in class low
power operation.
The NC7SV05 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS
technology to achieve high-speed operation while main-
taining low CMOS power dissipation.
Features
s
0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/O鈥檚 at V
CC
from 0.9V to 3.6V
s
Extremely High Speed t
PD
1.0 ns typ for 2.7V to 3.6V V
CC
1.2 ns typ for 2.3V to 2.7V V
CC
2.0 ns typ for 1.65V to 1.95V V
CC
3.2 ns typ for 1.4V to 1.6V V
CC
6.0 ns typ for 1.1V to 1.3V V
CC
13.0 ns typ for 0.9V V
CC
s
Power-Off high impedance inputs and outputs
s
High Static Drive (I
OH
/I
OL
)
鹵
24 mA @ 3.00V V
CC
鹵
18 mA @ 2.30V V
CC
鹵
6 mA
鹵
4 mA
鹵
2 mA
@ 1.65V V
CC
@ 1.4V V
CC
@ 1.1V V
CC
鹵
0.1 mA @ 0.9V V
CC
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Ultra small MicroPak
錚?/div>
leadfree package
s
Ultra low dynamic power
Ordering Code:
Order Number
NC7SV05P5X
NC7SV05L6X
Package
Number
MAA05A
MAC06A
Product Code
Top Mark
V05
F9
Package Description
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
6-Lead MicroPak, 1.0mm Wide
Supplied As
3k Units on Tape and Reel
5k Units on Tape and Reel
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9)/(P
device
)/24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚?is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak錚? and Quiet Series錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2003 Fairchild Semiconductor Corporation
DS500605
www.fairchildsemi.com

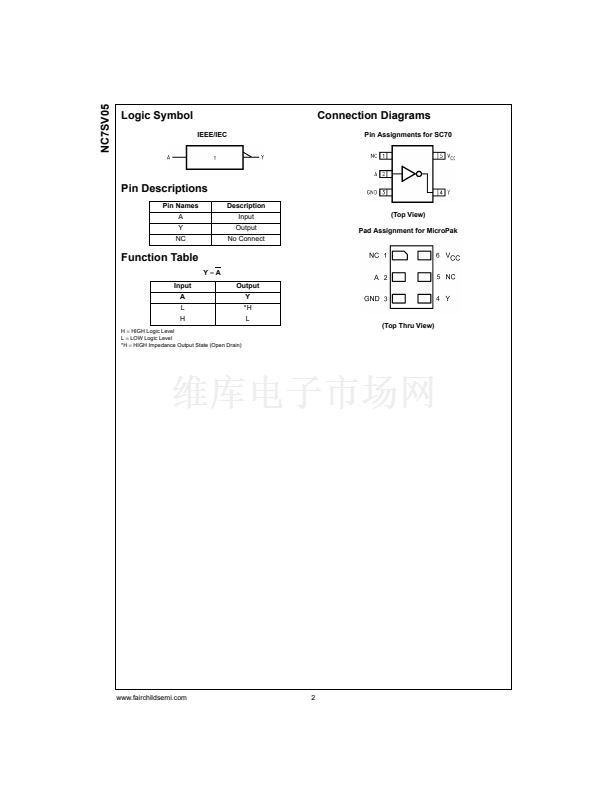

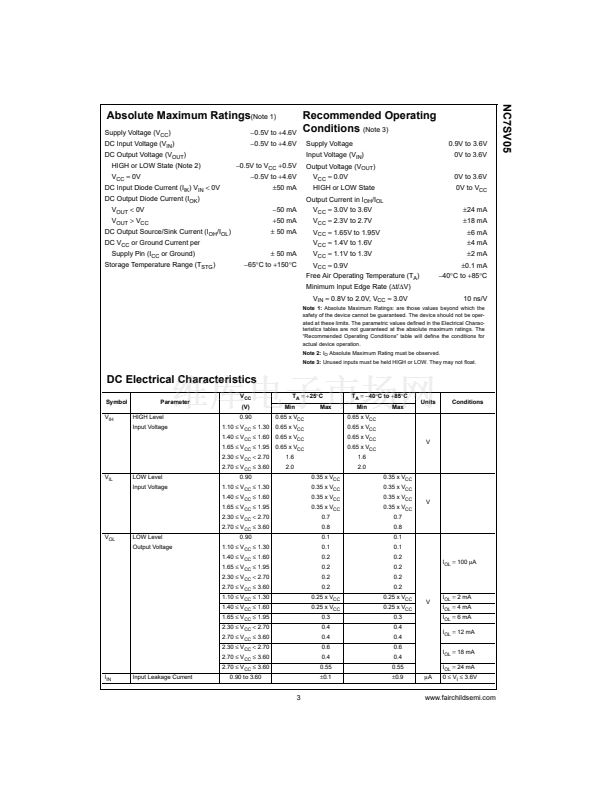

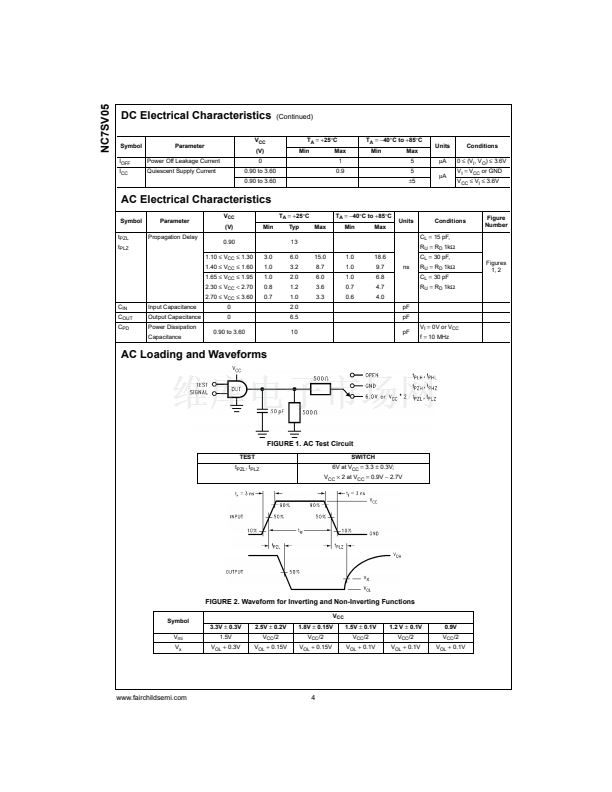

NC7SV05P5X 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 7SV

  • 逆變器，緩沖器

  • 1

  • 1

  • 開路漏極

  • 0.9 V ~ 3.6 V

  • 0.9µA

  • -，24mA

  • 0.7 V ~ 0.8 V

  • 1.6 V ~ 2 V

  • 3.3ns @ 2.7V ~ 3.6V，30pF

  • -40°C ~ 85°C

  • 表面貼裝

  • SC-70-5

  • 6-TSSOP（5 引線），SC-88A，SOT-353

  • 帶卷 (TR)

NC7SV05P5X相關型號PDF文件下載

  • 型號
    版本
    描述
    廠商
    下載
  • 英文版
    TinyLogic HS 2-Input NAND Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input NAND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input NOR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input NOR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS Inverter
    FAIRCHILD
  • 英文版
    TinyLogic HS Inverter
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input AND Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input AND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS Inverter with Schmitt Trigger Input
    FAIRCHILD
  • 英文版
    TinyLogic HS Inverter with Schmitt Trigger Input
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input OR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input OR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic HS 2-Input Exclusive-OR Gate
    FAIRCHILD
  • 英文版
    TinyLogic HS 2-Input Exclusive-OR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic. ULP Universal Configurable 2-Input Logic Gates
    FAIRCHILD
  • 英文版
    TinyLogic. ULP Universal Configurable 2-Input Logic Gates
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP 2-Input NAND Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP 2-Input NOR Gate
    FAIRCHILD
  • 英文版
    TinyLogic ULP 2-Input NOR Gate
    FAIRCHILD ...
  • 英文版
    TinyLogic ULP Inverter
    FAIRCHILD
