NC7SP08P5X Datasheet

  • NC7SP08P5X

  • TinyLogic ULP 2-Input AND Gate

  • 309.05KB

  • 9頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

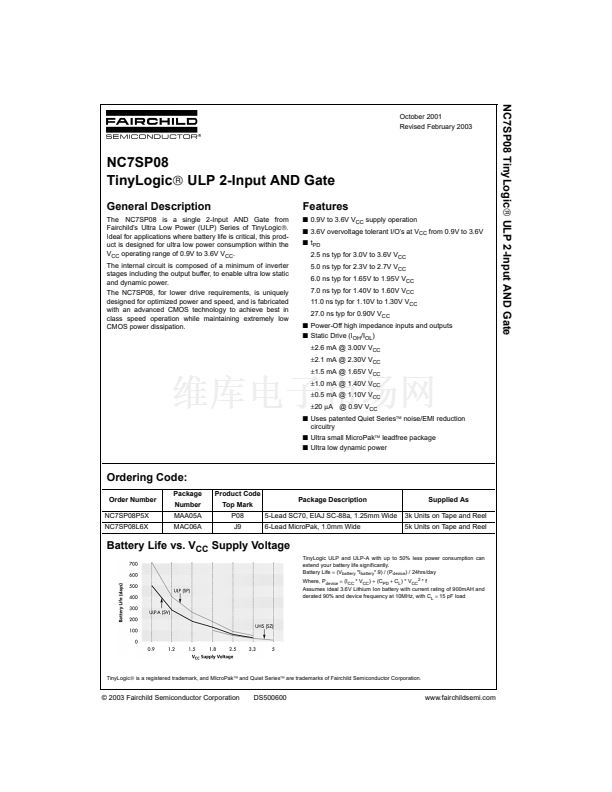

NC7SP08 TinyLogic錚?ULP 2-Input AND Gate
October 2001
Revised February 2003
NC7SP08
TinyLogic
錚?/div>
ULP 2-Input AND Gate
General Description
The NC7SP08 is a single 2-Input AND Gate from
Fairchild鈥檚 Ultra Low Power (ULP) Series of TinyLogic
錚?/div>
.
Ideal for applications where battery life is critical, this prod-
uct is designed for ultra low power consumption within the
V
CC
operating range of 0.9V to 3.6V V
CC
.
The internal circuit is composed of a minimum of inverter
stages including the output buffer, to enable ultra low static
and dynamic power.
The NC7SP08, for lower drive requirements, is uniquely
designed for optimized power and speed, and is fabricated
with an advanced CMOS technology to achieve best in
class speed operation while maintaining extremely low
CMOS power dissipation.
Features
s
0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/O鈥檚 at V
CC
from 0.9V to 3.6V
s
t
PD
2.5 ns typ for 3.0V to 3.6V V
CC
5.0 ns typ for 2.3V to 2.7V V
CC
6.0 ns typ for 1.65V to 1.95V V
CC
7.0 ns typ for 1.40V to 1.60V V
CC
11.0 ns typ for 1.10V to 1.30V V
CC
27.0 ns typ for 0.90V V
CC
s
Power-Off high impedance inputs and outputs
s
Static Drive (I
OH
/I
OL
)
鹵
2.6 mA @ 3.00V V
CC
鹵
2.1 mA @ 2.30V V
CC
鹵
1.5 mA @ 1.65V V
CC
鹵
1.0 mA @ 1.40V V
CC
鹵
0.5 mA @ 1.10V V
CC
鹵
20
碌
A @ 0.9V V
CC
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Ultra small MicroPak
錚?/div>
leadfree package
s
Ultra low dynamic power
Ordering Code:
Order Number
NC7SP08P5X
NC7SP08L6X
Package
Number
MAA05A
MAC06A
Product Code
Top Mark
P08
J9
Package Description

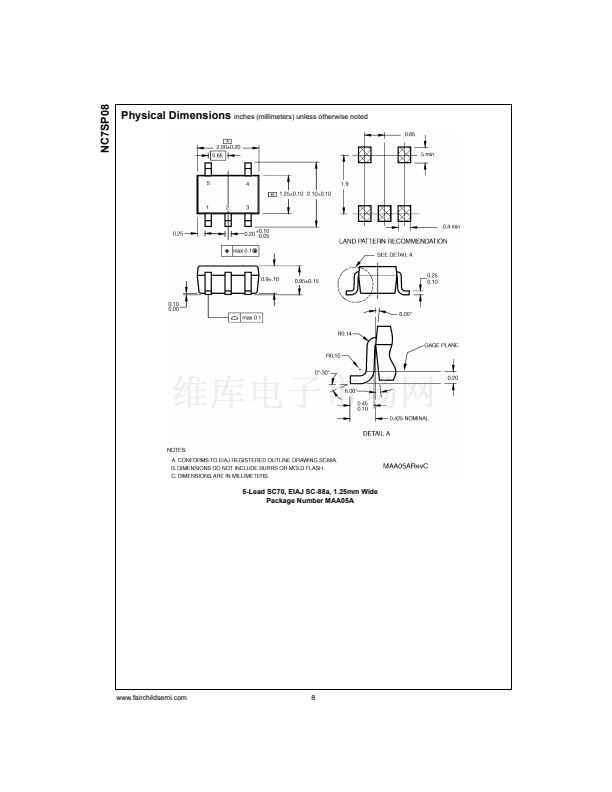

5-Lead SC70, EIAJ SC-88a, 1.25mm Wide

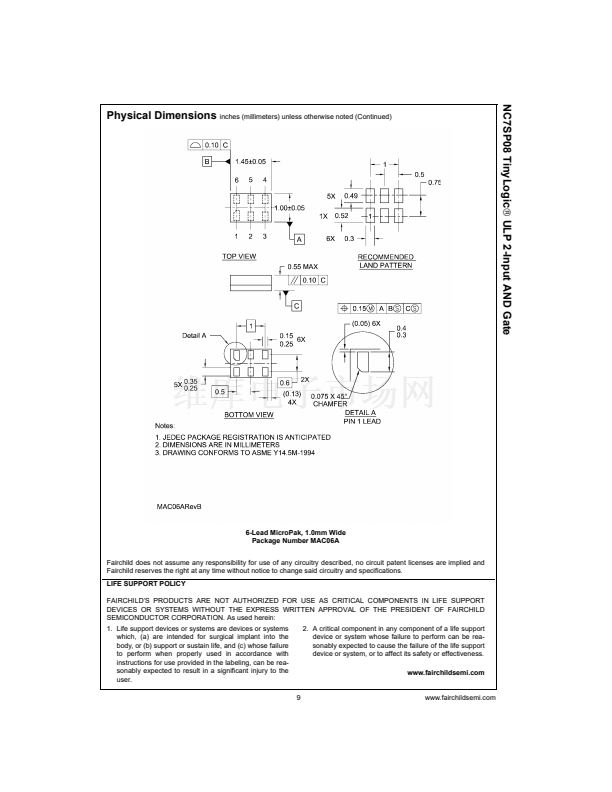

6-Lead MicroPak, 1.0mm Wide
Supplied As

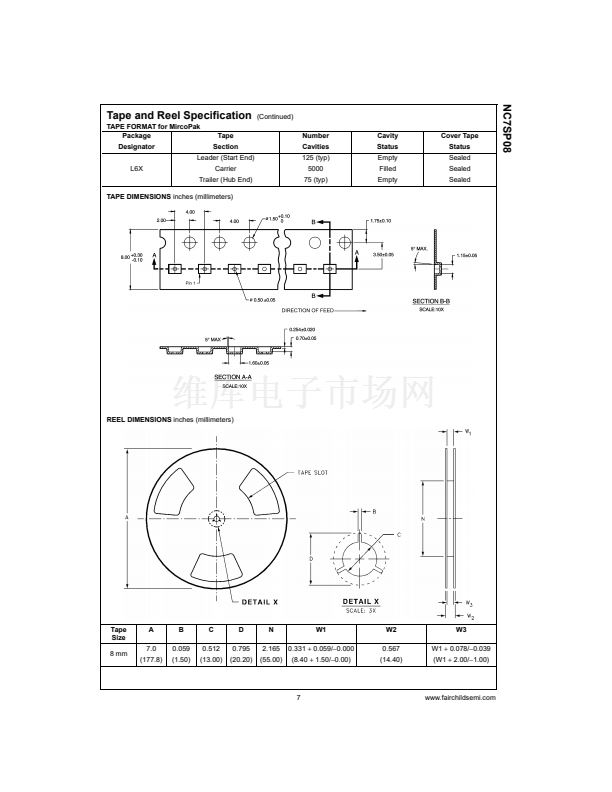

3k Units on Tape and Reel
5k Units on Tape and Reel
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9) / (P
device
) / 24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚?is a registered trademark, and MIcroPak錚?and Quiet Series錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2003 Fairchild Semiconductor Corporation
DS500600
www.fairchildsemi.com

NC7SP08P5X 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 7SP

  • 與門

  • 1

  • 2

  • -

  • 0.9 V ~ 3.6 V

  • 0.9µA

  • 2.6mA，2.6mA

  • 0.7 V ~ 0.9 V

  • 1.6 V ~ 2.1 V

  • 9.2ns @ 3V ~ 3.6V，30pF

  • -40°C ~ 85°C

  • 表面貼裝

  • SC-70-5

  • 6-TSSOP（5 引線），SC-88A，SOT-353

  • 帶卷 (TR)

  • NC7SP08P5X-NDNC7SP08P5XTR
