NC7NZ04K8X Datasheet

  • NC7NZ04K8X

  • TinyLogic UHS Inverter

  • 190.90KB

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

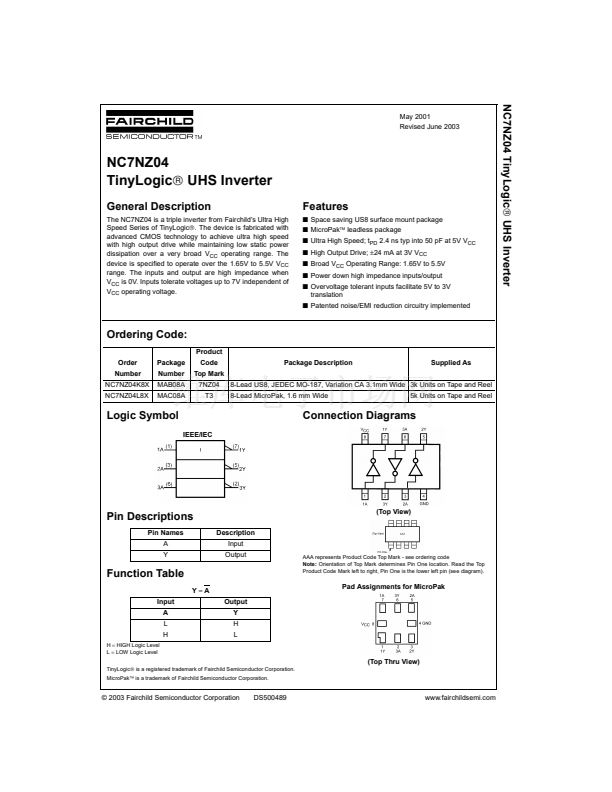

NC7NZ04 TinyLogic錚?UHS Inverter
May 2001
Revised June 2003
NC7NZ04
TinyLogic
錚?/div>
UHS Inverter
General Description
The NC7NZ04 is a triple inverter from Fairchild鈥檚 Ultra High
Speed Series of TinyLogic
錚?/div>
. The device is fabricated with
advanced CMOS technology to achieve ultra high speed
with high output drive while maintaining low static power
dissipation over a very broad V
CC
operating range. The
device is specified to operate over the 1.65V to 5.5V V
CC
range. The inputs and output are high impedance when
V
CC
is 0V. Inputs tolerate voltages up to 7V independent of
V
CC
operating voltage.
Features
s
Space saving US8 surface mount package
s
MicroPak
錚?/div>
leadless package
s
Ultra High Speed; t
PD
2.4 ns typ into 50 pF at 5V V
CC
s
High Output Drive;
鹵
24 mA at 3V V
CC
s
Broad V
CC
Operating Range: 1.65V to 5.5V
s
Power down high impedance inputs/output
s
Overvoltage tolerant inputs facilitate 5V to 3V
translation
s
Patented noise/EMI reduction circuitry implemented
Ordering Code:
Product
Order
Number
NC7NZ04K8X
NC7NZ04L8X
Package
Number
MAB08A
MAC08A
Code
Top Mark
7NZ04
T3
8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel
8-Lead MicroPak, 1.6 mm Wide
5k Units on Tape and Reel
Package Description
Supplied As
Logic Symbol
IEEE/IEC
Connection Diagrams
Pin Descriptions
Pin Names
A
Y
Description
Input
Output
(Top View)
Function Table
Y
=
A
Input
A
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
AAA represents Product Code Top Mark - see ordering code
Note:
Orientation of Top Mark determines Pin One location. Read the Top
Product Code Mark left to right, Pin One is the lower left pin (see diagram).
Pad Assignments for MicroPak
Output
Y
H
L
(Top Thru View)
TinyLogic錚?is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2003 Fairchild Semiconductor Corporation
DS500489
www.fairchildsemi.com

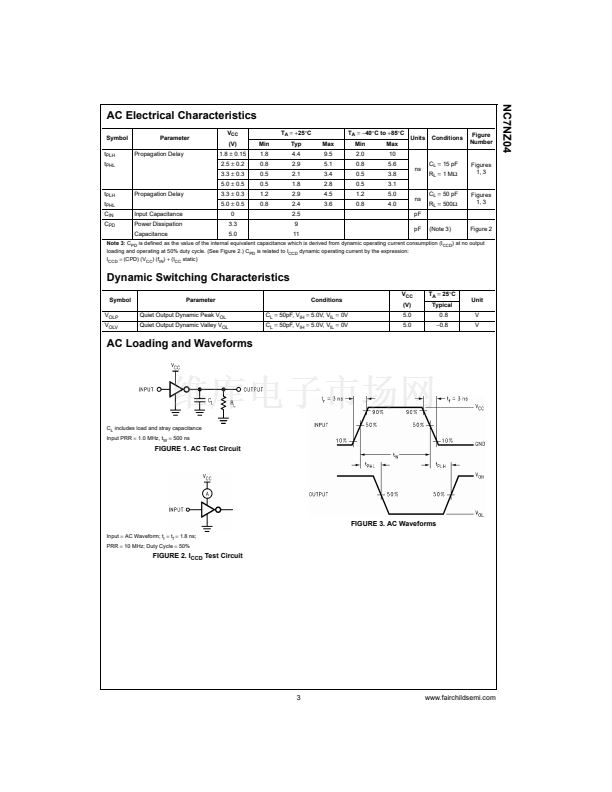

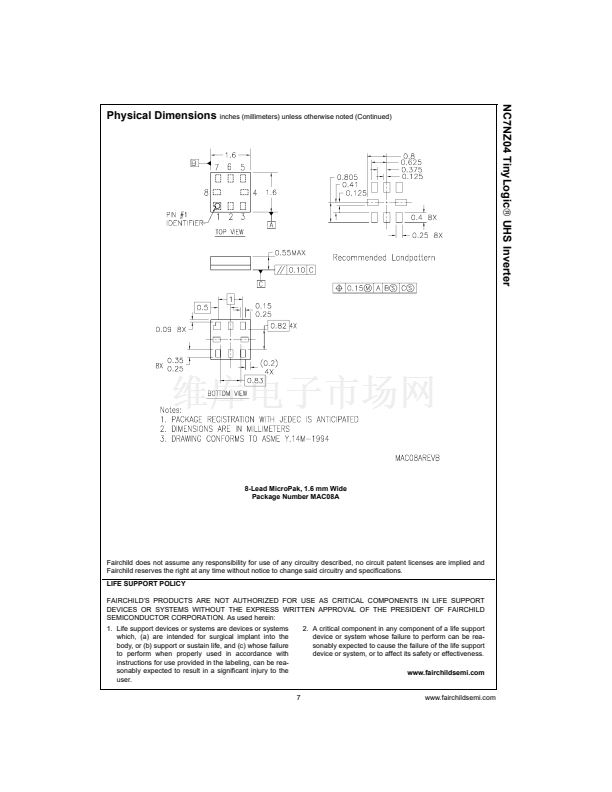

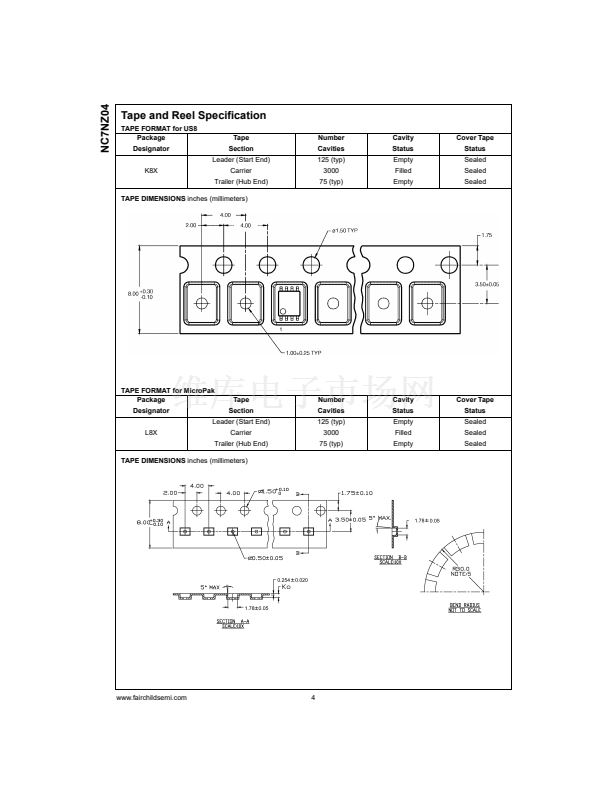

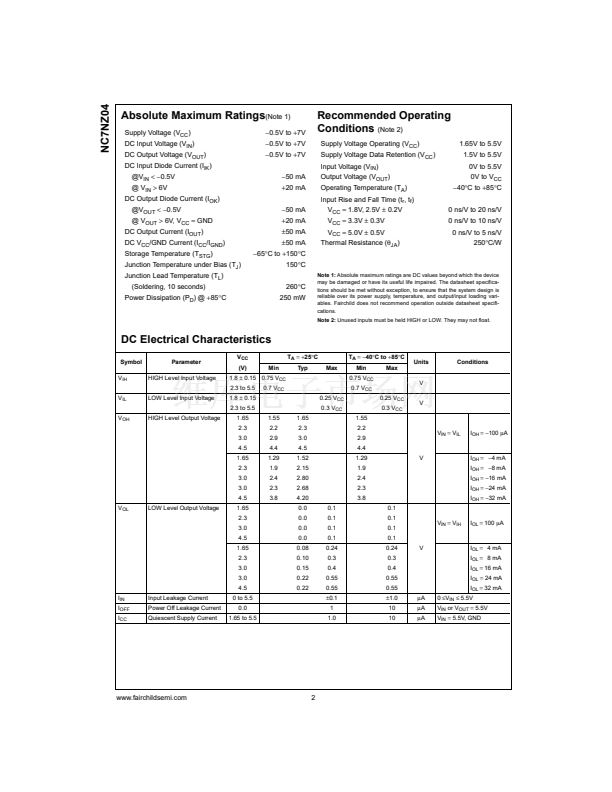

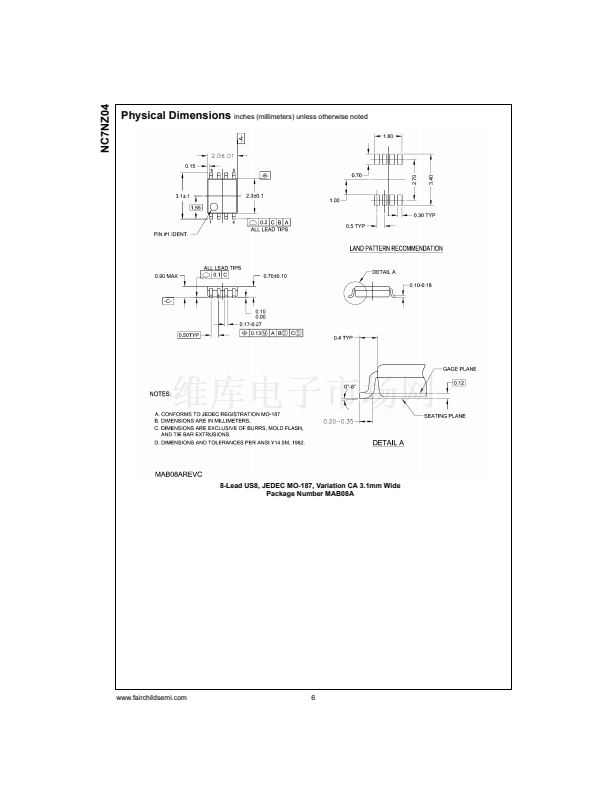

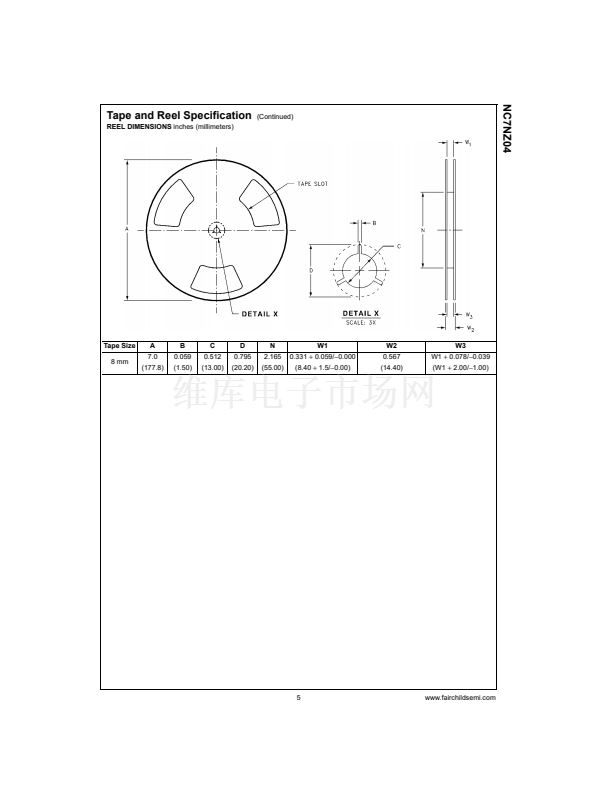

NC7NZ04K8X 產品屬性

  • 3,000

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 7NZ

  • 逆變器，緩沖器

  • 3

  • 1

  • -

  • 1.65 V ~ 5.5 V

  • 1µA

  • 32mA，32mA

  • -

  • -

  • 3.6ns @ 5V，50pF

  • -40°C ~ 85°C

  • 表面貼裝

  • US8

  • 8-VFSOP（0.091"，2.30mm 寬）

  • 帶卷 (TR)

  • NC7NZ04K8X-NDNC7NZ04K8XTR
