MZP4736A Datasheet

  • MZP4736A

  • 3 Watt DO-41 Surmetic 30 Zener Voltage Regulators

  • 61.71KB

  • 8頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MZP4729A Series
3 Watt DO-41 SurmeticE 30
Zener Voltage Regulators
This is a complete series of 3 Watt Zener diodes with limits and
excellent operating characteristics that reflect the superior capabilities
of silicon鈥搊xide passivated junctions. All this in an axial鈥搇ead,
transfer鈥搈olded plastic package that offers protection in all common
environmental conditions.
Specification Features:
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Zener Voltage Range 鈥?3.6 V to 30 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Surge Rating of 98 W @ 1 ms
Maximum Limits Guaranteed on up to Six Electrical Parameters
Package No Larger than the Conventional 1 Watt Package
Cathode
Anode
Mechanical Characteristics:
CASE:
Void free, transfer鈥搈olded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:
AXIAL LEAD
CASE 59
PLASTIC
230擄C, 1/16鈥?from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band
MOUNTING POSITION:
Any

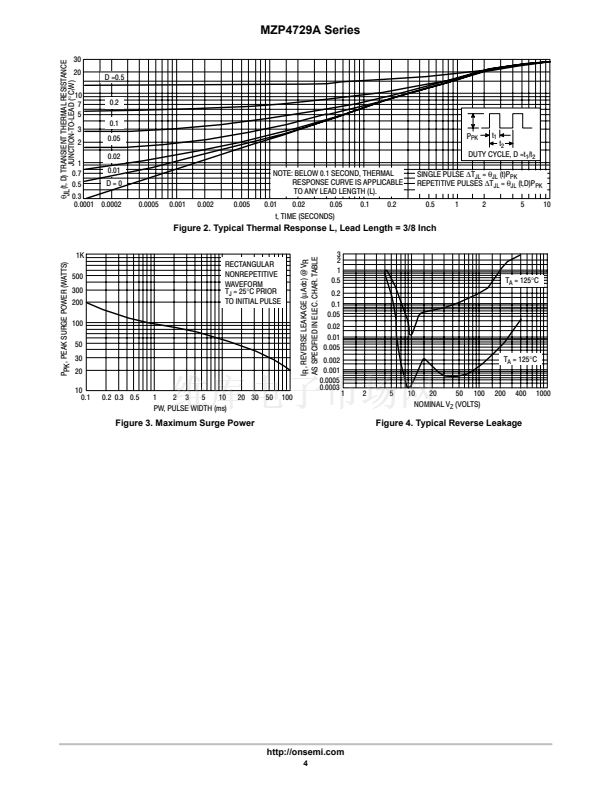

MAXIMUM RATINGS
Rating
Max. Steady State Power Dissipation
@ T
L
= 75擄C, Lead Length = 3/8鈥?/div>
Derate above 75擄C
Steady State Power Dissipation
@ T
A
= 50擄C
Derate above 50擄C
Operating and Storage
Temperature Range
Symbol
P
D
Value
3
24
P
D
1
6.67
T
J
, T
stg
鈥?5 to
+200
Unit
W
mW/擄C
W
mW/擄C
擄C
MARKING DIAGRAM
L
MZP4
7xxA
YYWW
L
= Assembly Location
MZP47xxA = Device Code
=

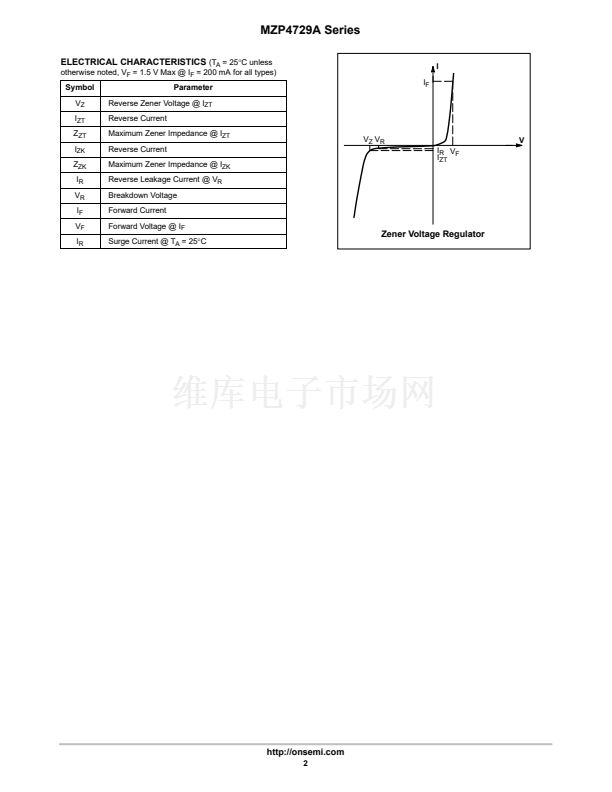

(See Table Next Page)
YY
= Year
WW
= Work Week

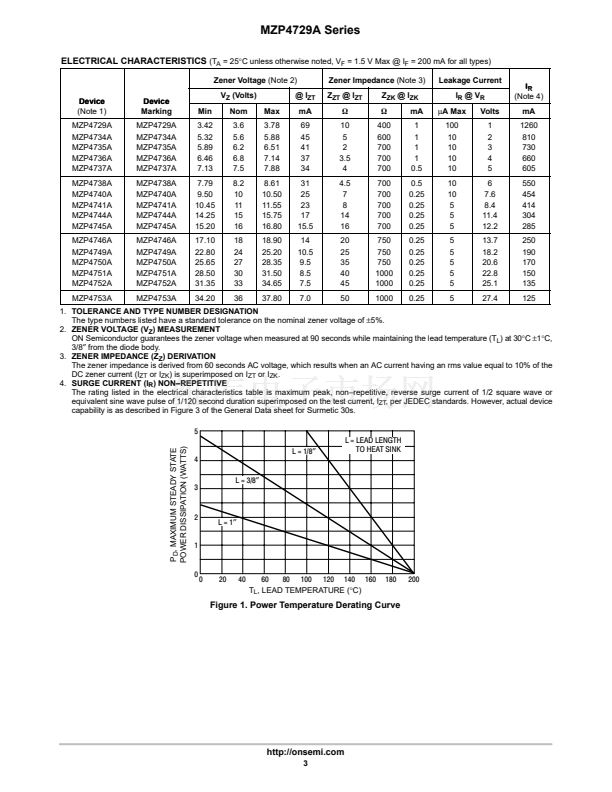

ORDERING INFORMATION
Device
MZP47xxA
MZP47xxARL
MZP47xxATA
MZP47xxARR1
{
MZP47xxARR2
}
{
}
Package
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Shipping
2000 Units/Box
6000/Tape & Reel
4000/Ammo Pack
2000/Tape & Reel
2000/Tape & Reel
Polarity band
up
with cathode lead off first
Polarity band
down
with cathode lead off first
漏
Semiconductor Components Industries, LLC, 2002
1
February, 2002 鈥?Rev. 2
Publication Order Number:
MZP4729A/D
