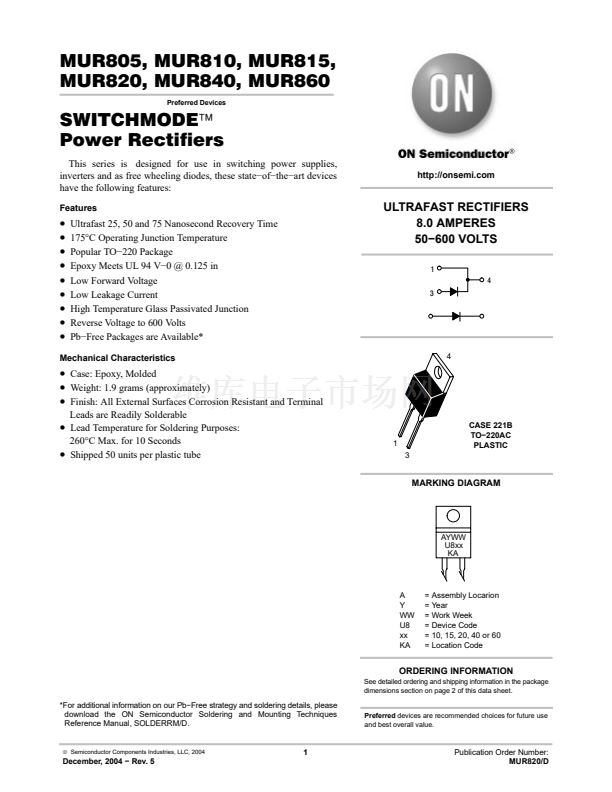

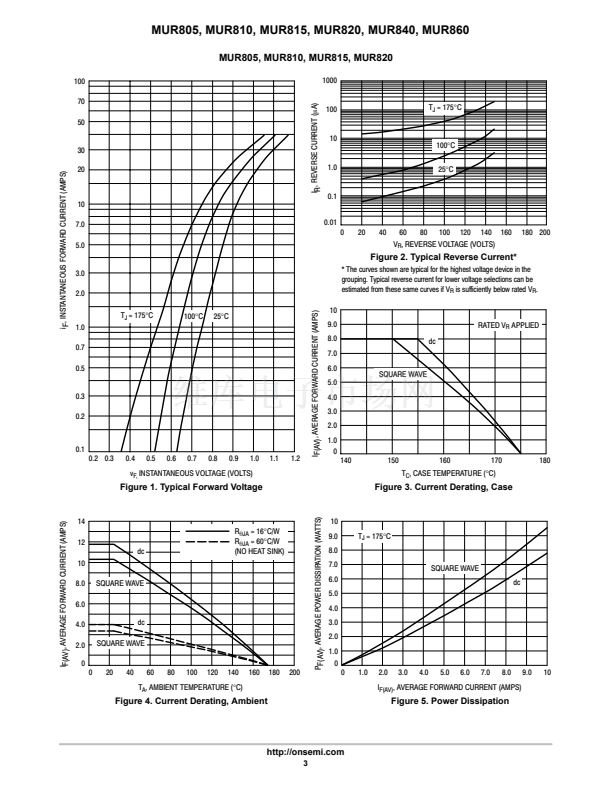

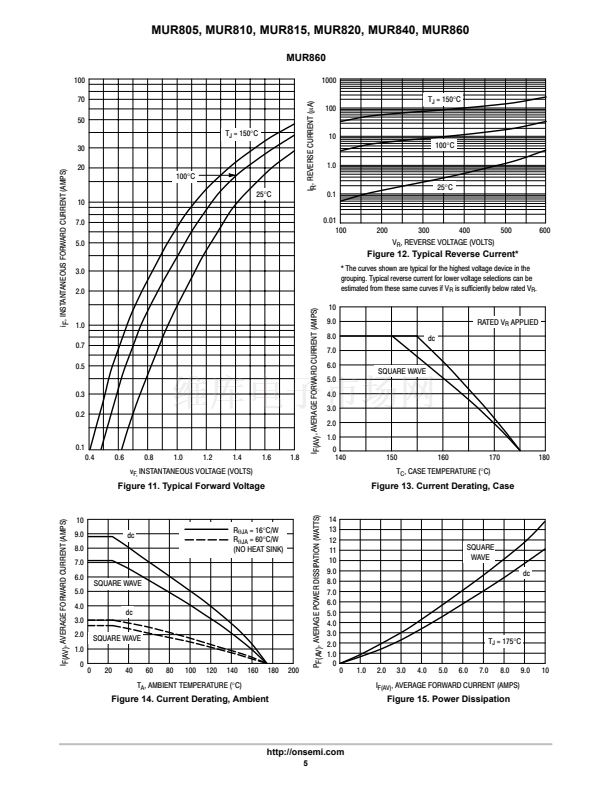

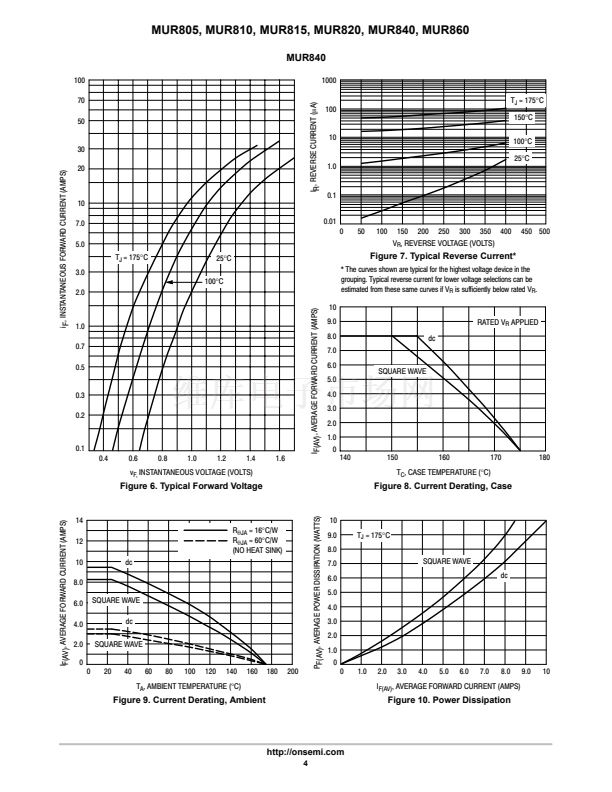

MUR805, MUR810, MUR815,

MUR820, MUR840, MUR860

Preferred Devices

SWITCHMODE鈩?/div>

Power Rectifiers

This series is designed for use in switching power supplies,

inverters and as free wheeling diodes, these state鈭抩f鈭抰he鈭抋rt devices

have the following features:

Features

http://onsemi.com

鈥?/div>

Ultrafast 25, 50 and 75 Nanosecond Recovery Time

175擄C Operating Junction Temperature

Popular TO鈭?20 Package

Epoxy Meets UL 94 V鈭? @ 0.125 in

Low Forward Voltage

Low Leakage Current

High Temperature Glass Passivated Junction

Reverse Voltage to 600 Volts

Pb鈭扚ree Packages are Available*

ULTRAFAST RECTIFIERS

8.0 AMPERES

50鈭?00 VOLTS

Mechanical Characteristics

鈥?/div>

Case: Epoxy, Molded

鈥?/div>

Weight: 1.9 grams (approximately)

鈥?/div>

Finish: All External Surfaces Corrosion Resistant and Terminal

Leads are Readily Solderable

鈥?/div>

Lead Temperature for Soldering Purposes:

260擄C Max. for 10 Seconds

鈥?/div>

Shipped 50 units per plastic tube

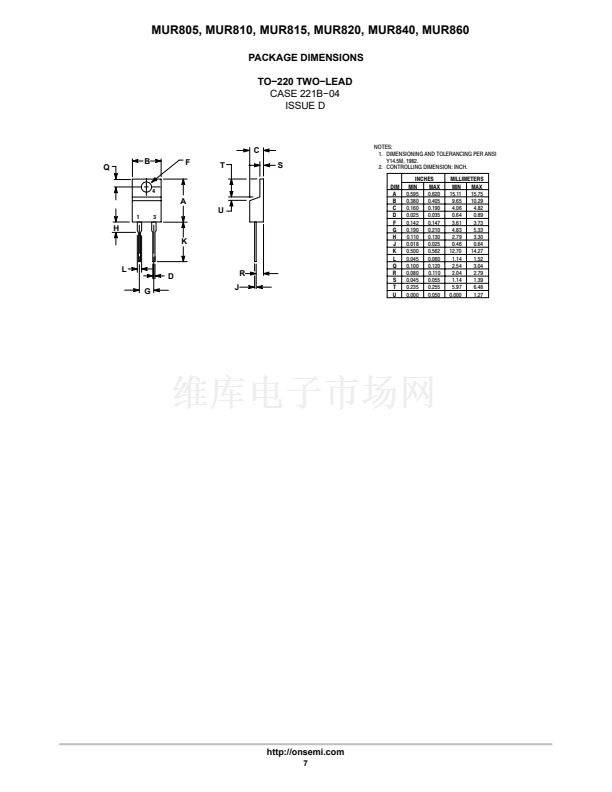

CASE 221B

TO鈭?20AC

PLASTIC

MARKING DIAGRAM

AYWW

U8xx

= Assembly Locarion

= Year

= Work Week

= Device Code

= 10, 15, 20, 40 or 60

= Location Code

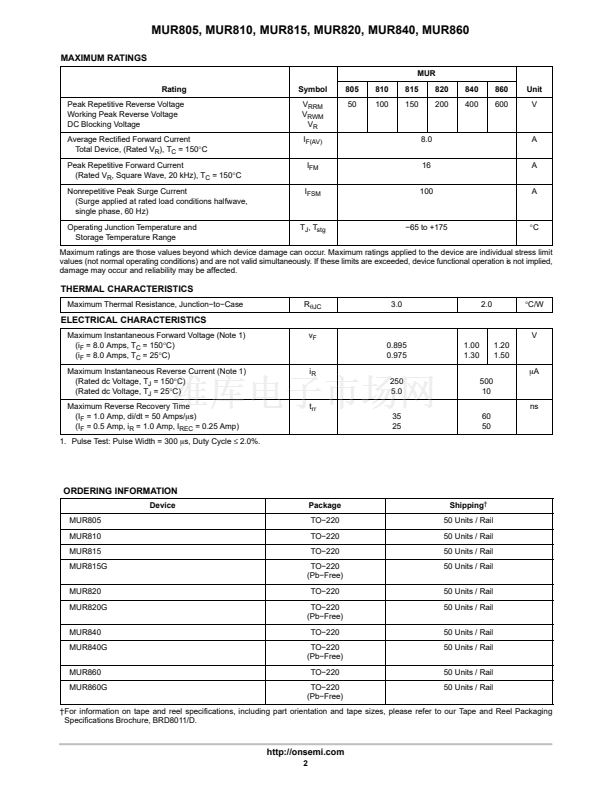

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

*For additional information on our Pb鈭扚ree strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques

Reference Manual, SOLDERRM/D.

Preferred

devices are recommended choices for future use

and best overall value.

漏

Semiconductor Components Industries, LLC, 2004

December, 2004 鈭?Rev. 5

Publication Order Number:

MUR820/D

標準包裝
50
類別
分離式半導體產品
家庭
單二極管/整流器
系列
SWITCHMODE™
二極管類型
標準
電壓 - (Vr)（最大）
600V
電流 - 平均整流 (Io)
8A
電壓 - 在 If 時為正向 (Vf)（最大）
1.5V @ 8A
速度
快速恢復 = 200mA（Io）
反向恢復時間
60ns
電流 - 在 Vr 時反向漏電
10µA @ 600V
電容@ Vr, F
-
安裝類型
通孔
封裝/外殼
TO-220-2
供應商設備封裝
TO-220-2
包裝
管件
工具箱
RECTO220A-KIT-ND - KIT RECTIFIER TO-220 DESIGN
其它名稱
MUR860OS
